제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ABB Jokab
	Product Type	Emergency Stop Push Button
	Mount Type	Panel Mount
	Cutout Diameter	32.2mm
	Contact Configuration	1 NO
	Push Button Actuation	Reset
	Illuminated	Yes
	Series	Smile 12 RF
	IP Rating	IP65
	Terminal Type	M12 Connector
	Depth	36mm
	Length	36mm
	Standards/Approvals	Conflict Minerals Reporting Template (CMRT)), Toxic Substances Control Act - TSCA, RoHS, CSA, REACH Declaration
	Hazardous Area Certification	NO
	Width	0.04m

	모두 선택
	브랜드 ABB Jokab
	Product Type Emergency Stop Push Button
	Mount Type Panel Mount
	Cutout Diameter 32.2mm
	Contact Configuration 1 NO
	Push Button Actuation Reset
	Illuminated Yes
	Series Smile 12 RF
	IP Rating IP65
	Terminal Type M12 Connector
	Depth 36mm
	Length 36mm
	Standards/Approvals Conflict Minerals Reporting Template (CMRT)), Toxic Substances Control Act - TSCA, RoHS, CSA, REACH Declaration
	Hazardous Area Certification NO
	Width 0.04m

Datasheet

COO (Country of Origin):: DE

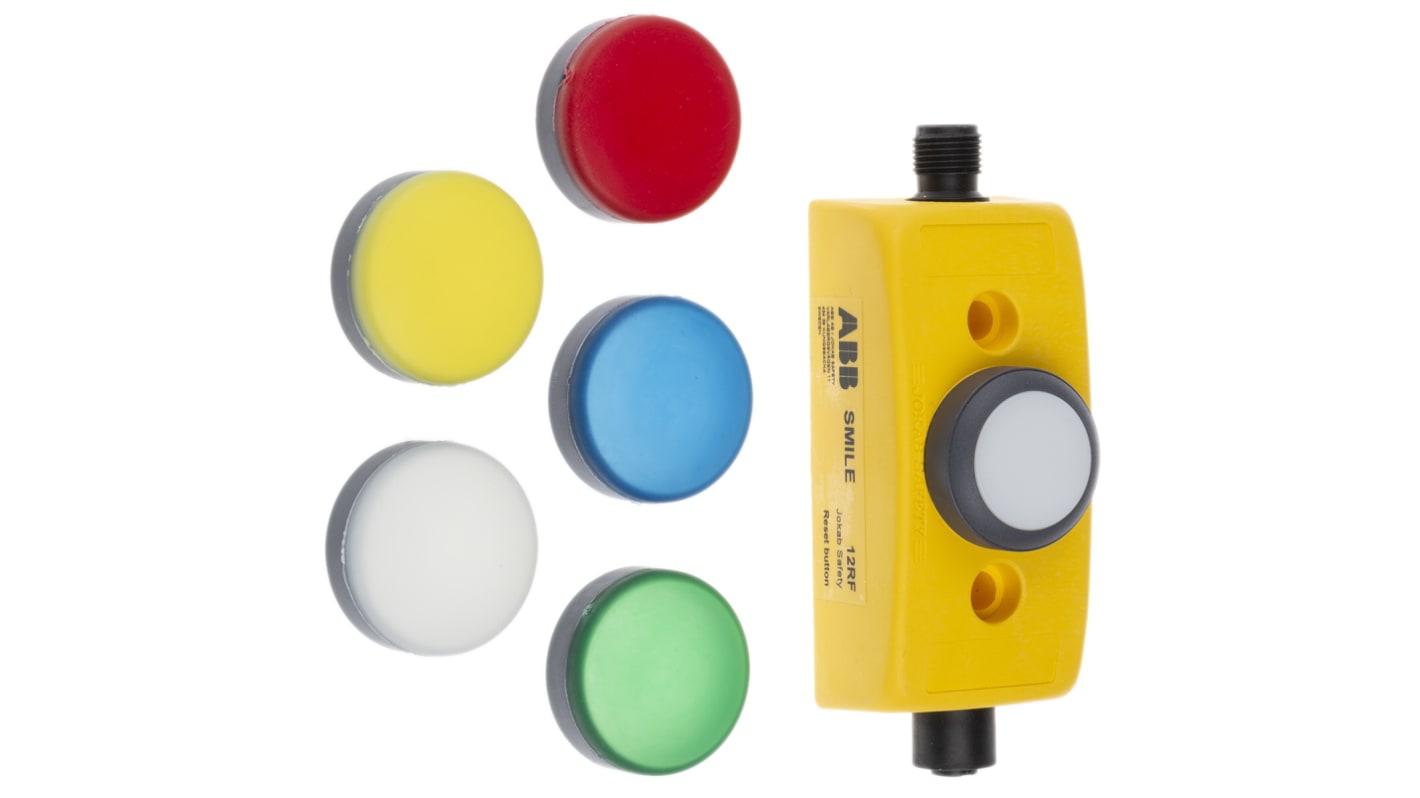

ABB Smile 12 RF Series Emergency Stop Push Button, 32.2mm Cut-out Diameter, IP65 - 2TLA030053R2600 Smile 12 RF M12-5

This emergency stop push button provides an accessible means to interrupt machinery and processes in industrial control panels. Designed for panel mounting, it offers an illuminated actuation and a reset function to restore operations after intervention. The unit connects via an M12 connector and is rated for ingress protection in dusty and wet conditions suitable for many production environments.

Features and Benefits:

• IP65 enclosure prevents dust and water ingress, maintaining uptime
• Illuminated actuator improves visibility in low-light areas
• 1 NO contact offers straightforward circuit interruption
• Resettable push button enables controlled restart after shutdown
• M12 connector simplifies installation and reduces wiring time
• Compact footprint supports space-limited panel designs

Applications

• Suitable for conveyor emergency shutdowns in assembly lines
• Ideal for machine-tool safety circuits in workshops
• Used with control cabinets requiring an illuminated E-stop
• Can be used for packaging machinery requiring panel-mount safety
• Suitable for factory automation where Compact emergency control is needed

What mounting arrangement is required for installation?

The device is intended for panel-mount installation and requires a 32.2mm cut-out to secure the control to the panel.

How does the electrical Interface connect to control systems?

The unit uses an M12 connector for its terminals, enabling a standardised plug-in connection to machine wiring looms.

What approvals and substance declarations accompany the product?

It is supplied with documentation covering CMRT, TSCA, RoHS, CSA and REACH declarations for regulatory and material reporting.

What physical depth should be allowed behind the panel?

Installers should allow for a rear clearance of 36mm to accommodate the body and connector.

Is the device suitable for hazardous-area certification?

The product carries no hazardous-area certification and should not be used where such certification is required.

ABB Jokab Smile 12 RF Series Reset Illuminated Emergency Stop Push Button, Panel Mount, 32.2 mm Cutout, 1 NO, IP65
