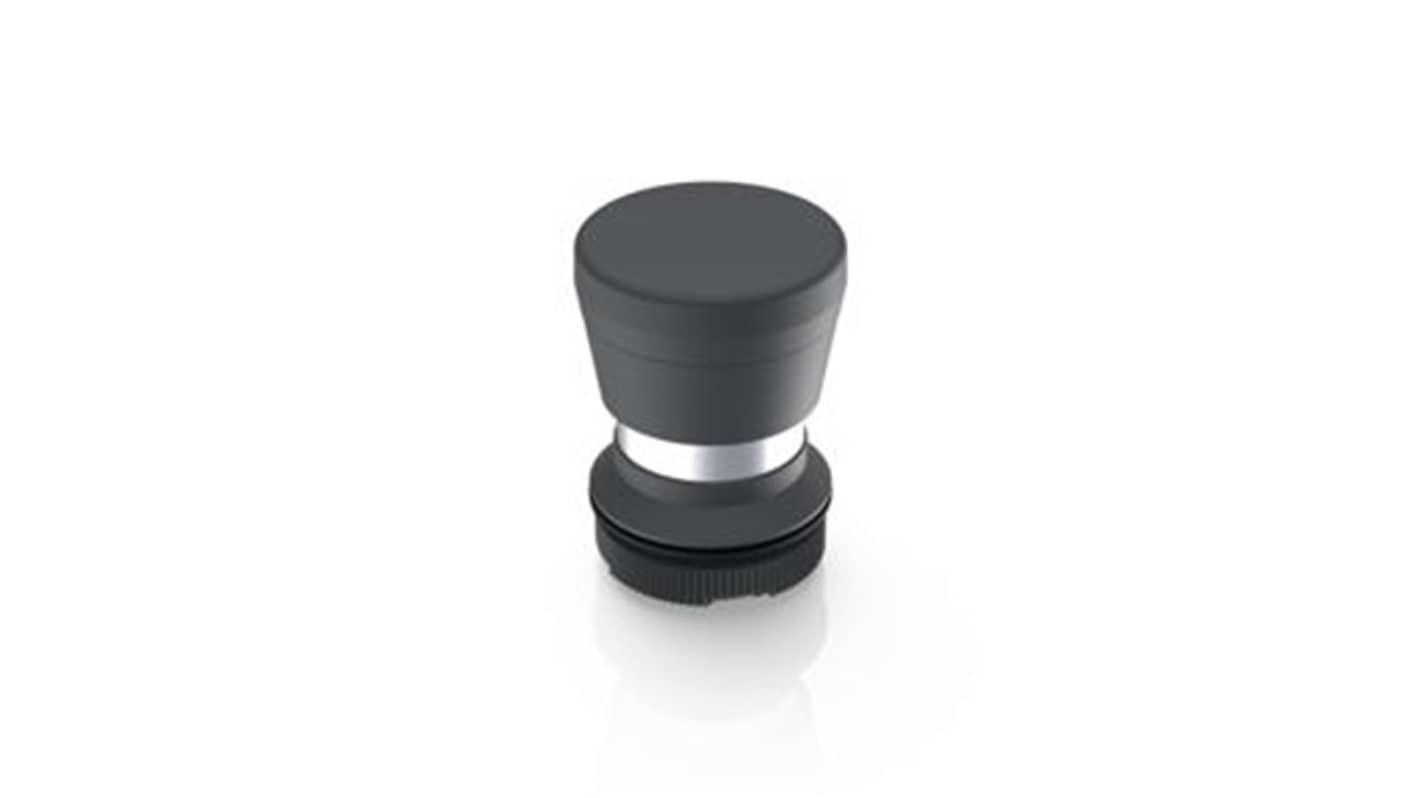

RAFI RAFIX 22 FS Series Latching Emergency Stop Push Button, PCB, 22.3 mm Cutout, DPST, IP65
- RS 제품 번호:
- 524-601
- 제조사 부품 번호:
- 1.30.276.601/0000
- 제조업체:
- RAFI
Subtotal (1 pack of 2 units)*
₩85,040.00
일시적 품절
- 2027년 3월 19일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
팩 | 한팩당 | 한팩당* |
|---|---|---|
| 1 + | ₩85,040.00 | ₩42,520.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 524-601
- 제조사 부품 번호:
- 1.30.276.601/0000
- 제조업체:
- RAFI
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RAFI | |
| Mount Type | PCB | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 22.3mm | |
| Contact Configuration | DPST | |
| Push Button Actuation | Latching | |
| Illuminated | No | |
| Series | RAFIX 22 FS | |
| IP Rating | IP65 | |
| Colour | Black | |
| Contact DC Voltage | 35V dc | |
| Contact Current | 100mA | |
| Contact AC Voltage | 250V ac | |
| Depth | 42.1mm | |
| Standards/Approvals | RoHS Compliant, IEC 60068-2-30, IEC 60068-2-33, REACH Compliant, DIN EN 60529, IEC 60068-2-14, IEC 60068-2-78 | |
| Head Diameter | 29.8mm | |
| Length | 29.8mm | |
| Hazardous Area Certification | CE | |
| Width | 29.8mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RAFI | ||
Mount Type PCB | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 22.3mm | ||
Contact Configuration DPST | ||
Push Button Actuation Latching | ||
Illuminated No | ||
Series RAFIX 22 FS | ||
IP Rating IP65 | ||
Colour Black | ||
Contact DC Voltage 35V dc | ||
Contact Current 100mA | ||
Contact AC Voltage 250V ac | ||
Depth 42.1mm | ||
Standards/Approvals RoHS Compliant, IEC 60068-2-30, IEC 60068-2-33, REACH Compliant, DIN EN 60529, IEC 60068-2-14, IEC 60068-2-78 | ||
Head Diameter 29.8mm | ||
Length 29.8mm | ||
Hazardous Area Certification CE | ||
Width 29.8mm | ||
- COO (Country of Origin):
- HU
The RAFI Mushroom Pushbutton is a modular and versatile control device suitable for fields like electrical engineering, vehicle construction, and industrial robotics. It features a mushroom head, and a low mounting depth, with connection options for printed circuit boards or plug-in connectors. Its modular design allows seamless integration with appropriate switching elements for reliable operation.
Black colour of mushroom
latching function
Round Collar shape
IP65 protection
