RAFI LUMOTAST 16 Series Latching Emergency Stop Push Button, PCB, 16.2 mm Cutout, 1 NO/2 NC, IP67, IP65

모든 Emergency Stop Push Buttons 열람하기

Subtotal (1 unit)*

₩75,020.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 23 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩75,020.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
524-024
제조사 부품 번호:
1.15.213.003/0000
제조업체:
RAFI
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RAFI

Mount Type

PCB

Product Type

Emergency Stop Push Button

Cutout Diameter

16.2mm

Contact Configuration

1 NO/2 NC

Push Button Actuation

Latching

Illuminated

No

Series

LUMOTAST 16

IP Rating

IP67, IP65

Colour

Red, Yellow

Terminal Type

2.8 x 0.5 mm Flat Quick-Connect Terminal

Contact Current

2A

Contact DC Voltage

35V dc

Number of Auxiliary Contacts

3

Contact AC Voltage

250V ac

Depth

40.6mm

Standards/Approvals

REACH Compliant, RoHS Compliant, IEC 60068-2-27, IEC 60068-2-30

Length

29.6mm

Hazardous Area Certification

UL

Head Diameter

29.6mm

Width

29.6mm

COO (Country of Origin):
DE

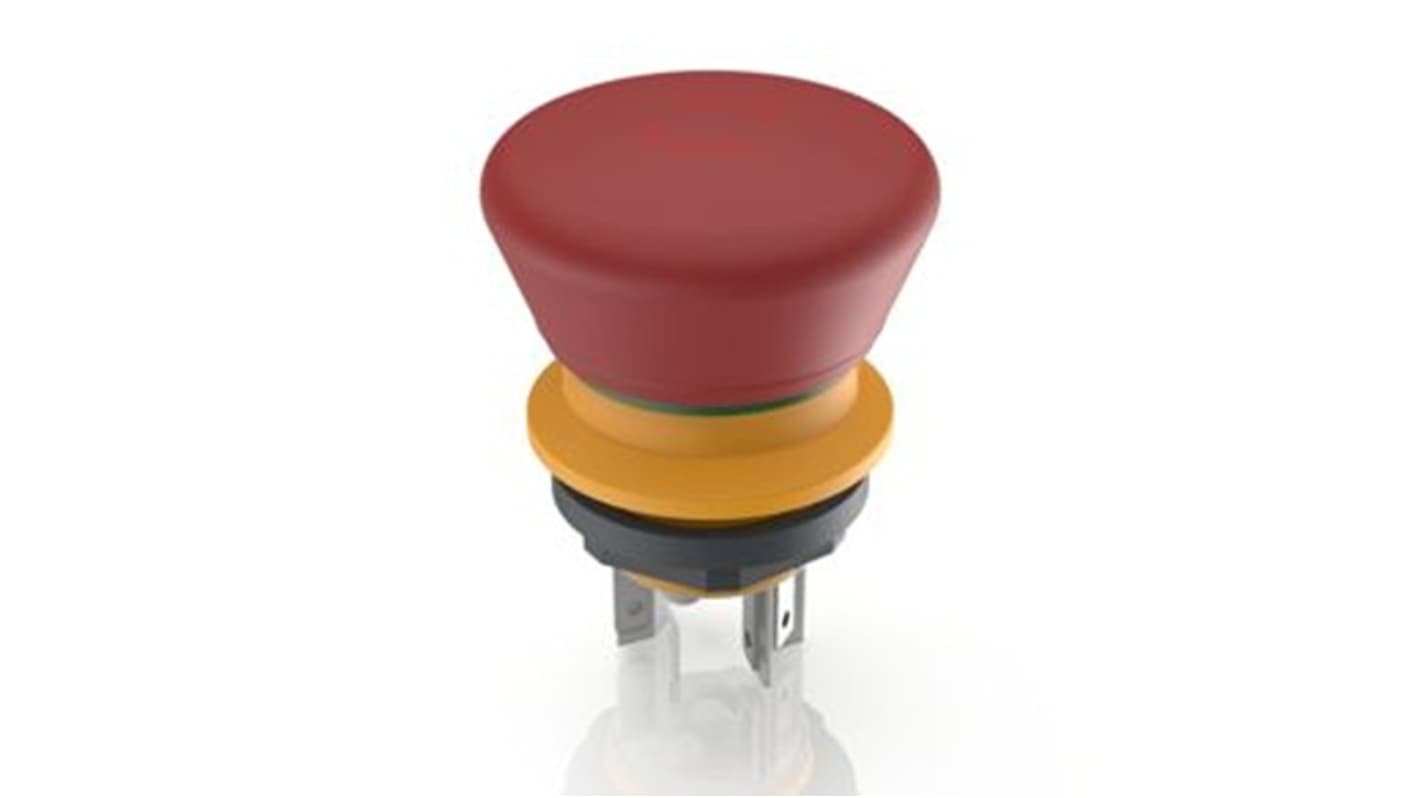

The RAFI Emergency Stop button designed for applications in measurement-control-regulation, mechanical engineering, and vehicle construction. It features a mushroom head with arrows, quick-connect terminals, making it ideal for space-constrained setups. With water jet protection, compliance with DIN EN ISO 13850, and reliable mechanical protection against unauthorized or accidental actuation, it ensures safety and functionality.

Red mushroom head

Red legending colour

IP65 and 1P67 protection

Contact function 2 NC plus 1 NO

Silver Contact material
