EAO 84-6331 Series Maintained Illuminated Emergency Stop Push Button, Panel Mount, 22.3 mm Cutout, 1 NO/1 NC, IP66,
- RS 제품 번호:
- 495-983
- 제조사 부품 번호:
- 84-6331.2B40
- 제조업체:
- EAO
Subtotal (1 unit)*
₩93,458.00
재고있음
- 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩93,458.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 495-983
- 제조사 부품 번호:
- 84-6331.2B40
- 제조업체:
- EAO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EAO | |
| Mount Type | Panel Mount | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 22.3mm | |
| Contact Configuration | 1 NO/1 NC | |
| Push Button Actuation | Maintained | |
| Housing Material | Plastic | |
| Illuminated | Yes | |
| Series | 84-6331 | |
| IP Rating | IP66, IP67, IP65 | |
| Colour | Black, Red | |
| Terminal Type | Flat Ribbon Cable | |
| Contact AC Voltage | 240V ac | |
| Number of Auxiliary Contacts | 2 | |
| Head Style | Mushroom Head | |
| Switch Configuration | 1 NO/1 NC | |
| Standards/Approvals | UL, RoHS, EN 60947-5-5, 2011/65/EC (RoHS), EN 60947-5-1, 2006/42/EC (MD), CCC, DIN EN ISO 13850, CE, REACH, EN IEC 60204 | |
| Hazardous Area Certification | No | |
| Head Diameter | 32mm | |
| Push Button Material | Plastic | |
| Safety Contacts | Yes (Forced Opening According to En 60947-5-5) | |
| 모두 선택 | ||
|---|---|---|
브랜드 EAO | ||
Mount Type Panel Mount | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 22.3mm | ||
Contact Configuration 1 NO/1 NC | ||
Push Button Actuation Maintained | ||
Housing Material Plastic | ||
Illuminated Yes | ||
Series 84-6331 | ||
IP Rating IP66, IP67, IP65 | ||
Colour Black, Red | ||
Terminal Type Flat Ribbon Cable | ||
Contact AC Voltage 240V ac | ||
Number of Auxiliary Contacts 2 | ||
Head Style Mushroom Head | ||
Switch Configuration 1 NO/1 NC | ||
Standards/Approvals UL, RoHS, EN 60947-5-5, 2011/65/EC (RoHS), EN 60947-5-1, 2006/42/EC (MD), CCC, DIN EN ISO 13850, CE, REACH, EN IEC 60204 | ||
Hazardous Area Certification No | ||
Head Diameter 32mm | ||
Push Button Material Plastic | ||
Safety Contacts Yes (Forced Opening According to En 60947-5-5) | ||
- COO (Country of Origin):
- CH

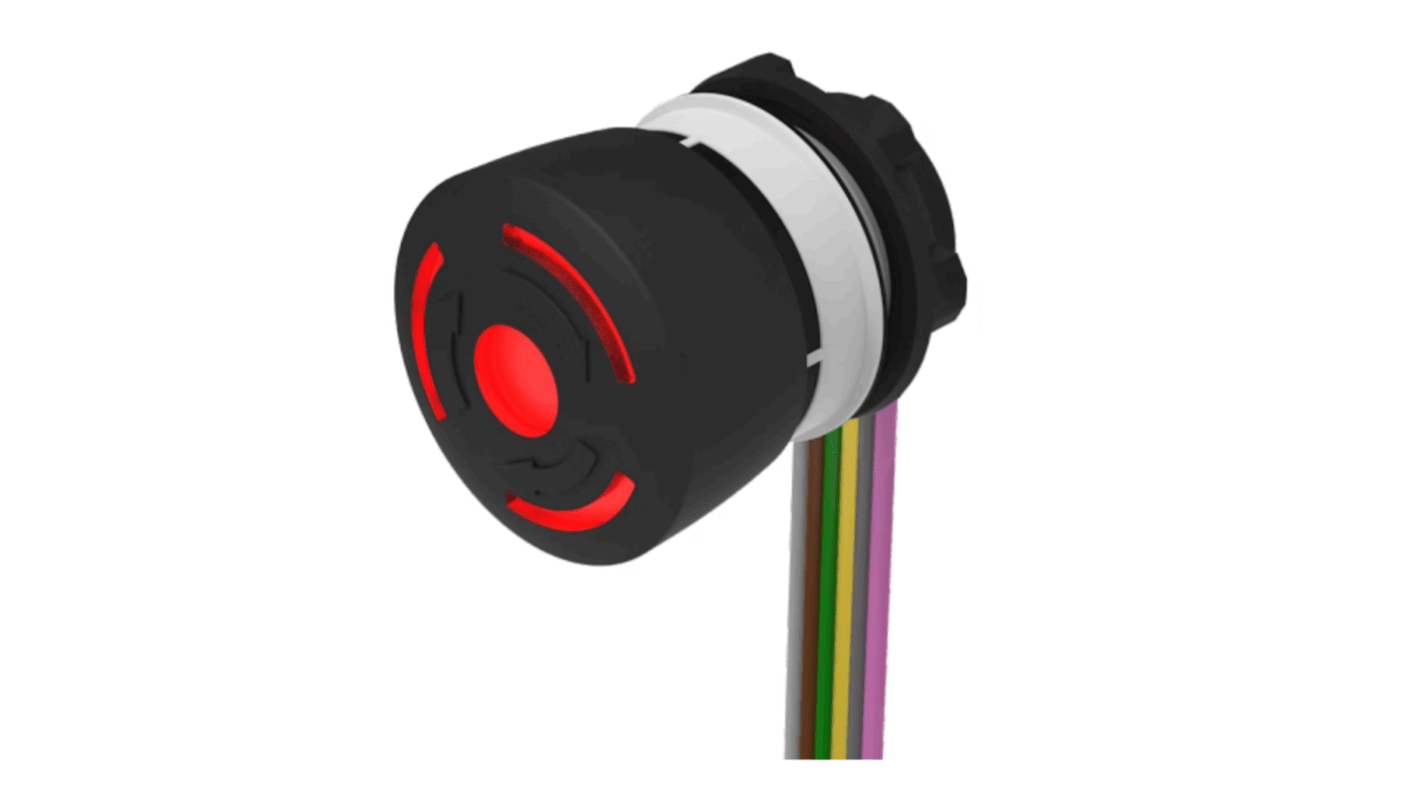

The EAO Stop switch features a diameter 32 mm mushroom-head in black opaque plastic with a panel cut-out of diameter 22.3 mm. It is illuminated and round in shape with 1 NC and 1 NO maintained contact configuration. It includes a 300 mm flat ribbon cable and offers twist to unlock functionality. Designed for high protection it meets IP65 IP66 and IP67 ratings according to DIN EN 60529. The lens is red.
Grey housing color
Plastic housing material according to UL 94 V0
