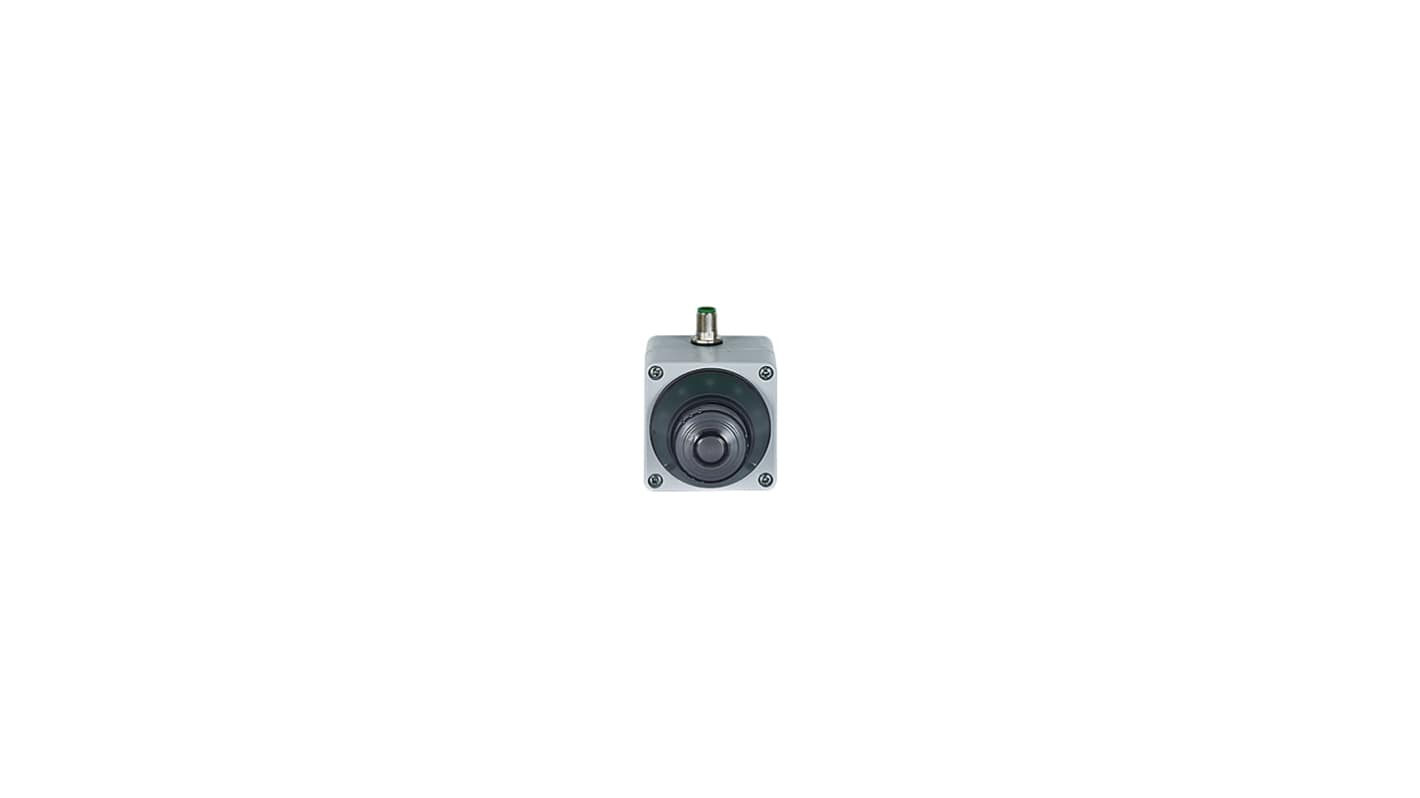

Pilz 400 Series Turn to Release Illuminated Emergency Stop Push Button, Surface Mount, DPST

RS 제품 번호:: 313-681
제조사 부품 번호:: 400463
제조업체:: Pilz

Pilz 400 Series Turn to Release Illuminated Emergency Stop Push Button, Surface Mount, DPST

Subtotal (1 unit)*

₩729,460.00

일시적 품절

2026년 10월 19일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩729,460.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 313-681
제조사 부품 번호:: 400463
제조업체:: Pilz

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Pilz
	Mount Type	Surface Mount
	Product Type	Emergency Stop Push Button
	Contact Configuration	DPST
	Push Button Actuation	Turn to Release
	Illuminated	Yes
	Series	400
	Colour	Yellow, Red
	Terminal Type	M12
	Contact DC Voltage	24V dc
	Depth	91.8mm
	Hazardous Area Certification	No
	Standards/Approvals	EAC, TÜV, CE, cULus Listed
	Width	72mm
	Safety Contacts	2 NC

	모두 선택
	브랜드 Pilz
	Mount Type Surface Mount
	Product Type Emergency Stop Push Button
	Contact Configuration DPST
	Push Button Actuation Turn to Release
	Illuminated Yes
	Series 400
	Colour Yellow, Red
	Terminal Type M12
	Contact DC Voltage 24V dc
	Depth 91.8mm
	Hazardous Area Certification No
	Standards/Approvals EAC, TÜV, CE, cULus Listed
	Width 72mm
	Safety Contacts 2 NC

Datasheet - 400463

COO (Country of Origin):: DE

The Pilz Actuator set consists of an E-STOP pushbutton with an activatable/deactivatable flashing function, without a logo or E-STOP symbol. It includes a contact block with dropout protection, compliant with EN 60947-5-1 and EN 60947-5-5, and an LED safety module PCB. The module is housed in a surface mount housing with an M12/5-pin connection and PDP67 8DI ION PIN assignment. It features 2 N/C contacts (2 N/C) with quick-connection technology.

CE listed

Contact material is made of AgNi

RoHS compliant

Pilz 400 Series Turn to Release Illuminated Emergency Stop Push Button, Surface Mount, DPST
