BACO LBX1 Series Twist Release Emergency Stop Push Button, Surface Mount, 22 mm Cutout, 1 NC, IP66
- RS 제품 번호:
- 259-946
- 제조사 부품 번호:
- LBX10510
- 제조업체:
- BACO
Subtotal (1 unit)*
₩82,173.00
재고있음
- 61 개 단위 배송 준비 완료
- 추가로 2026년 4월 30일 부터 30 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩82,173.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 259-946
- 제조사 부품 번호:
- LBX10510
- 제조업체:
- BACO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | BACO | |
| Product Type | Emergency Stop Push Button | |
| Mount Type | Surface Mount | |
| Cutout Diameter | 22mm | |
| Contact Configuration | 1 NC | |
| Push Button Actuation | Twist Release | |
| Housing Material | Plastic | |
| Series | LBX1 | |
| Illuminated | No | |
| IP Rating | IP66 | |
| Colour | Red | |
| Head Style | Mushroom Head | |
| Depth | 47.9mm | |
| Length | 73.6mm | |
| Head Diameter | 40mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Width | 47.9mm | |
| Push Button Material | Plastic | |
| 모두 선택 | ||
|---|---|---|
브랜드 BACO | ||
Product Type Emergency Stop Push Button | ||
Mount Type Surface Mount | ||
Cutout Diameter 22mm | ||
Contact Configuration 1 NC | ||
Push Button Actuation Twist Release | ||
Housing Material Plastic | ||
Series LBX1 | ||
Illuminated No | ||
IP Rating IP66 | ||
Colour Red | ||
Head Style Mushroom Head | ||
Depth 47.9mm | ||
Length 73.6mm | ||
Head Diameter 40mm | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
Width 47.9mm | ||
Push Button Material Plastic | ||

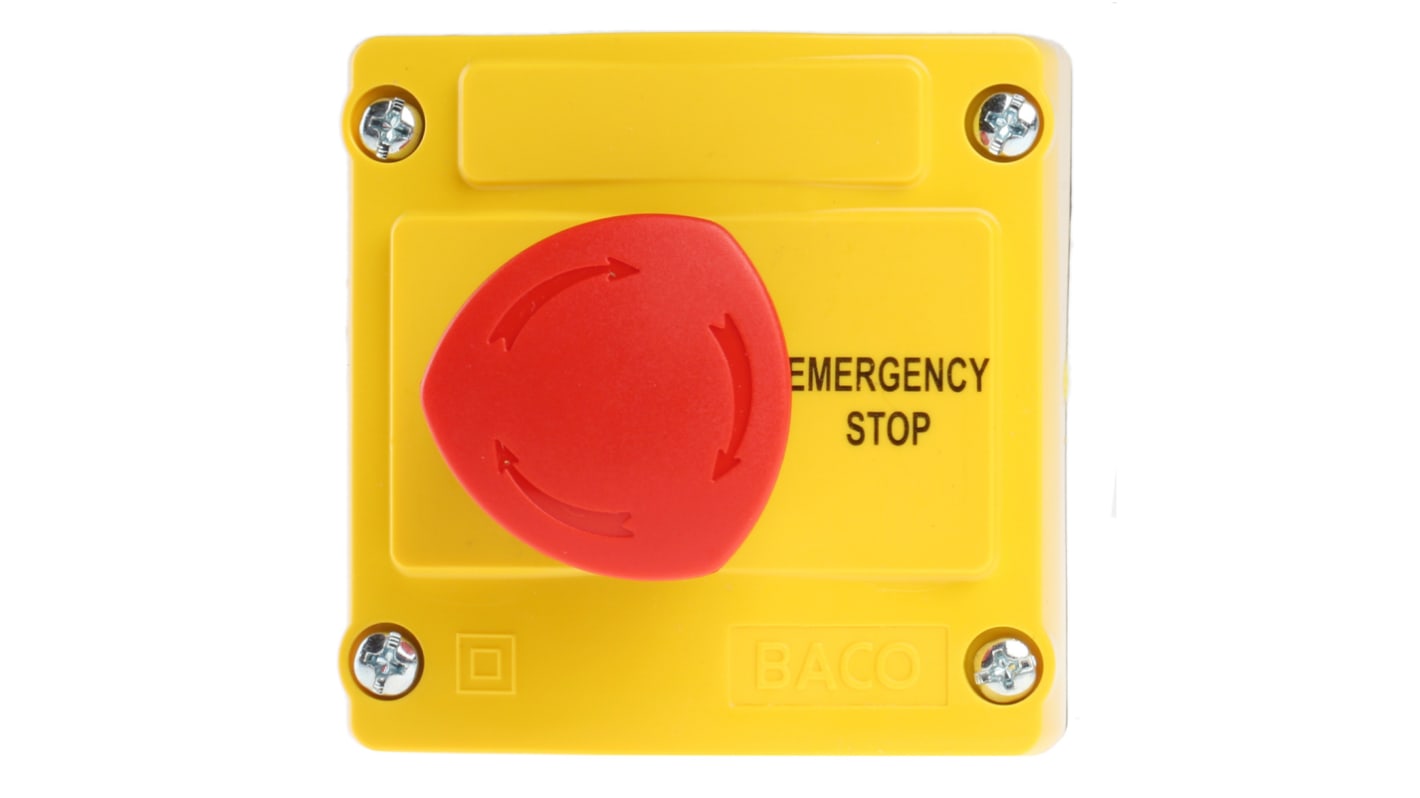

BACO Emergency Stop Pushbutton
The BACO LBX series 40mm emergency stop pushbutton has a red mushroom style head with the diameter of 40mm. The housing is made of plastic material.
These buttons are suitable for indoor or outdoor use.
Features and Benefits
1NC contact configuration
Twist to reset method
Non-illuminated
Surface mount
Certifications
IEC60947-5-5
IP66 rated
