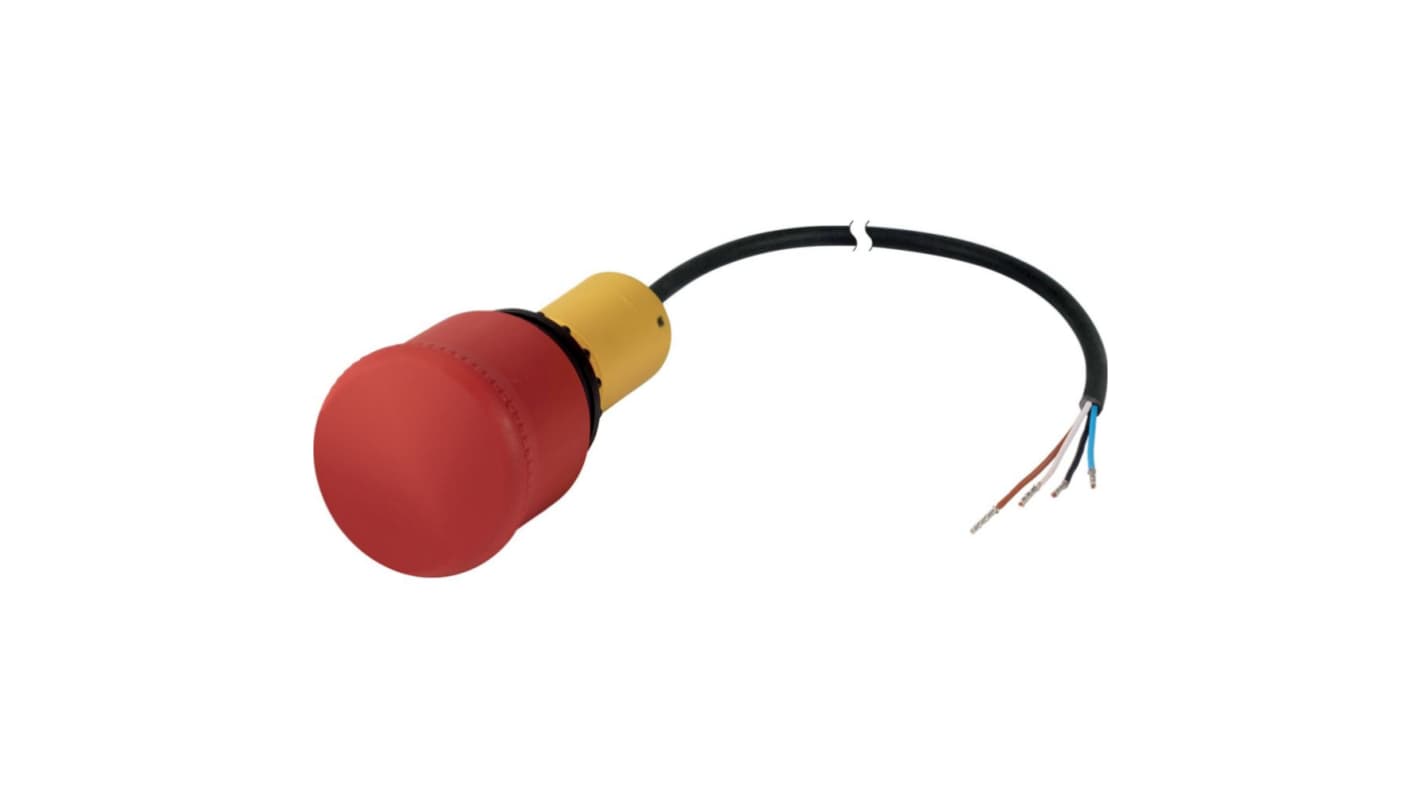

Eaton Pull to Release Emergency Stop Push Button, Built-In, 22.5 mm Cutout, 2 NC, IP66

모든 Emergency Stop Push Buttons 열람하기

Subtotal (1 unit)*

₩141,100.05

Add to Basket
수량 선택 또는 입력
제조사가 재고 비축중
  • 2026년 7월 13일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩141,100.05

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
246-409
제조사 부품 번호:
185169 C22-PV-K02-P62
제조업체:
Eaton
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Eaton

Mount Type

Built-In

Product Type

Emergency Stop Push Button

Cutout Diameter

22.5mm

Contact Configuration

2 NC

Push Button Actuation

Pull to Release

Series

Eaton Moeller

Illuminated

No

IP Rating

IP66

Colour

Red

Terminal Type

Cable

Contact AC Voltage

250V

Contact Current

4A

Contact DC Voltage

24V

Head Style

Mushroom Shaped

Depth

1097mm

Switch Configuration

2 NC

Standards/Approvals

CSA-C22.2 No. 94.2-07, CE, UL, CSA-C22.2 No. 14-10, UL 508, IEC/EN 60947-5-5, CSA, UL File No.: E340491, VDE 0660, CSA-C22.2 No. 94-91, CE marking, CSA Class No.: 321103, CSA File No.: 165628, IEC/EN 60947-5-1

Length

1097mm

Head Diameter

38mm

Hazardous Area Certification

No

Width

38mm

제외

COO (Country of Origin):
DE

Eaton Emergency Stop Push Button, 22.5mm Cutout Diameter, 2 NC Contact Configuration - 185169 C22-PV-K02-P62


This emergency stop push button is a VITAL safety device designed for automated systems. With a mushroom-shaped cap of 38mm and a cutout diameter of 22.5mm, it features a pull-to-release operation for immediate shutdown in emergencies. This push button offers a versatile voltage rating of 800V, ensuring reliable performance in various industrial settings. The push button switch is constructed to withstand demanding environments, boasting an IP66 rating for dust and water resistance.

Features & Benefits


• Offers two normally closed (NC) contacts for enhanced safety
• Pull-to-release mechanism ensures immediate shutdown functionality
• Rated for 4A supply current, suitable for high-demand applications
• IP66 rated for excellent protection against moisture and dust
• Non-illuminated design reduces potential interference in dark environments
• Compact dimensions make integration into machinery straightforward

Applications


• Used in automated machinery to ensure operator safety
• Ideal for industrial controls requiring quick emergency shutdown
• Suitable for environments with harsh conditions, including dust and moisture
• Functions effectively within electrical safety systems and circuits
• Compatible with various equipment needing reliable emergency power cut-off

What is the significance of the pull-to-release feature in this device?


The pull-to-release feature ensures that the push button can be activated quickly, allowing operators to engage the emergency stop function instantly in critical situations. This design enhances safety by minimising response time during emergencies.

How does the IP66 rating enhance the functionality of this device?


The IP66 rating indicates that the push button is fully protected against dust and can withstand powerful jets of water. This makes it suitable for use in challenging industrial environments, where exposure to contaminants and moisture is a concern.

What precautions should be taken during installation?


During installation, it is essential to ensure the device is securely mounted and properly connected to prevent any risk of malfunction. Additionally, it should be positioned where it is easily accessible to users to facilitate quick action in emergencies.
