TE Connectivity KISSLING Series Stop Emergency Stop Push Button, Panel Mount, 30.5 mm Cutout, 3P3T, IP6K9K
- RS 제품 번호:
- 170-721
- 제조사 부품 번호:
- ES-2003-T111
- 제조업체:
- TE Connectivity
Subtotal (1 unit)*
₩108,660.00
재고있음
- 155 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩108,660.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 170-721
- 제조사 부품 번호:
- ES-2003-T111
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Product Type | Emergency Stop Push Button | |
| Mount Type | Panel Mount | |
| Cutout Diameter | 30.5mm | |
| Contact Configuration | 3P3T | |
| Push Button Actuation | Stop | |
| Series | KISSLING | |
| Illuminated | No | |
| IP Rating | IP6K9K | |
| Colour | Yellow, Red | |
| Contact DC Voltage | 32V dc | |
| Contact Current | 10A | |
| Head Diameter | 30mm | |
| Standards/Approvals | EN 60947-5-5, IEC 60529 | |
| Hazardous Area Certification | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Product Type Emergency Stop Push Button | ||
Mount Type Panel Mount | ||
Cutout Diameter 30.5mm | ||
Contact Configuration 3P3T | ||
Push Button Actuation Stop | ||
Series KISSLING | ||
Illuminated No | ||
IP Rating IP6K9K | ||
Colour Yellow, Red | ||
Contact DC Voltage 32V dc | ||
Contact Current 10A | ||
Head Diameter 30mm | ||
Standards/Approvals EN 60947-5-5, IEC 60529 | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- SK
ES-2003-T111

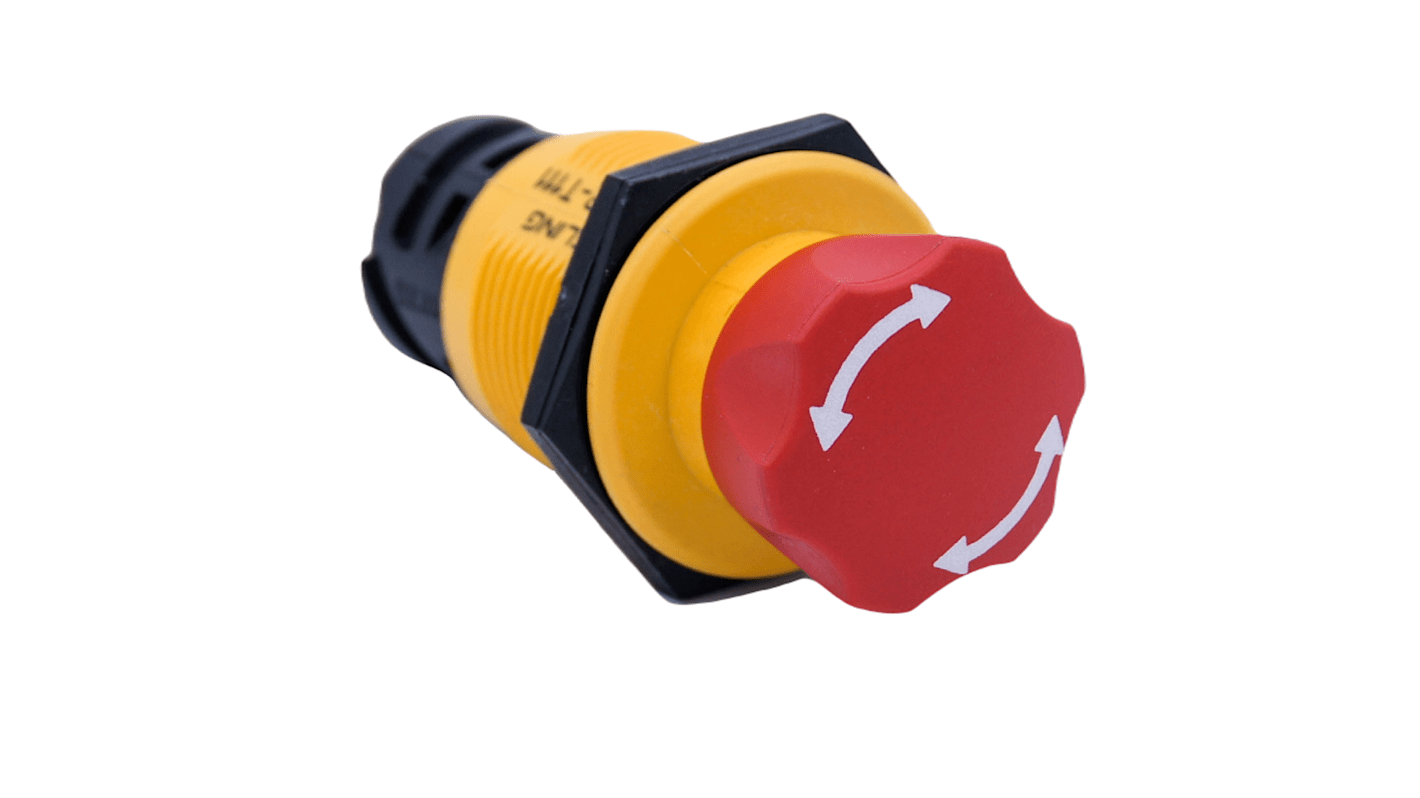

The TE Connectivity Emergency stop Switch features a compact, sealed and ruggedized construction with small dimensions and a high resistance to shock, vibration, dust and moisture. These characteristics are important for safe and reliable switching. Thanks to our IP6K9K sealed switch, no additional protection such as a box or enclosure is required. It is a plug and play system which can be used in hazardous environments.
2 pole change over version
Continuous current up to 10 A
