Siemens SIRIUS ACT 3SU10 Series, Pull Release, Emergency Stop Push Button Head
- RS 제품 번호:
- 874-1737
- 제조사 부품 번호:
- 3SU1000-1HA20-0AA0
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩71,760.00
재고있음
- 5 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩71,760.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS 제품 번호:
- 874-1737
- 제조사 부품 번호:
- 3SU1000-1HA20-0AA0
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Product Type | Emergency Stop Push Button Head | |
| Series | SIRIUS ACT 3SU10 | |
| Cutout Diameter | 22mm | |
| Push Button Actuation | Pull Release | |
| Push Button Style | Mushroom | |
| Push Button Material | Plastic | |
| Illuminated | No | |
| Hazardous Area Certification | No | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Low Carbon Manufacture | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Product Type Emergency Stop Push Button Head | ||
Series SIRIUS ACT 3SU10 | ||
Cutout Diameter 22mm | ||
Push Button Actuation Pull Release | ||
Push Button Style Mushroom | ||
Push Button Material Plastic | ||
Illuminated No | ||
Hazardous Area Certification No | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Low Carbon Manufacture | ||
- COO (Country of Origin):
- DE

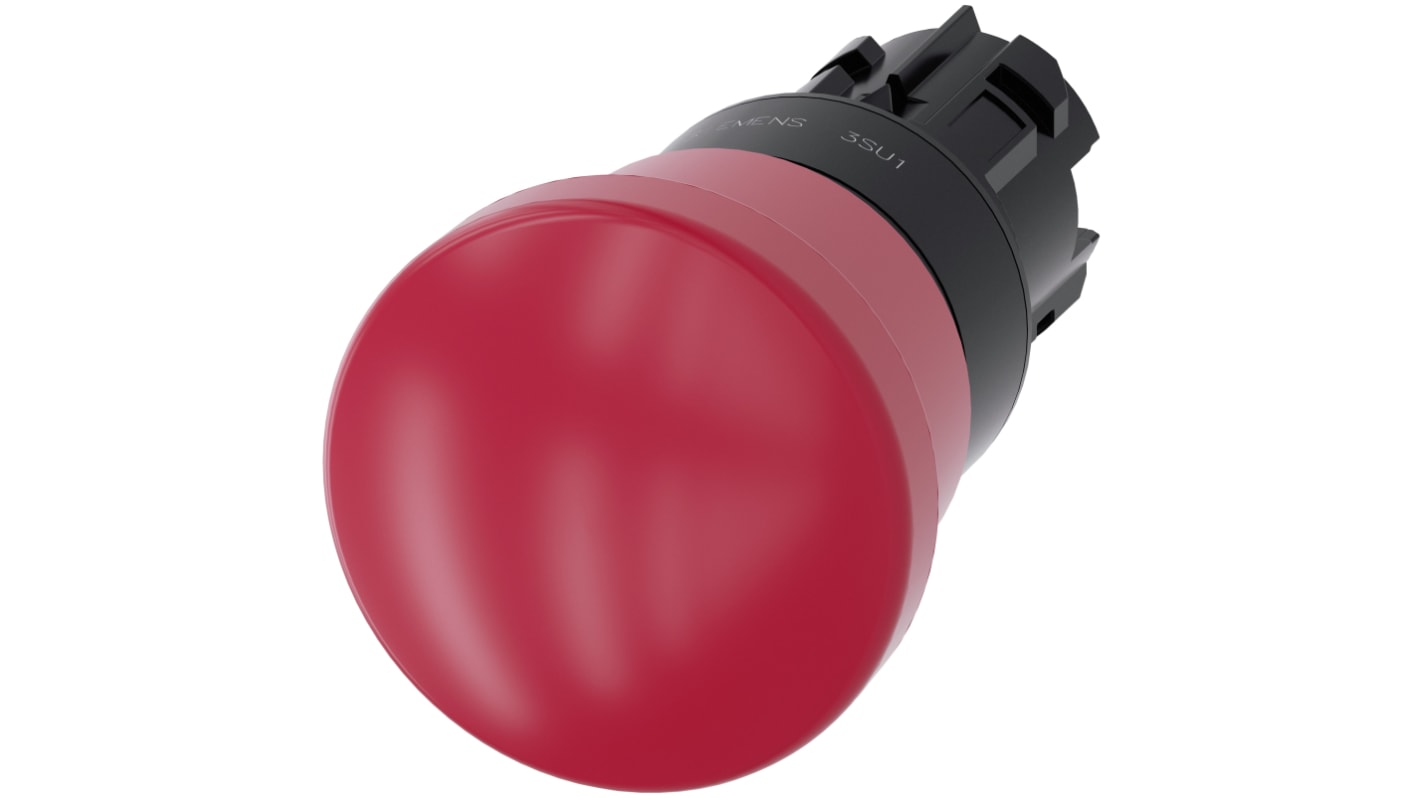

Siemens SIRIUS ACT 3SU10 Series Emergency Stop Push Button, 22mm Cutout Diameter, red - 3SU1000-1HA20-0AA0
This emergency stop push button provides a manual safety shut-down for industrial control panels. Designed as a red plastic mushroom actuator with a pull-to-unlatch release, it fulfils emergency-off requirements and is suitable for harsh environments thanks to high ingress protection. Its intended use is panel mounting where a single, positive-latching command point is required and where operators must quickly stop machinery.
Features and Benefits:
• IP66, IP67, IP69K protection keeps internals dry in washdown environments
• Positive latching action ensures a definite mechanical break on actuation
• Pull-to-unlatch unlock allows Rapid manual reset after shutdown
• 300,000 mechanical cycles typical supports extended operational life
• Operates between -25°C and +70°C for wide temperature-range use
• Positive latching action ensures a definite mechanical break on actuation
• Pull-to-unlatch unlock allows Rapid manual reset after shutdown
• 300,000 mechanical cycles typical supports extended operational life
• Operates between -25°C and +70°C for wide temperature-range use
Applications
• Used for machine emergency shutdown in manufacturing plants
• Suitable for panels requiring 22 mm cut-out safety controls
• Ideal for washdown areas and maritime installations requiring IP69K
• Used with safety circuits requiring positive-opening function
• Suitable for railway equipment installations with vibration resilience
• Suitable for panels requiring 22 mm cut-out safety controls
• Ideal for washdown areas and maritime installations requiring IP69K
• Used with safety circuits requiring positive-opening function
• Suitable for railway equipment installations with vibration resilience
How many switching positions does it provide?
It provides two switching positions for on/off safety operation.
What material is the actuating element MADE from?
The mushroom actuator is MADE from plastic and is coloured red.
What protection classes support diverse enclosure environments?
It meets IP66, IP67 and IP69K and NEMA ratings 1, 2, 3, 3R, 4, 4X, 12, 13.
What are the durability metrics for safety-related service life?
Maximum service life is 20 a with a typical mechanical life of 300,000 cycles.
How does it perform under mechanical stress and vibration?
It resists 15 g/11 MS shock and vibration up to 10 to 500 Hz at 5 g.
