Schneider Electric Harmony XB4 Series, Key Release, Emergency Stop Push Button Head
- RS 제품 번호:
- 609-2645
- 제조사 부품 번호:
- ZB4BS94412
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩81,404.00
재고있음
- 19 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩81,404.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 609-2645
- 제조사 부품 번호:
- ZB4BS94412
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Series | Harmony XB4 | |
| Cutout Diameter | 22mm | |
| Manufacturer k.i.m. | Schneider Electric | |
| Push Button Actuation | Key Release | |
| Push Button Style | Mushroom | |
| Better World Product | Yes | |
| Push Button Material | Plastic | |
| Illuminated | No | |
| Better World Verification | Green Premium | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Series Harmony XB4 | ||
Cutout Diameter 22mm | ||
Manufacturer k.i.m. Schneider Electric | ||
Push Button Actuation Key Release | ||
Push Button Style Mushroom | ||
Better World Product Yes | ||
Push Button Material Plastic | ||
Illuminated No | ||
Better World Verification Green Premium | ||
- COO (Country of Origin):
- CZ
Schneider Electric Domed Head Emergency Stop Push Buttons - ZB4-B Range
The Harmony XB4 metal range of modular control and signalling units combine simplicity of installation, flexibility, and robustness. This range meets the requirements of many industrial applications. These units are either complete products or separate components for customer assembly.
Environment
The performance of the Harmony XB4 range meets the most demanding international standards and approval, such as:
• EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, NEMA, and marine approvals
• Protection against ingress of solid objects, dust, and water: IP 66, 67, 69,69K and type 4X
• Shock protection level up to IK06
• High vibration resistance with shake proof connection screws (periodic retightening unnecessary)
For outdoor applications, the operating temperature oscillates from -40 °C to +70 °C/-40 °F to +158 °F
• EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, NEMA, and marine approvals
• Protection against ingress of solid objects, dust, and water: IP 66, 67, 69,69K and type 4X
• Shock protection level up to IK06
• High vibration resistance with shake proof connection screws (periodic retightening unnecessary)
For outdoor applications, the operating temperature oscillates from -40 °C to +70 °C/-40 °F to +158 °F
Common Applications
The range of XB4 can be used in the following applications:
•Industry (machine and control panels in packaging, material handling, material working, and pumping)
•Building and infrastructure (energy distribution panels, public works, restaurants, commercial buildings and airports)
•Industry (machine and control panels in packaging, material handling, material working, and pumping)
•Building and infrastructure (energy distribution panels, public works, restaurants, commercial buildings and airports)
This ZB4BS94412 is a chromium plated unit (bezel material), which has mechanical durability up to 300000 cycles.
The resistance to high pressure washer is 7000000 Pa at 55 °C, distance: 0.1 m.
This item is classified as ’’ Green Premium Product ’’, which provides the following:
•Environmental information about the unit
•Minimal use of hazardous substances in, and beyond, compliance with regulations (RoHS, REACh)
•A promise of sustainable and environmentally friendly performance
•Product Environmental Profiles (PEPs) for easy carbon footprint calculation
•End-of-life instructions for reduced cost and optimised recycling
The resistance to high pressure washer is 7000000 Pa at 55 °C, distance: 0.1 m.
This item is classified as ’’ Green Premium Product ’’, which provides the following:
•Environmental information about the unit
•Minimal use of hazardous substances in, and beyond, compliance with regulations (RoHS, REACh)
•A promise of sustainable and environmentally friendly performance
•Product Environmental Profiles (PEPs) for easy carbon footprint calculation
•End-of-life instructions for reduced cost and optimised recycling
Frequently asked questions & answers
What is the different between a push button switch for an emergency stop and a general-purpose push button switch?
A general-purpose push button switch is used for controls, e.g. to start machine operation or simply to switch modes. An emergency stop push button switch however, is mainly used as a safety measure to stop hazardous events.
What is the electrical shook protection class for this item?
This is a Class 1 conforming to IEC 61140

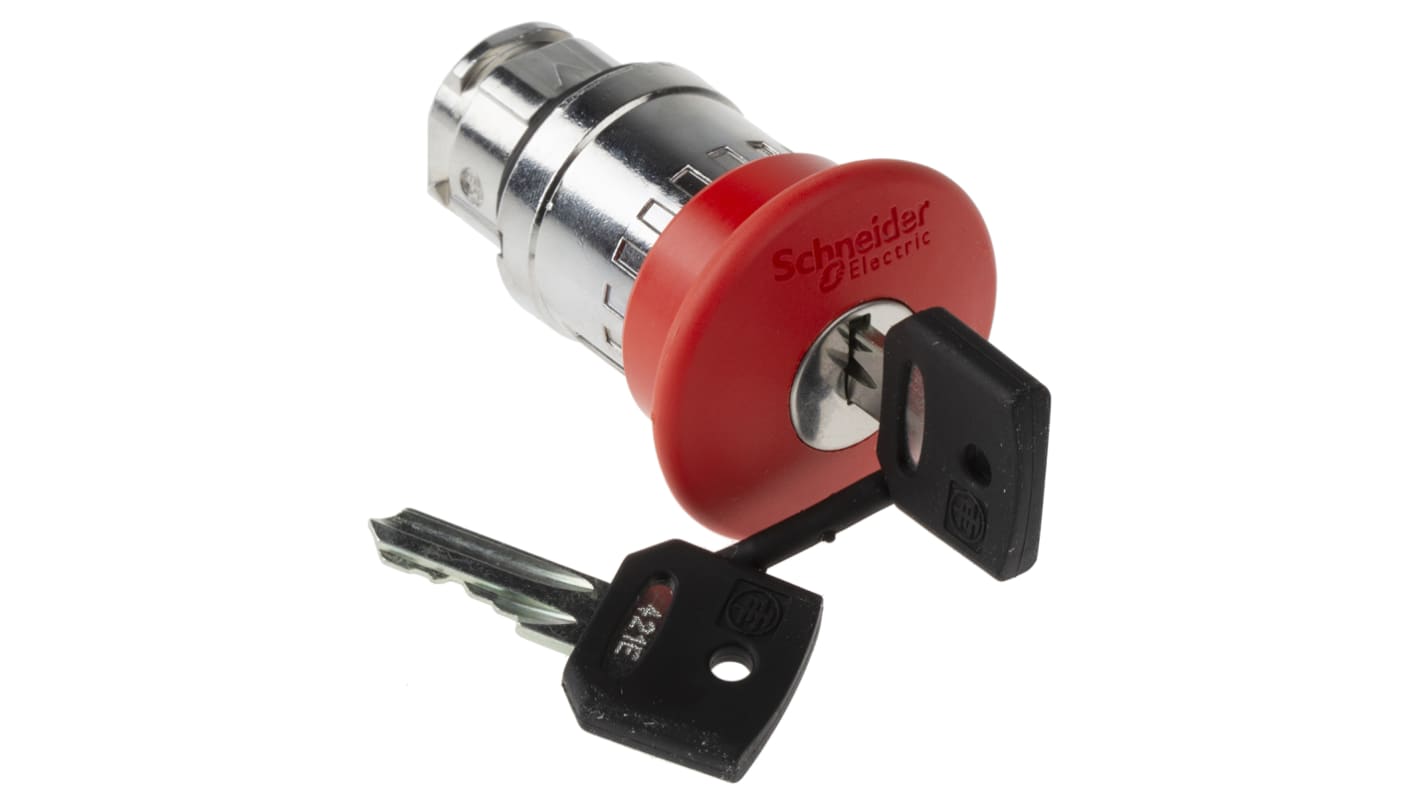

ZB4BS94412 Emergency Stop Push Button Switching Off Head.
- Harmony XB4 range.
- ZB4 Series.
- Chromium plated metal bezel.
- Diameter 22 mm (mounting).
- Round shaped push button.
- Red mushroom profile 40 mm diameter, no marking.
- Trigger action and mechanical latching with key release (centre withdrawal).
- Ronis 421E keylock.
- Durability 300000 cycles.
- Weight 0.098 kg.
Composition.
- C7 for 4 contacts using single blocks in front mounting. C8 for 4 contacts using single and double blocks in front mounting. C11 for 3 contacts using single blocks in front mounting. C15 for 1 contacts using single blocks in front mounting. C10 for 4 contacts using single and double blocks in front mounting.
Protection.
- NEMA 13, NEMA 4X, NEMA 4, NEMA 12.
- IK03 conforming to IEC 50102.
- Vibration resistance conforming to IEC 60068-2-6.
- Shock resistance conforming to IEC 60068-2-27.
Standards.
- EN/IEC 60947-5-1, GB 14048.5, EN/ISO 13850, EN/IEC 60947-5-5, IEC 60364-5-53, EN/IEC 60947-5-4, EN/IEC 60947-1, UL 508, EN/IEC 60204-1, CSA C22.2 No 14, JIS C8201-5-1, JIS C8201-1.
Certificates.
- RINA, LROS (Lloyds register of shipping), CSA, UL listed, DNV, BV, GL.
