EAO 45 Series, Twist Release, Emergency Stop Push Button Head 40 mm Diameter
- RS 제품 번호:
- 169-7073
- Distrelec 제품 번호:
- 300-89-249
- 제조사 부품 번호:
- 45-2D36.1920.000
- 제조업체:
- EAO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩63,694.40
재고있음
- 1 개 단위 배송 준비 완료
- 추가로 2026년 3월 24일 부터 5 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩63,694.40 |
| 10 - 24 | ₩61,758.00 |
| 25 - 49 | ₩59,859.20 |
| 50 - 99 | ₩58,562.00 |
| 100 + | ₩57,396.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 169-7073
- Distrelec 제품 번호:
- 300-89-249
- 제조사 부품 번호:
- 45-2D36.1920.000
- 제조업체:
- EAO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EAO | |
| Series | 45 | |
| Product Type | Emergency Stop Push Button Head | |
| Cutout Diameter | 16mm | |
| Push Button Colour | Red | |
| Push Button Actuation | Twist Release | |
| Push Button Style | Mushroom | |
| Push Button Material | Plastic | |
| IP Rating | IP69K, IP66, IP67 | |
| Illuminated | Yes | |
| Push Button Diameter | 40mm | |
| Hazardous Area Certification | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 EAO | ||
Series 45 | ||
Product Type Emergency Stop Push Button Head | ||
Cutout Diameter 16mm | ||
Push Button Colour Red | ||
Push Button Actuation Twist Release | ||
Push Button Style Mushroom | ||
Push Button Material Plastic | ||
IP Rating IP69K, IP66, IP67 | ||
Illuminated Yes | ||
Push Button Diameter 40mm | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- DE

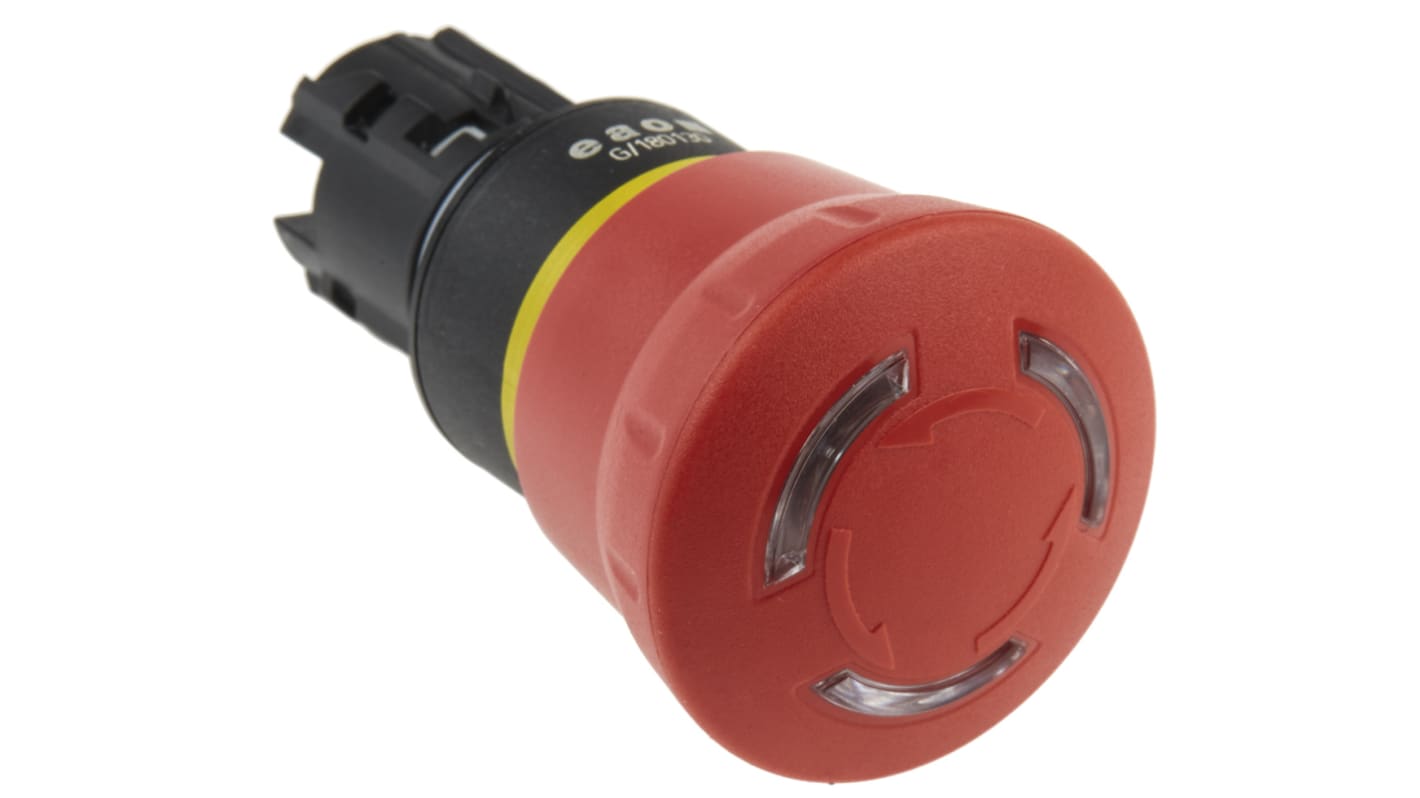

EAO Emergency Stop Actuator
The EAO series 45 emergency stop actuator is a 40mm push-trigger twist-release LED. This actuator unites an extremely broad range of machine operating functions with outstanding technical properties. This is configurable switch body E-stop, round illuminated-red. It is particularly useful wherever machinery may be exposed to external factors. The operating temperature ranges in between -25°C and 70°C. The storage temperature ranges between -40°C and 80°C.
Features and Benefits
• Easy to assemble and use
• Environmental category during operation according to IEC 60721:3K6, 3C3, 3S2, 3M6
• Long service life (up to 10m switching cycles, depending on function)
• Maximum number of switching elements is 4
• Modern design with multiple options
• Rugged in use
• Shock resistance according to IEC 60068-2-27 Sinusoidal half-wave 50g /11ms
• Value added services
• Vibration resistance according to IEC 60068-2-62.500 Hz: 5 g
Applications
• CNC machinery
• Food and beverage industry
• Packaging systems
• Textile production
Certifications
• DIN
• EN
• EN 60204-1
• IP66 rated
• IP67 rated
• IP69 rated
• ISO 13850
