Siemens 3SU1 Series, Latching, Emergency Stop Push Button Head 40mm Diameter
- RS 재고 번호:
- 159-564
- 제조 부품 번호:
- 3SU1150-1HB20-1PA0
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩105,298.80
일시적 품절
- 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당 | 한팩당 |
|---|---|
| 1 + | ₩105,298.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 재고 번호:
- 159-564
- 제조 부품 번호:
- 3SU1150-1HB20-1PA0
- 제조업체:
- Siemens
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Series | 3SU1 | |
| Cutout Diameter | 22.3mm | |
| Push Button Colour | Red | |
| Push Button Actuation | Latching | |
| Better World Product | Yes | |
| Push Button Style | Round | |
| Illuminated | No | |
| Push Button Diameter | 40mm | |
| Better World Claim | Extended product life, Low carbon manufacture | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Series 3SU1 | ||
Cutout Diameter 22.3mm | ||
Push Button Colour Red | ||
Push Button Actuation Latching | ||
Better World Product Yes | ||
Push Button Style Round | ||
Illuminated No | ||
Push Button Diameter 40mm | ||
Better World Claim Extended product life, Low carbon manufacture | ||
- COO (Country of Origin):
- DE

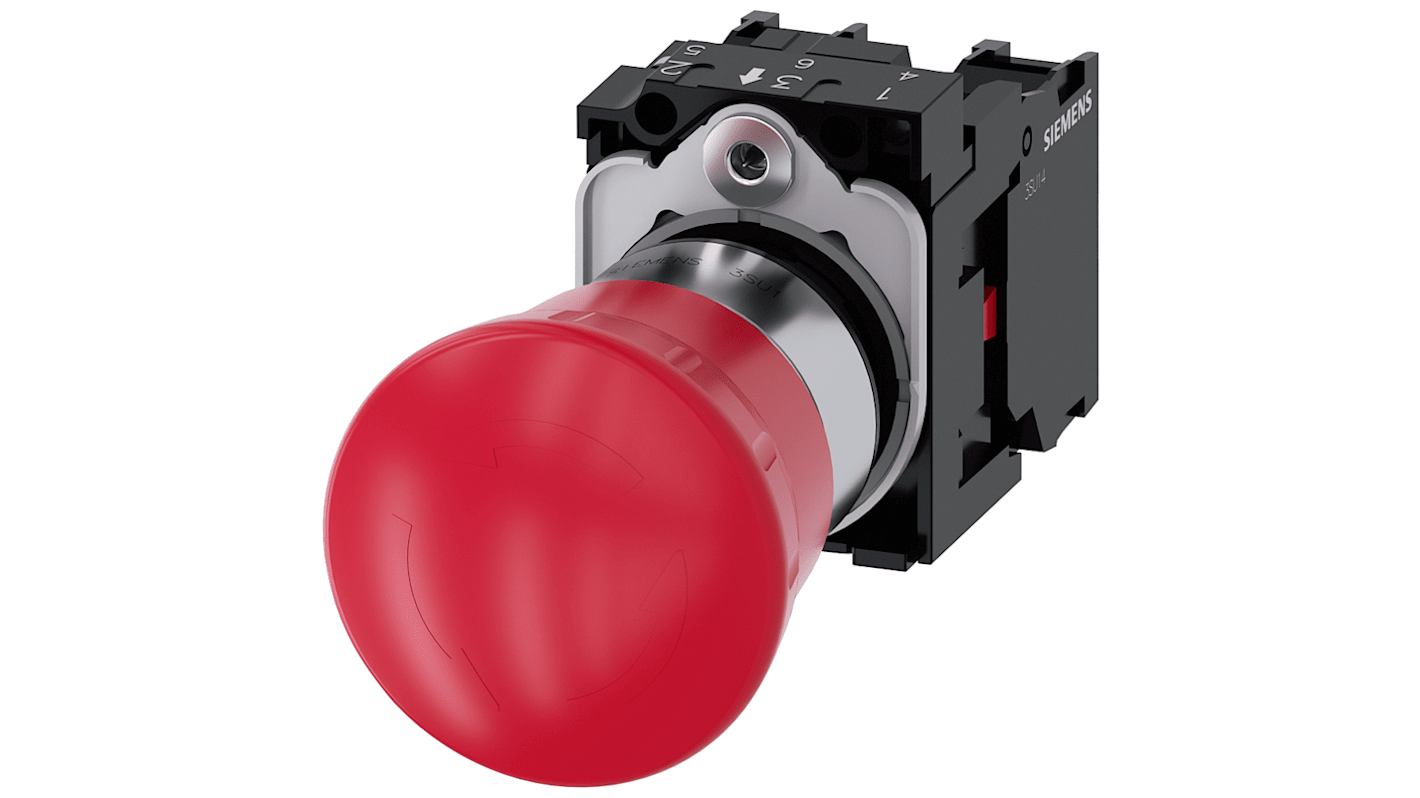

Siemens 3SU1 Series Emergency Stop Push Button Head, 40mm Diameter, Red Push Button Actuator - 3SU1150-1HB20-1PA0
This emergency stop push button head is a critical component designed to enhance safety in industrial applications. With a 40mm round shape and a cutout diameter of 22.3mm, the button features a positive latching mechanism for reliable operation. The robust enclosure provides dual protection with an IP66, IP67, and IP69K rating, ensuring durability in various environments.
Features & Benefits
• Round design offers ergonomic access and visibility
• Latching mechanism ensures reliable operation in emergencies
• Constructed from durable plastic for longevity
• Compatible with multiple conductor cross-sections for versatile connections
• Latching mechanism ensures reliable operation in emergencies
• Constructed from durable plastic for longevity
• Compatible with multiple conductor cross-sections for versatile connections
Applications
• Used in industrial automation systems for emergency stops
• Engaged in mechanical and electrical equipment for safety control
• Integrated into machinery for immediate power disconnection
• Utilised in environments requiring strict safety protocols
• Engaged in mechanical and electrical equipment for safety control
• Integrated into machinery for immediate power disconnection
• Utilised in environments requiring strict safety protocols
What are the benefits of the latching mechanism?
The latching mechanism ensures that the emergency stop remains activated until manually reset, preventing accidental disengagement and providing a clear visual signal of the stop status.
How does the IP rating benefit this push button?
The high IP66, IP67, and IP69K rating protects the device from dust ingress and high-pressure water jets, making it ideal for harsh industrial environments.
What types of conductors can be connected to the push button?
This push button supports various conductor types, allowing connections for solid and finely stranded conductors with appropriate cross-sections to suit different installation needs.
How does the design comply with safety regulations?
The push button adheres to EN ISO 13850, ensuring its functionality meets safety standards for emergency stop controls in various applications.
What is the expected mechanical service life of this push button?
The device boasts a mechanical service life of approximately 300,000 operating cycles, providing longevity and reliability throughout its use.
