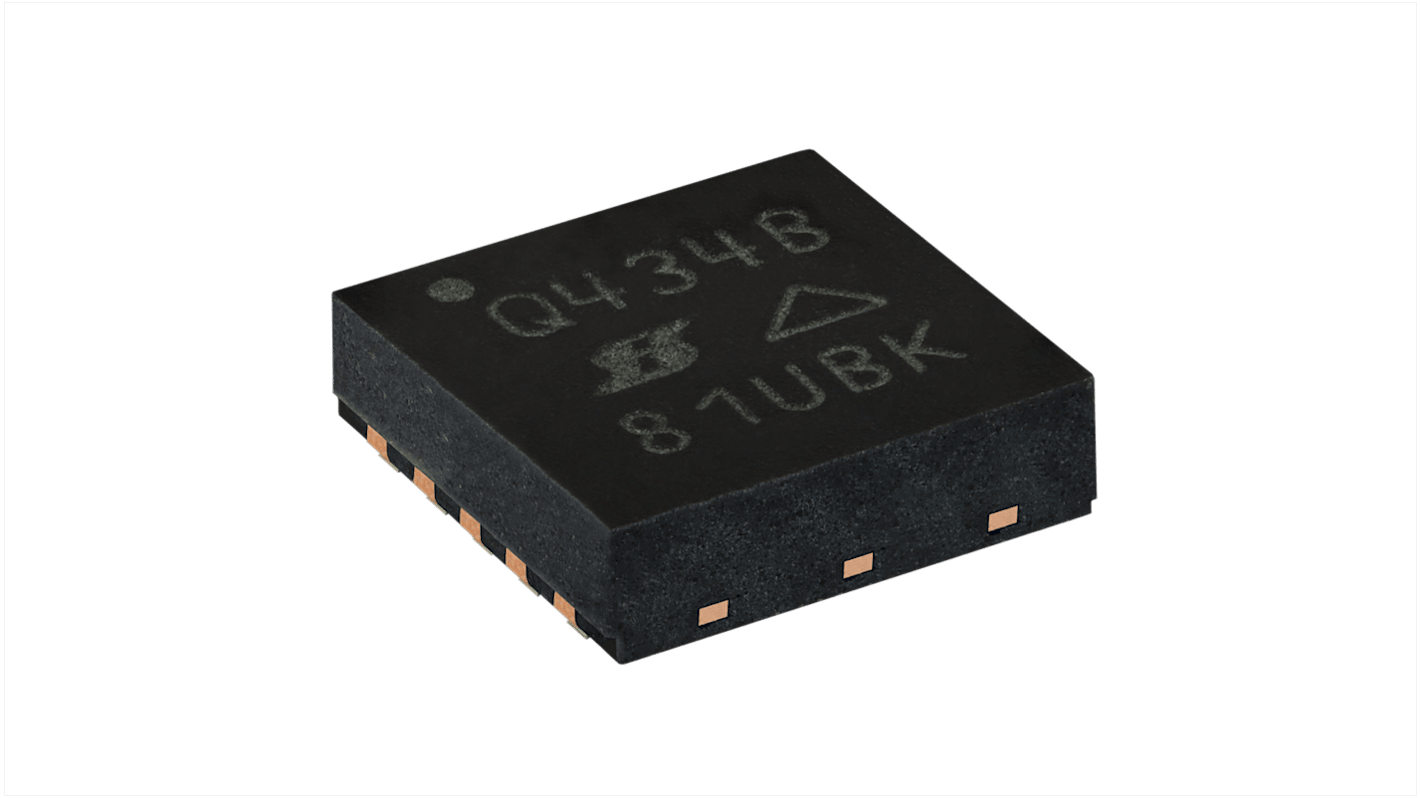

Name: Vishay SIPQ32433BDN-T1E3 Electronic Fuse, 22V
Brand: Vishay
SKU: 214-810
Price: 12051.00 KRW
Availability: BackOrder

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Vishay
	Product Type	Electronic Fuse
	Maximum Input Voltage	22V
	Minimum Input Voltage	2.8V
	Current Limit	4.5A
	Maximum Operating Temperature	150°C
	Output Current	3.5A
	Minimum Operating Temperature	-40°C
	Package Type	TDFN10
	Pin Count	10
	Series	SIPQ32433
	Standards/Approvals	RoHS
	Automotive Standard	No

	모두 선택
	브랜드 Vishay
	Product Type Electronic Fuse
	Maximum Input Voltage 22V
	Minimum Input Voltage 2.8V
	Current Limit 4.5A
	Maximum Operating Temperature 150°C
	Output Current 3.5A
	Minimum Operating Temperature -40°C
	Package Type TDFN10
	Pin Count 10
	Series SIPQ32433
	Standards/Approvals RoHS
	Automotive Standard No

Datasheet - SIPQ32433BDN-T1E3

COO (Country of Origin):: TH

Vishay SIPQ32433 Series Electronic Fuse, 4.5A Current Limit, 22V Maximum Input Voltage - SIPQ32433BDN-T1E3

This electronic fuse provides controlled power protection for low-voltage electronic systems, acting as a protected switch that limits current and prevents damage from overcurrent conditions. It operates across a wide input range and is intended for integration on Compact PCBs where thermal resilience and regulated output are required.

Features and Benefits:

• 4.5A current limit protects circuits from excessive draw • 3.5A regulated output current supplies downstream loads safely • 2.8V-22V input range supports varied low-voltage supplies • Withstands operating temperatures up to150°C for harsh environments • TDFN10 package delivers a Compact surface-mount solution • RoHS compliance simplifies environmental considerations in designs

Applications

• Suitable for power distribution modules in factory automation • Ideal for protected supply paths in industrial control equipment • Used with battery-powered sensor nodes requiring overcurrent protection • Can be used for board-level power protection in electrical test rigs

What thermal limits should I consider during layout?

The device is rated to operate at temperatures up to150°C, so ensure PCB copper area and thermal vias are sized to dissipate heat for sustained loads near its current limit.

How does the device behave with low-voltage supplies?

It accepts inputs down to2.8V, allowing use with common low-voltage rails and ensuring functional protection at reduced system voltages.

Are there package considerations for automated assembly?

The component is supplied in a TDFN10 surface-mount footprint with10 pins, compatible with standard pick-and-place and reflow processes.

Can it replace automotive-grade components in designs?

It is not specified as an automotive-standard part, so it can serve as a non-automotive alternative where automotive qualification is not required.

What standards-related constraint affects selection?

The unit conforms to RoHS requirements, which addresses restricted-substance considerations for compliant product assemblies.
