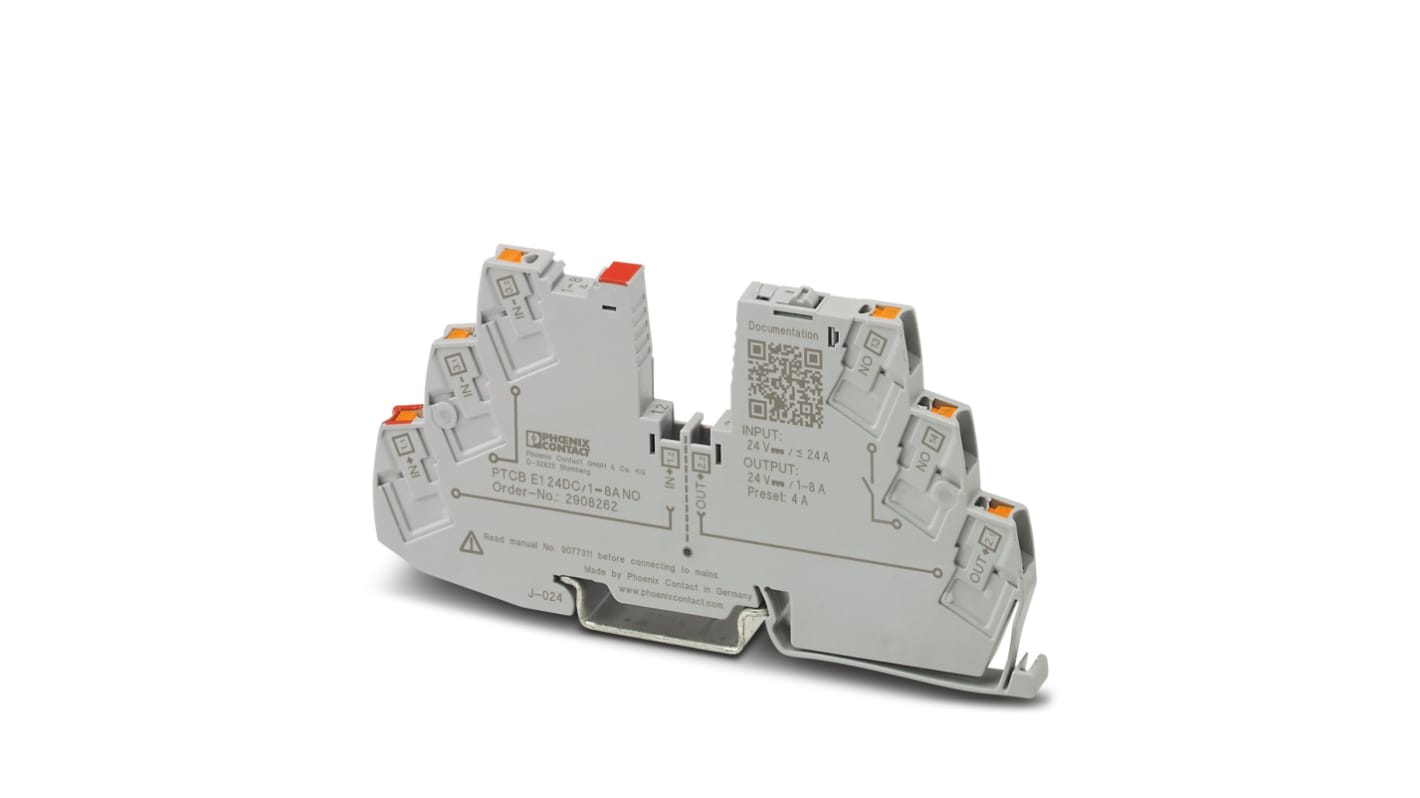

Phoenix Contact PTCB Electronic Circuit Breaker 8 A 24 V, 1 channels, DIN Rail Type E
- RS 제품 번호:
- 207-2796
- Distrelec 제품 번호:
- 302-22-026
- 제조사 부품 번호:
- 2908262
- 제조업체:
- Phoenix Contact
Subtotal (1 unit)*
₩76,760.40
재고있음
- 추가로 2026년 2월 23일 부터 119 개 단위 배송
- 추가로 2026년 3월 18일 부터 17 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩76,760.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 207-2796
- Distrelec 제품 번호:
- 302-22-026
- 제조사 부품 번호:
- 2908262
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Electronic Circuit Breaker | |
| Series | PTCB | |
| Number of Channels | 1 | |
| Current Rating | 8 A | |
| Voltage | 24 V | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type E | |
| Length | 105.8mm | |
| Terminal Type | Screw | |
| Width | 55.6 mm | |
| Depth | 55.6mm | |
| Standards/Approvals | cUL, cULus, EN 61000-6-3, RoHS, UL | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Electronic Circuit Breaker | ||
Series PTCB | ||
Number of Channels 1 | ||
Current Rating 8 A | ||
Voltage 24 V | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type E | ||
Length 105.8mm | ||
Terminal Type Screw | ||
Width 55.6 mm | ||
Depth 55.6mm | ||
Standards/Approvals cUL, cULus, EN 61000-6-3, RoHS, UL | ||
- COO (Country of Origin):
- DE
Phoenix Contact Electronic Circuit Breaker, 300A Short-Circuit Switching Capacity, 0 to 30V DC Operating Voltage - PTCB E1 24DC/1-8A NO - 2908262
Choose this electronic circuit breaker from Phoenix Contact when you need an adaptable safety device. It trips when either an overvoltage or short circuit is detected to safeguard downstream electrical equipment.
The unit has current values that can be set between 1 and 8A for convenience and flexibility. Resetting is easy – just press and hold the button on the front of the device. An LED makes it easy to monitor circuits, with the light turning yellow when the current reaches 80% of its set value. It turns red when the current or voltage is out of the safe range.
This circuit breaker has push-in terminals and clips onto standard DIN rails for easy installation. It can be attached to other terminal blocks using a bridge to save wiring time. Use it to protect components such as relays, motors and actuators in automated systems.
Features & Benefits
• Integrated failsafe means there's no need for a backup fuse
• Compact width of 6.2mm to save you cabinet space
• UL94 V) rating assures you it's flame-retardant
