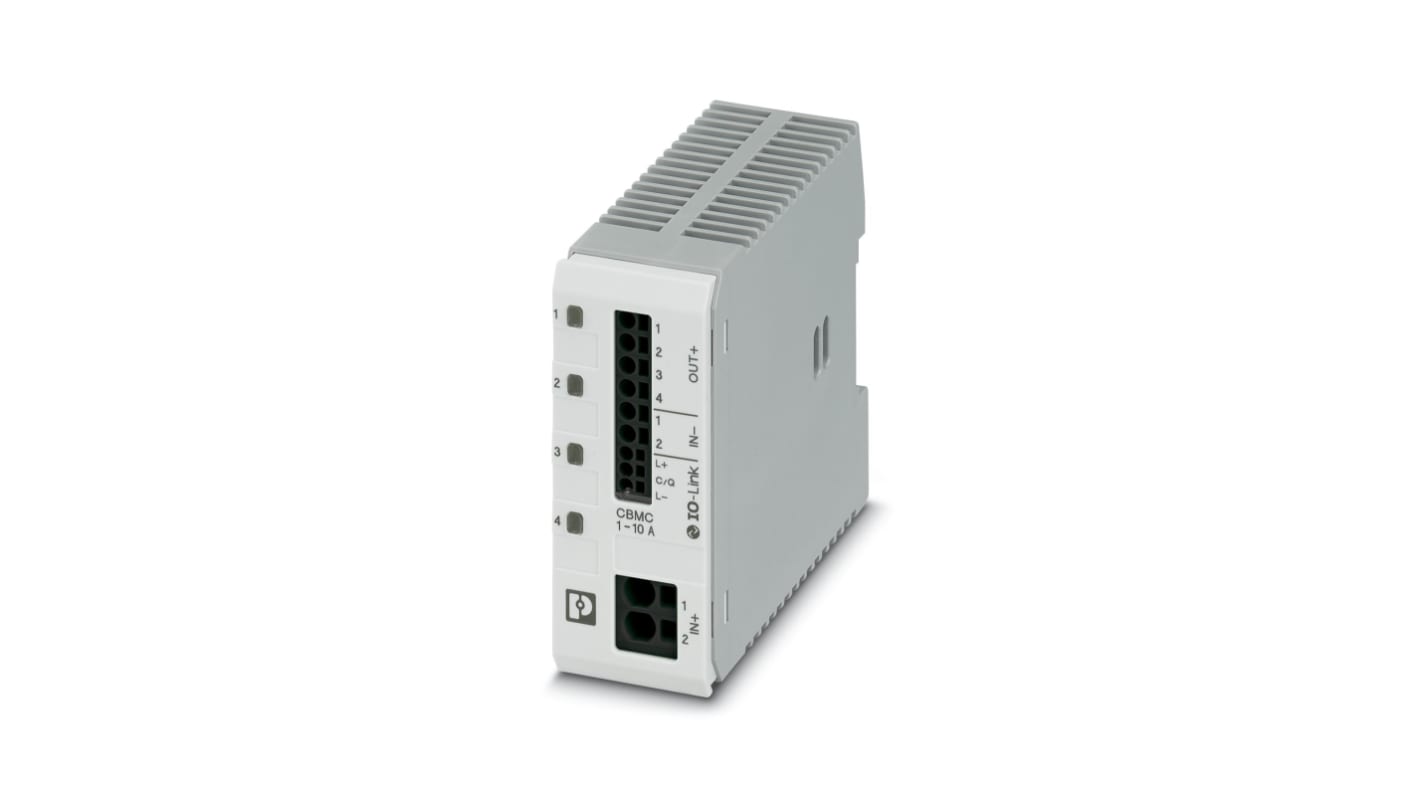

Phoenix Contact Electronic Circuit Breaker 10A 24V CBMC, DIN Rail Mount Type E
- RS 재고 번호:
- 201-5597
- Distrelec 제품 번호:
- 302-22-030
- 제조 부품 번호:
- 2910411
- 제조업체:
- Phoenix Contact
Subtotal (1 unit)*
₩275,890.00
재고있음
- 5 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당 | 한팩당 |
|---|---|
| 1 + | ₩275,890.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 201-5597
- Distrelec 제품 번호:
- 302-22-030
- 제조 부품 번호:
- 2910411
- 제조업체:
- Phoenix Contact
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Series | CBMC | |
| Current Rating | 10A | |
| Rated DC Voltage | 24V | |
| Tripping Characteristics | Type E | |
| Mounting Style | DIN Rail Mount | |
| Length | 90mm | |
| Width | 36mm | |
| Depth | 98mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Series CBMC | ||
Current Rating 10A | ||
Rated DC Voltage 24V | ||
Tripping Characteristics Type E | ||
Mounting Style DIN Rail Mount | ||
Length 90mm | ||
Width 36mm | ||
Depth 98mm | ||
- COO (Country of Origin):
- DE
Phoenix Contact CBMC Series Electronic Circuit breakerElectronic Circuit Breaker, 10A, DIN Rail - 2910411
This electronic circuit breaker by Phoenix Contact is designed for protecting four loads at 24V DC in case of overload or short circuit. It is designed to protect electronic devices against overload and short circuits in a compact and efficient manner.
Features & Benefits
• Multi-channel design with 4 channels for protecting multiple loads
• DIN rail mounting style for easy installation
• Rated DC voltage of 24V for effective circuit protection
• Electronic locking of set nominal currents for security
• Comprehensive diagnostics capabilities for system transparency
• Worldwide access through IO-Link infrastructure integration
• Secure locking mechanism with interlock feature
• Precise error categorisation and recording for convenient error diagnostics
• Fully functional even without IO-Link interface connection for autonomous operation
• DIN rail mounting style for easy installation
• Rated DC voltage of 24V for effective circuit protection
• Electronic locking of set nominal currents for security
• Comprehensive diagnostics capabilities for system transparency
• Worldwide access through IO-Link infrastructure integration
• Secure locking mechanism with interlock feature
• Precise error categorisation and recording for convenient error diagnostics
• Fully functional even without IO-Link interface connection for autonomous operation
Applications
• Ideal for protecting electronic devices against overload and short circuits
Can it protect multiple loads simultaneously?
Yes, it is designed with 4 channels to protect multiple loads effectively.
Will it be operational without an IO-Link interface connection?
Yes, the device is fully functional even without the IO-Link interface connection.
Is it suitable for applications in the automation industry?
Yes, it is ideal for applications in automation, electronics, electrical, and mechanical industries.
