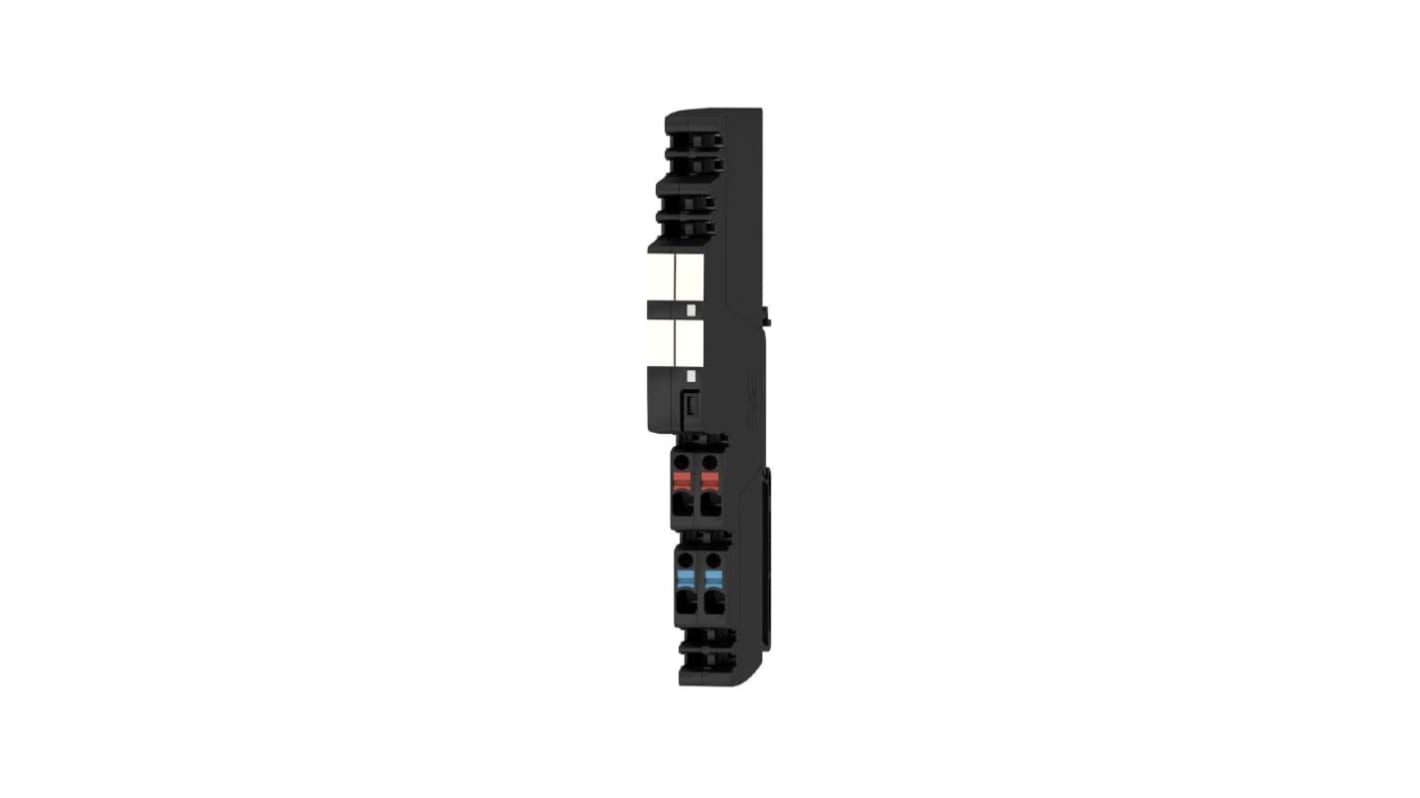

Weidmüller maxGUARD AMG ELM Electronic Circuit Breaker 25 mA 24 V, 1 channels, DIN Rail Cf. Characteristic Curve
- RS 제품 번호:
- 179-2999
- Distrelec 제품 번호:
- 301-66-845
- 제조사 부품 번호:
- 2080600000
- 제조업체:
- Weidmüller
Subtotal (1 unit)*
₩44,856.80
재고있음
- 5 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩44,856.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 179-2999
- Distrelec 제품 번호:
- 301-66-845
- 제조사 부품 번호:
- 2080600000
- 제조업체:
- Weidmüller
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Weidmüller | |
| Range | maxGUARD | |
| Product Type | Electronic Circuit Breaker | |
| Series | AMG ELM | |
| Number of Channels | 1 | |
| Current Rating | 25 mA | |
| Voltage | 24 V | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Cf. Characteristic Curve | |
| Terminal Type | Push-in | |
| Length | 12.2mm | |
| Width | 96.5 mm | |
| Depth | 125mm | |
| Standards/Approvals | CE, cULus, EAC, RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 Weidmüller | ||
Range maxGUARD | ||
Product Type Electronic Circuit Breaker | ||
Series AMG ELM | ||
Number of Channels 1 | ||
Current Rating 25 mA | ||
Voltage 24 V | ||
Mount Type DIN Rail | ||
Tripping Characteristics Cf. Characteristic Curve | ||
Terminal Type Push-in | ||
Length 12.2mm | ||
Width 96.5 mm | ||
Depth 125mm | ||
Standards/Approvals CE, cULus, EAC, RoHS | ||
- COO (Country of Origin):
- SK
Efficient machine and facility operation calls for fail-safe and maintenance-friendly control voltage distribution that can be installed in a time and space-saving manner. With the new maxGUARD system, the terminal blocks (previously installed separately) for distributing potential to the outputs of the electronic load monitors become an integral part of a 24 V DC control voltage distribution system.The innovative combination of load monitoring and potential distribution saves time during installation, increases safety against failure and reduces the amount of space required on the terminal rail by 50%.
