PULS PISA11 Electronic Circuit Breaker 20 A 24V, 4 channels, Wall

RS 제품 번호:: 401-714
Distrelec 제품 번호:: 303-31-041
제조사 부품 번호:: PISA11.406
제조업체:: PULS

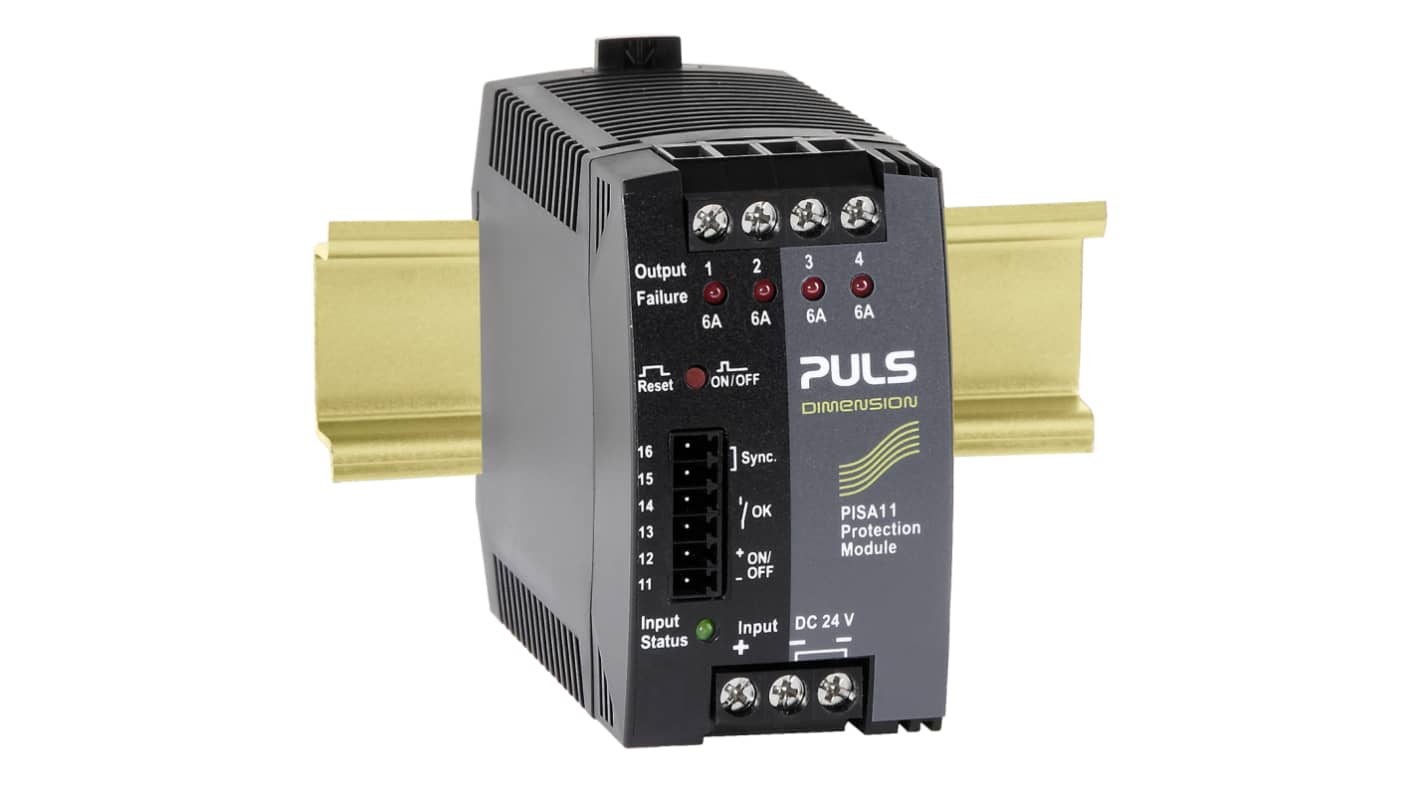

PULS PISA11 Electronic Circuit Breaker 20 A 24V, 4 channels, Wall

Subtotal (1 unit)*

₩125,788.92

단종되는 중

최종적인 585 개 unit(s)이 배송 준비 됨

수량	한팩당
1 +	₩125,788.92

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 401-714
Distrelec 제품 번호:: 303-31-041
제조사 부품 번호:: PISA11.406
제조업체:: PULS

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	PULS
	Product Type	Electronic Circuit Breaker
	Series	PISA11
	Number of Channels	4
	Current Rating	20 A
	Voltage	24V
	Mount Type	Wall
	Terminal Type	Screw
	Length	91mm
	Width	45 mm
	Depth	75mm
	Standards/Approvals	EN 55011, IEC/ CISPR 16-2-1, REACH, RoHS, UL 2367, UL 508, UL 60950-1, ATEX, EN 55032, EN 61000-6-1 and EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, IEC 60068-2-60, IEC 60079 (IECEx), IEC 60950-1, IEC/ CISPR 16-1-2

	모두 선택
	브랜드 PULS
	Product Type Electronic Circuit Breaker
	Series PISA11
	Number of Channels 4
	Current Rating 20 A
	Voltage 24V
	Mount Type Wall
	Terminal Type Screw
	Length 91mm
	Width 45 mm
	Depth 75mm
	Standards/Approvals EN 55011, IEC/ CISPR 16-2-1, REACH, RoHS, UL 2367, UL 508, UL 60950-1, ATEX, EN 55032, EN 61000-6-1 and EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, IEC 60068-2-60, IEC 60079 (IECEx), IEC 60950-1, IEC/ CISPR 16-1-2

Datasheet - PISA11.406

The PULS PISA protection module distributes current from a large power source to four lower current output channels, allowing for smaller wires. It ensures the input voltage stays above 21V, providing stable power for sensitive equipment like PLCs and sensors, while less critical loads can be connected to the current-controlled outputs.

Compact design with width only 45mm

Remote monitoring and control functions

3 year warranty

PULS PISA11 Electronic Circuit Breaker 20 A 24V, 4 channels, Wall
