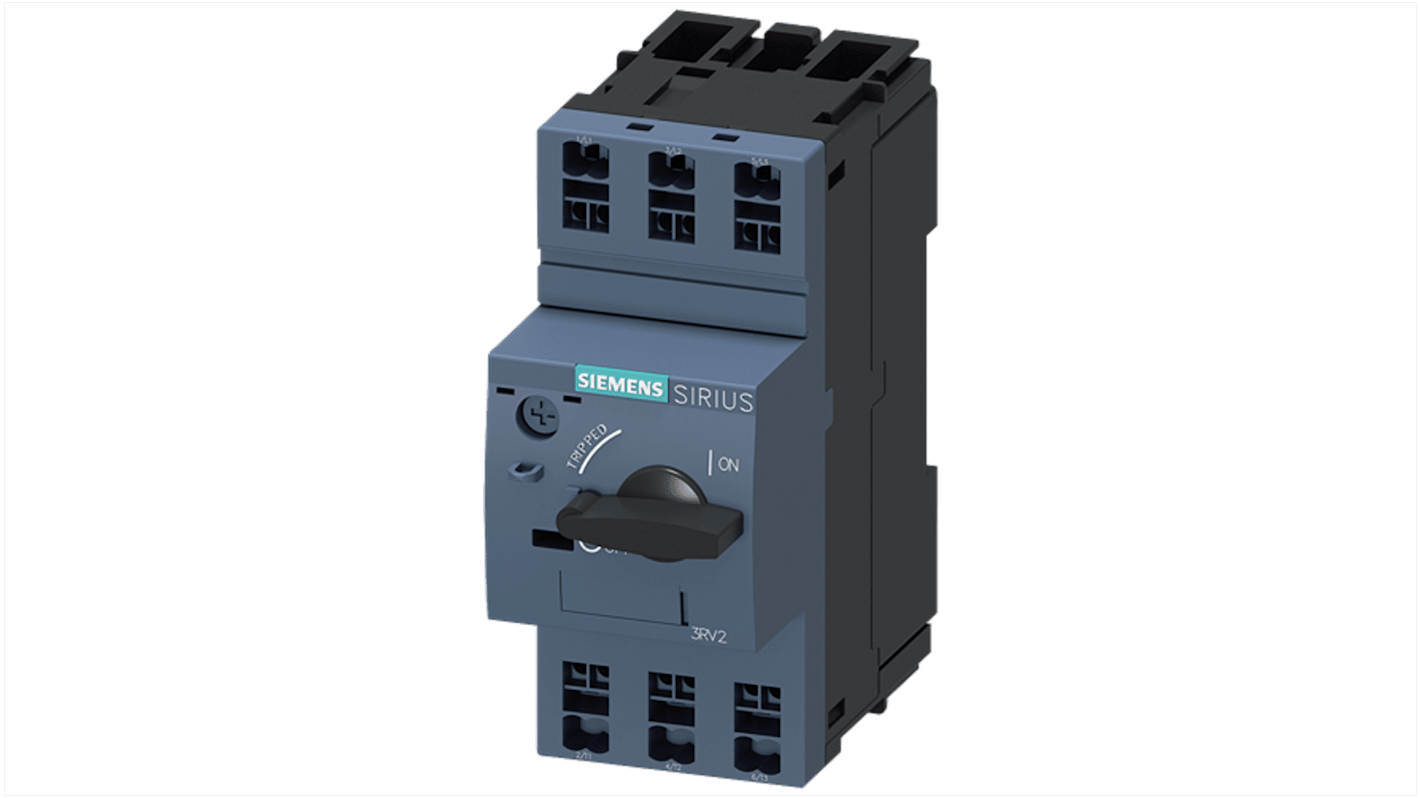

Siemens SIRIUS 3RV2 Electronic Circuit Breaker 0.4A 20V, 3 channels, DIN Rail Type A
- RS 제품 번호:
- 160-760
- 제조사 부품 번호:
- 3RV2411-0EA20
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩421,044.00
제조사가 재고 비축중
- 2026년 5월 11일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩421,044.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 160-760
- 제조사 부품 번호:
- 3RV2411-0EA20
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Product Type | Electronic Circuit Breaker | |
| Range | SIRIUS | |
| Series | 3RV2 | |
| Number of Channels | 3 | |
| Current Rating | 0.4A | |
| Breaking Capacity | 100kA | |
| Voltage | 20V | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type A | |
| Terminal Type | Spring Loaded | |
| Length | 97mm | |
| Width | 45mm | |
| Depth | 106mm | |
| Standards/Approvals | UL, UKCA, EAC, CE, CCC | |
| Better World Claim | Extended Product Life, Low Carbon Manufacture | |
| Better World Product | Yes | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Product Type Electronic Circuit Breaker | ||
Range SIRIUS | ||
Series 3RV2 | ||
Number of Channels 3 | ||
Current Rating 0.4A | ||
Breaking Capacity 100kA | ||
Voltage 20V | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type A | ||
Terminal Type Spring Loaded | ||
Length 97mm | ||
Width 45mm | ||
Depth 106mm | ||
Standards/Approvals UL, UKCA, EAC, CE, CCC | ||
Better World Claim Extended Product Life, Low Carbon Manufacture | ||
Better World Product Yes | ||
- COO (Country of Origin):
- DE
The Siemens circuit breaker is expertly designed for transformer protection, ensuring enhanced safety and reliability in electrical installations. With its compact S00 size, it seamlessly integrates into various systems where space is a premium. The unique A-release and N-release characteristics allow for both precise overload protection and improved operational efficiency, making this device an essential component for protecting your electrical equipment. Engineered for robust performance, it boasts a longevity of up to 100, 000 operating cycles, providing peace of mind in demanding environments. The circuit breaker is suitable for diverse applications, maintaining operational integrity even under extreme ambient conditions, thereby representing siemens commitment to quality and innovation.
Thermal overload release for safety
Robust mechanical service life
Easy mounting on 35 mm DIN rail
Compatible with various conductor cross-sections
High short-circuit breaking capacity
