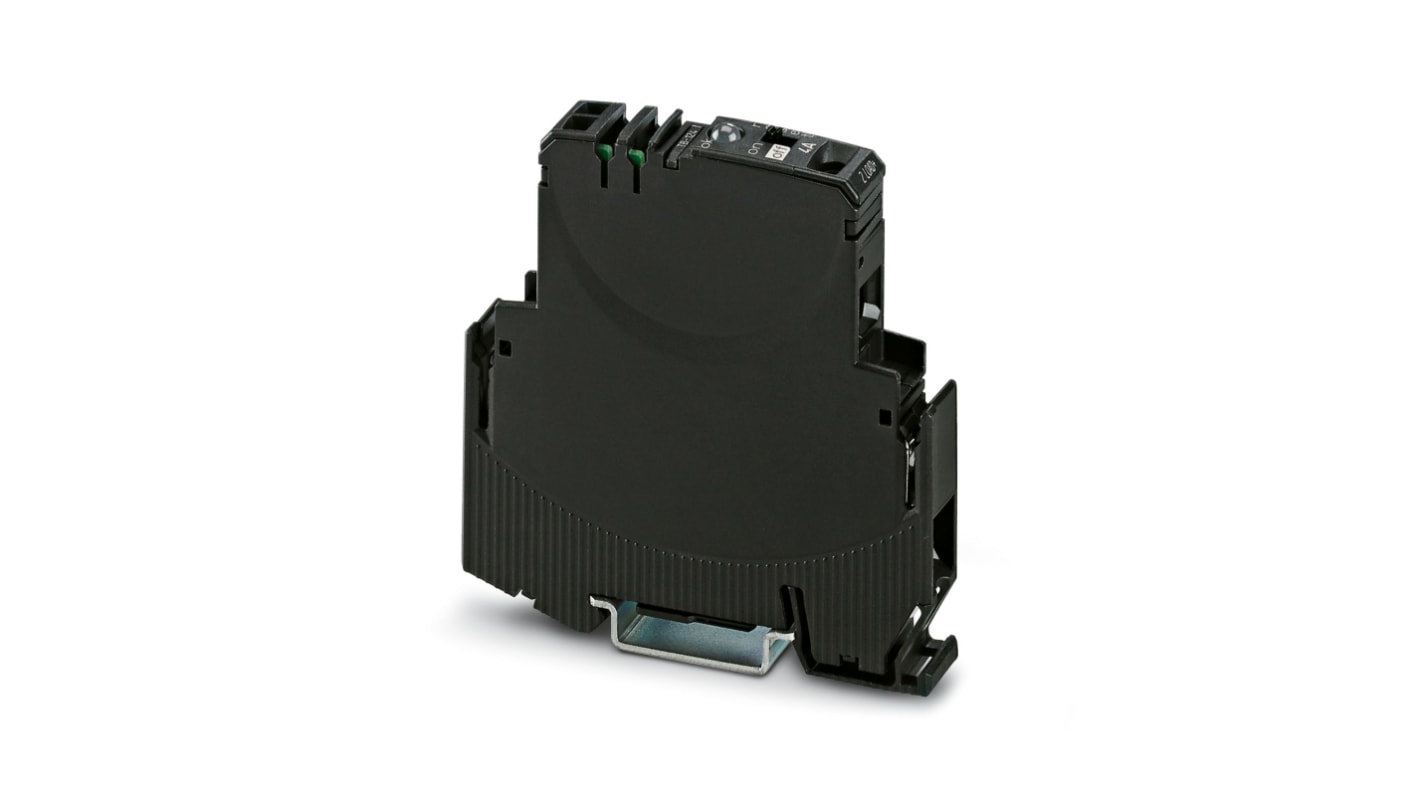

Phoenix Contact EC-E ECE Electronic Circuit Breaker 4 A 24V, 1 channels, DIN Rail Tripping Method E (electronic)
- RS 제품 번호:
- 131-308
- 제조사 부품 번호:
- 0903045
- 제조업체:
- Phoenix Contact
Subtotal (1 pack of 6 units)*
₩752,861.04
일시적 품절
- 2026년 4월 07일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 6 + | ₩125,476.84 | ₩752,864.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 131-308
- 제조사 부품 번호:
- 0903045
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Range | EC-E | |
| Product Type | Electronic Circuit Breaker | |
| Series | ECE | |
| Number of Channels | 1 | |
| Current Rating | 4 A | |
| Voltage | 24V | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Tripping Method E (electronic) | |
| Length | 80mm | |
| Width | 12.5 mm | |
| Depth | 83mm | |
| Standards/Approvals | UL 67, UL , UL, RoHS, REACH, EN 60715, DNV GL, cULus, cUL, CSA . | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Range EC-E | ||
Product Type Electronic Circuit Breaker | ||
Series ECE | ||
Number of Channels 1 | ||
Current Rating 4 A | ||
Voltage 24V | ||
Mount Type DIN Rail | ||
Tripping Characteristics Tripping Method E (electronic) | ||
Length 80mm | ||
Width 12.5 mm | ||
Depth 83mm | ||
Standards/Approvals UL 67, UL , UL, RoHS, REACH, EN 60715, DNV GL, cULus, cUL, CSA . | ||
- COO (Country of Origin):
- DE
The Phoenix Contact electronic circuit breaker is a reliable and efficient solution for protecting your electrical circuits. Designed with a 4A nominal current, this circuit breaker offers error-free short-circuit detection even across long cable paths. With active current limitation, it improves the capacity of the upstream power supply, ensuring a stable and efficient operation. The integrated status output provides increased system transparency, while the reset function allows for remote reconnection. This electronic circuit breaker is the perfect choice for ensuring the safety and performance of your electrical systems.
Error-free short-circuit detection
Active current limitation
Improved capacity of upstream power supply
Increased system transparency
Reliable and durable design
