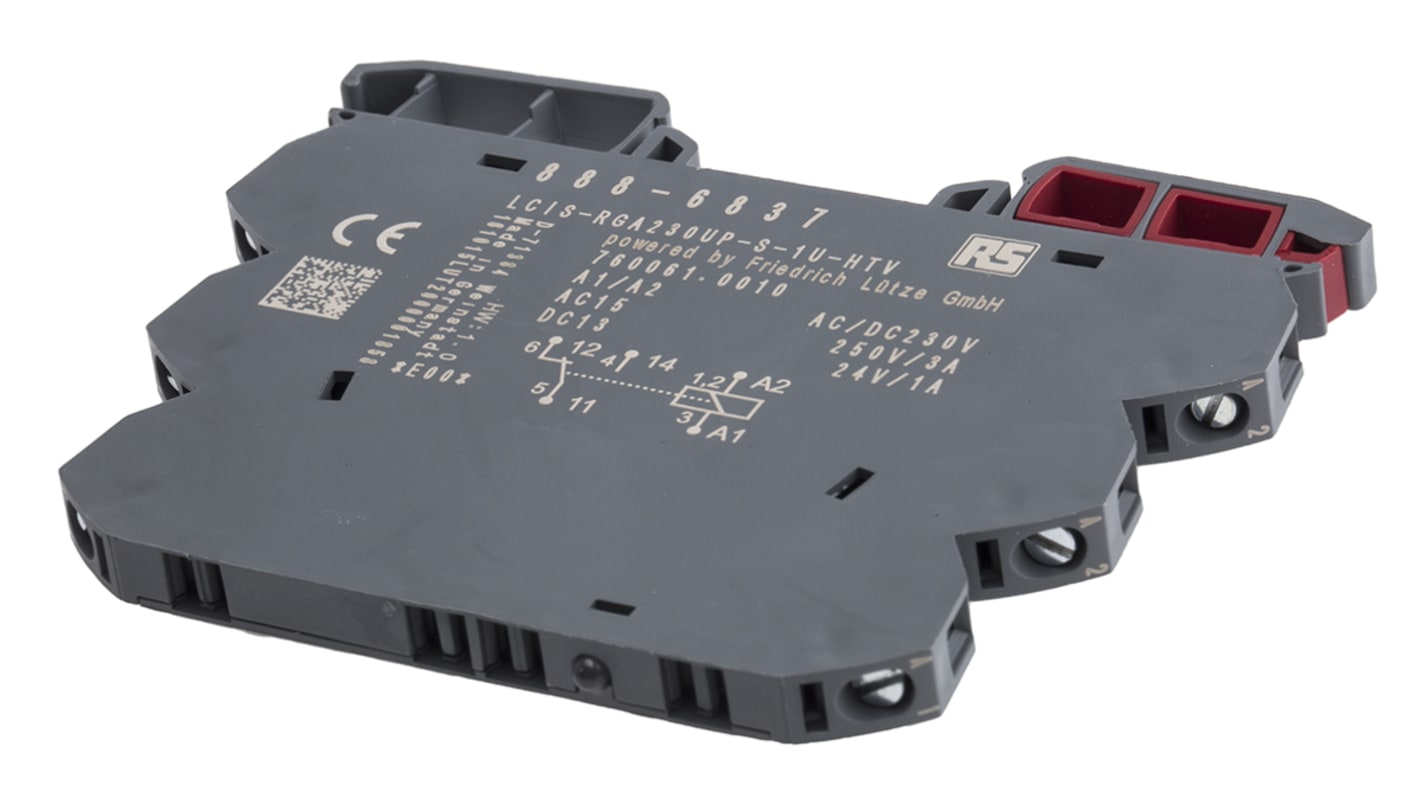

RS PRO Interface Relay, DIN Rail Mount, 230V ac/dc Coil, SPDT, 1-Pole

본 제품군 열람하기

Subtotal (1 pack of 5 units)*

₩107,893.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 3월 02일 부터 15 개 단위 배송
  • 추가로 2026년 7월 16일 부터 30 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
5 +₩21,578.64₩107,893.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
888-6837
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Coil Voltage

230V ac/dc

Contact Configuration

SPDT

Mounting Type

DIN Rail

Number of Poles

1

Terminal Type

Screw

Depth

73mm

Height

93mm

Length

6.2mm

Contact Material

Silver Alloy

Standards Met

CSA, GL, UL

Relay Switching Classification

General Purpose Relay

Minimum Operating Temperature

-25°C

Life

>50000000 (Mechanical) operations

Maximum Operating Temperature

+60°C

COO (Country of Origin):
DE

RS PRO Interface Relay Modules


Experience RS PRO Interface Relay Modules. Designed for switching, isolating, measuring, controlling, regulating, multiplying, and amplifying, these modules provide the ideal solution for all your automation requirements. Simplified installation options, featuring insulated bridges in various pin configurations, significantly reduce wiring time and complexity.
Applications include distribution boxes, RS PRO Interface Relay Modules deliver exceptional performance and efficiency, making them the perfect choice for any industrial application.

Features and Benefits


  • Selection of connections via universal connection technology with push in or screw connection

  • Every push in connections has inspection openings with a diameter of 2 mm guaranteeing secure signal tracking.

  • Relays can be labelled up to a maximum of 24 characters

  • Reduced wiring time

  • Low construction depth of 73 mm to 76 mm

  • Suitable for temperatures of -40°C to +85°C

Approvals


UL, CSA, GL

Applications


  • Relay & Signal Conditioning
