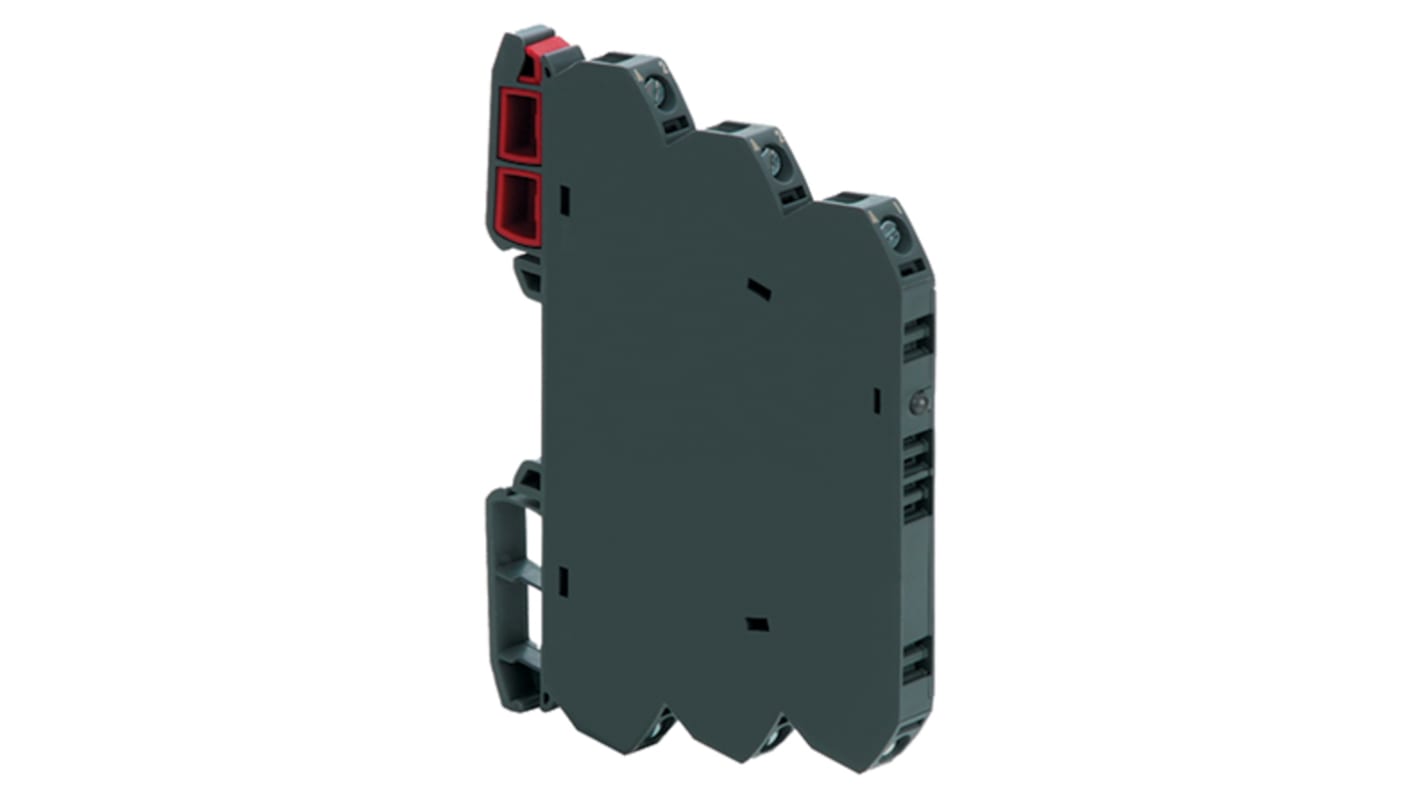

RS PRO 76XX Series Interface Relay, DIN Rail, 115V ac/dc Coil, SPDT

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩94,750.50

Add to Basket
수량 선택 또는 입력
재고있음
  • 85 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
한팩당*
5 - 20₩18,950.10₩94,750.50
25 +₩15,596.10₩77,980.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
888-6824
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Coil Voltage

115V ac/dc

Product Type

Interface Relay

Contact Configuration

SPDT

Mount Type

DIN Rail

Series

76XX

Terminal Type

Screw

Switching Current

6A

Switching AC Voltage

250V ac

Switching DC Voltage

250V dc

Minimum Operating Temperature

-25°C

Contact Material

Silver Alloy

Maximum Operating Temperature

60°C

Width

73mm

Length

6.2mm

Standards/Approvals

UL, GL, CSA

Height

93mm

COO (Country of Origin):
DE

RS PRO Interface Relay Modules


Experience RS PRO Interface Relay Modules. Designed for switching, isolating, measuring, controlling, regulating, multiplying, and amplifying, these modules provide the ideal solution for all your automation requirements. Simplified installation options, featuring insulated bridges in various pin configurations, significantly reduce wiring time and complexity.

Applications include distribution boxes, RS PRO Interface Relay Modules deliver exceptional performance and efficiency, making them the perfect choice for any industrial application.

Features and Benefits


  • Selection of connections via universal connection technology with push in or screw connection

  • Every push in connections has inspection openings with a diameter of 2 mm guaranteeing secure signal tracking.

  • Relays can be labelled up to a maximum of 24 characters

  • Reduced wiring time

  • Low construction depth of 73 mm to 76 mm

  • Suitable for temperatures of -40°C to +85°C

    • Approvals


    UL, CSA, GL

    Applications


  • Relay & Signal Conditioning
