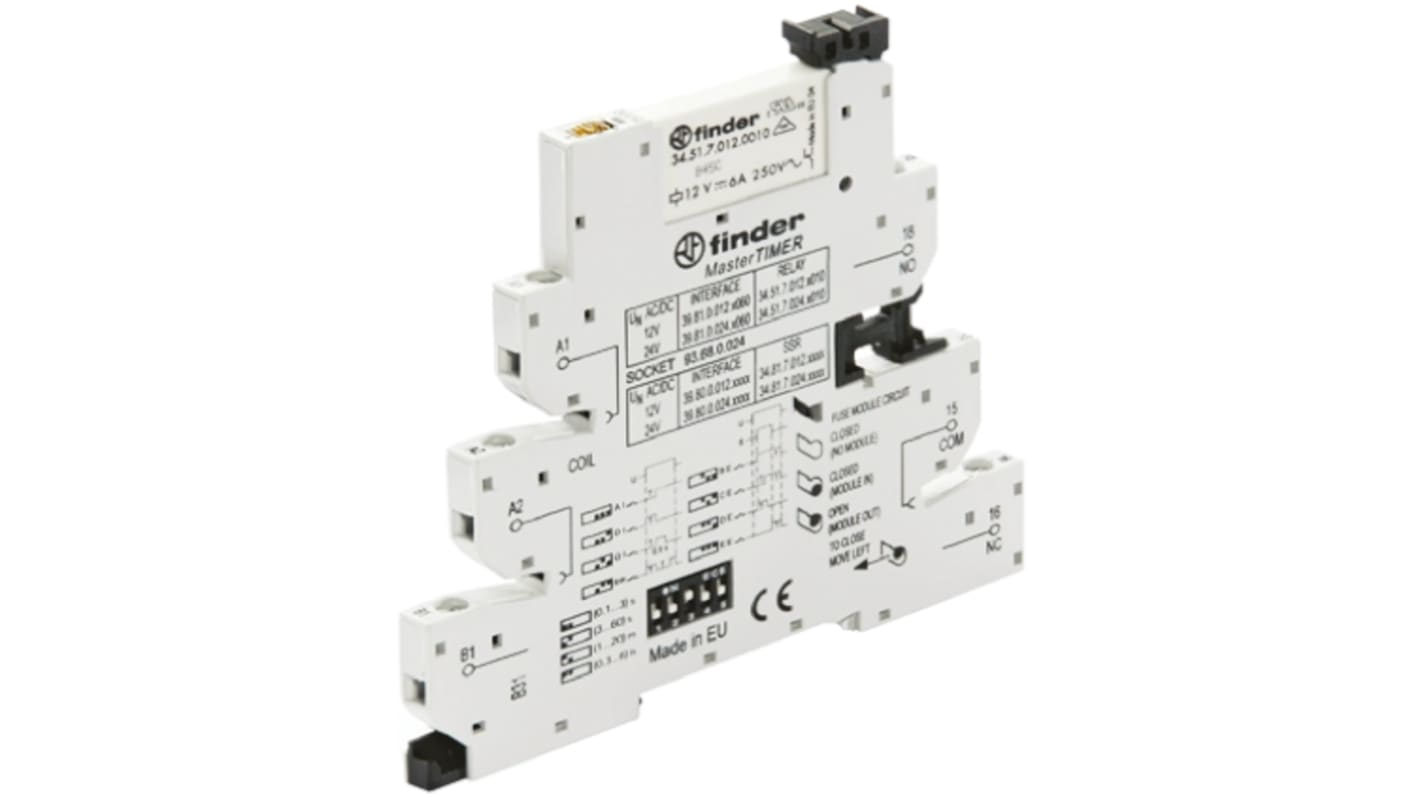

Finder 39 Series Interface Relay Module, DIN Rail Mount, 12V ac/dc Coil, SPDT, 1-Pole, 6/10A Load
- RS 제품 번호:
- 788-8692
- 제조사 부품 번호:
- 39.81.0.012.0060
- 제조업체:
- Finder
Subtotal (1 unit)*
₩83,190.00
재고있음
- 추가로 2026년 3월 02일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩83,190.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 788-8692
- 제조사 부품 번호:
- 39.81.0.012.0060
- 제조업체:
- Finder
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Finder | |
| Coil Voltage | 12V ac/dc | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Number of Poles | 1 | |
| Series | 39 Series | |
| Load Current Rating | 6/10A | |
| Maximum Input Voltage | 13.2V ac/dc | |
| Load Voltage Rating | 250/400V ac | |
| Minimum Input Voltage | 9.6V ac/dc | |
| Terminal Type | Screw | |
| Switching Voltage | 250 → 400V ac | |
| Depth | 90.7mm | |
| Height | 94.3mm | |
| Length | 6.2mm | |
| Contact Material | Silver Alloy | |
| Input Current | 15mA | |
| Life | 60000 Cycles | |
| Dimensions | 90.7 x 6.2 x 94.3mm | |
| Minimum Operating Temperature | -20°C | |
| Operating Temperature Range | -20 → +50°C | |
| Relay Type | Interface Relay | |
| Turn Off Time | 50ms | |
| Accessory Type | Interface Relay | |
| Turn On Time | 50ms | |
| Standards Met | cURus, EAC | |
| Special Features | Protection category IP 20 | |
| Input Voltage Range | 9.6 → 13.2V | |
| Maximum Operating Temperature | +50°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Finder | ||
Coil Voltage 12V ac/dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Number of Poles 1 | ||
Series 39 Series | ||
Load Current Rating 6/10A | ||
Maximum Input Voltage 13.2V ac/dc | ||
Load Voltage Rating 250/400V ac | ||
Minimum Input Voltage 9.6V ac/dc | ||
Terminal Type Screw | ||
Switching Voltage 250 → 400V ac | ||
Depth 90.7mm | ||
Height 94.3mm | ||
Length 6.2mm | ||
Contact Material Silver Alloy | ||
Input Current 15mA | ||
Life 60000 Cycles | ||
Dimensions 90.7 x 6.2 x 94.3mm | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +50°C | ||
Relay Type Interface Relay | ||
Turn Off Time 50ms | ||
Accessory Type Interface Relay | ||
Turn On Time 50ms | ||
Standards Met cURus, EAC | ||
Special Features Protection category IP 20 | ||
Input Voltage Range 9.6 → 13.2V | ||
Maximum Operating Temperature +50°C | ||
- COO (Country of Origin):
- IT
Finder 39 Series Interface Relay Module, 12V Coil Voltage, SPDT Contact Configuration - 39.81.0.012.0060
This interface relay module is designed for efficient automation processes. With an SPDT configuration, this 12V relay ensures reliable switching of electrical circuits. Measuring 90.7mm in depth, 6.2mm in length, and 94.3mm in height, it is tailored for DIN rail mounting, making it a compact and convenient addition to any control panel.
Features & Benefits
• Operates on a coil voltage of 12V AC/DC
• Supports load current ratings of 6/10A
• Maximum switching voltage ranges from 250V to 400V AC
• Offers IP20 protection, safeguarding against solid objects
• Designed for continuous operation within -20°C to +50°C
• Fast turn-on and turn-off times of 50ms each
• Supports load current ratings of 6/10A
• Maximum switching voltage ranges from 250V to 400V AC
• Offers IP20 protection, safeguarding against solid objects
• Designed for continuous operation within -20°C to +50°C
• Fast turn-on and turn-off times of 50ms each
Applications
• Used for automation systems in industrial settings
• Employed in control circuits for mechanical systems
• Suitable for HVAC systems needing reliable relay operations
• Integrates seamlessly into home automation projects
• Utilised in switching tasks within electrical distribution panels
• Employed in control circuits for mechanical systems
• Suitable for HVAC systems needing reliable relay operations
• Integrates seamlessly into home automation projects
• Utilised in switching tasks within electrical distribution panels
What is the performance capability of this interface relay module in different environmental conditions?
It functions effectively within an operating temperature range of -20°C to +50°C, making it suitable for various climates.
How does the switching voltage affect the applications of this relay module?
The switching voltage capabilities of 250V to 400V AC allow it to manage diverse loads efficiently, enhancing versatility in industrial applications.
What type of electrical connections does this relay module support?
It features screw terminal connections, providing reliable and secure electrical links to control circuits and other components.
How many cycles can this interface relay module handle during its lifespan?
Designed for a lifespan of approximately 60,000 cycles, it ensures longevity and durability for continuous operations in demanding environments.
