ABB R600 Series Interface Relay, DIN Rail, 24V ac/dc Coil, SPST, 10mA
- RS 제품 번호:
- 669-9952
- 제조사 부품 번호:
- 1SNA645014R2700 RB111-24VUC
- 제조업체:
- ABB
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩38,376.00
재고있음
- 추가로 2026년 4월 20일 부터 36 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩38,376.00 |
| 10 - 19 | ₩36,952.50 |
| 20 + | ₩36,055.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 669-9952
- 제조사 부품 번호:
- 1SNA645014R2700 RB111-24VUC
- 제조업체:
- ABB
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ABB | |
| Coil Voltage | 24V ac/dc | |
| Product Type | Interface Relay | |
| Contact Configuration | SPST | |
| Mount Type | DIN Rail | |
| Series | R600 | |
| Terminal Type | Screw | |
| Switching Current | 6A | |
| Coil Current | 10mA | |
| Switching DC Voltage | 24V dc | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 70mm | |
| Width | 6mm | |
| Standards/Approvals | CE | |
| Height | 75mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 ABB | ||
Coil Voltage 24V ac/dc | ||
Product Type Interface Relay | ||
Contact Configuration SPST | ||
Mount Type DIN Rail | ||
Series R600 | ||
Terminal Type Screw | ||
Switching Current 6A | ||
Coil Current 10mA | ||
Switching DC Voltage 24V dc | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Length 70mm | ||
Width 6mm | ||
Standards/Approvals CE | ||
Height 75mm | ||

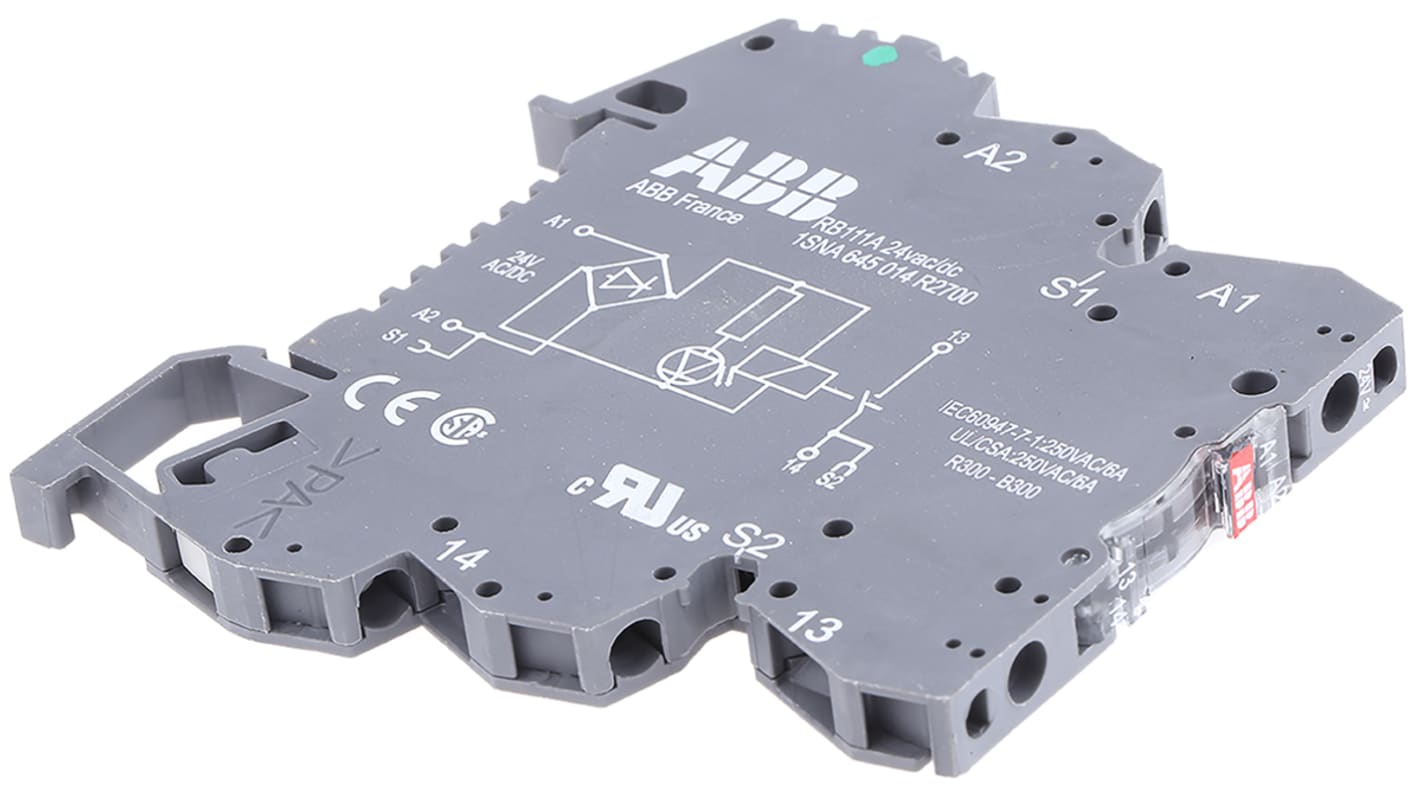

ABB Interface Relay, 0.02kg Weight, 75mm Height - R600 Series - 1SNA645014R2700
Keep your automated processes on the move with the help of this interface relay from ABB. It's ideal for amplification, signal matching and isolating current between your input and output devices. As it's equally at home when used with field bus systems, PC or PLCs, this is a versatile choice. It uses a coil energised by 24V AC/DC for wide compatibility. As the unit's housing is soldered on, it works effectively even in areas of high vibration so it's able to withstand demanding industrial settings. Screw terminals make installation fast and straightforward using just your favourite screwdriver.
Features & Benefits
• DIN rail compatible for quick and easy mounting
• Compact dimensions of 70 (L) x 6 (D) x 75mm (H) for space-efficiency
• Built-in LEDs for at-a-glance status monitoring of your operations
• Housing stops burning in less than 10 seconds in the event of a fire
Applications
• Power supplies
• Radio-electronic systems
• Medical equipment
Can I use this relay in harsh conditions?
Yes. This assembly operates in a broad temperature range between -20°C and +70°C, so it's suitable for use in challenging environments.
