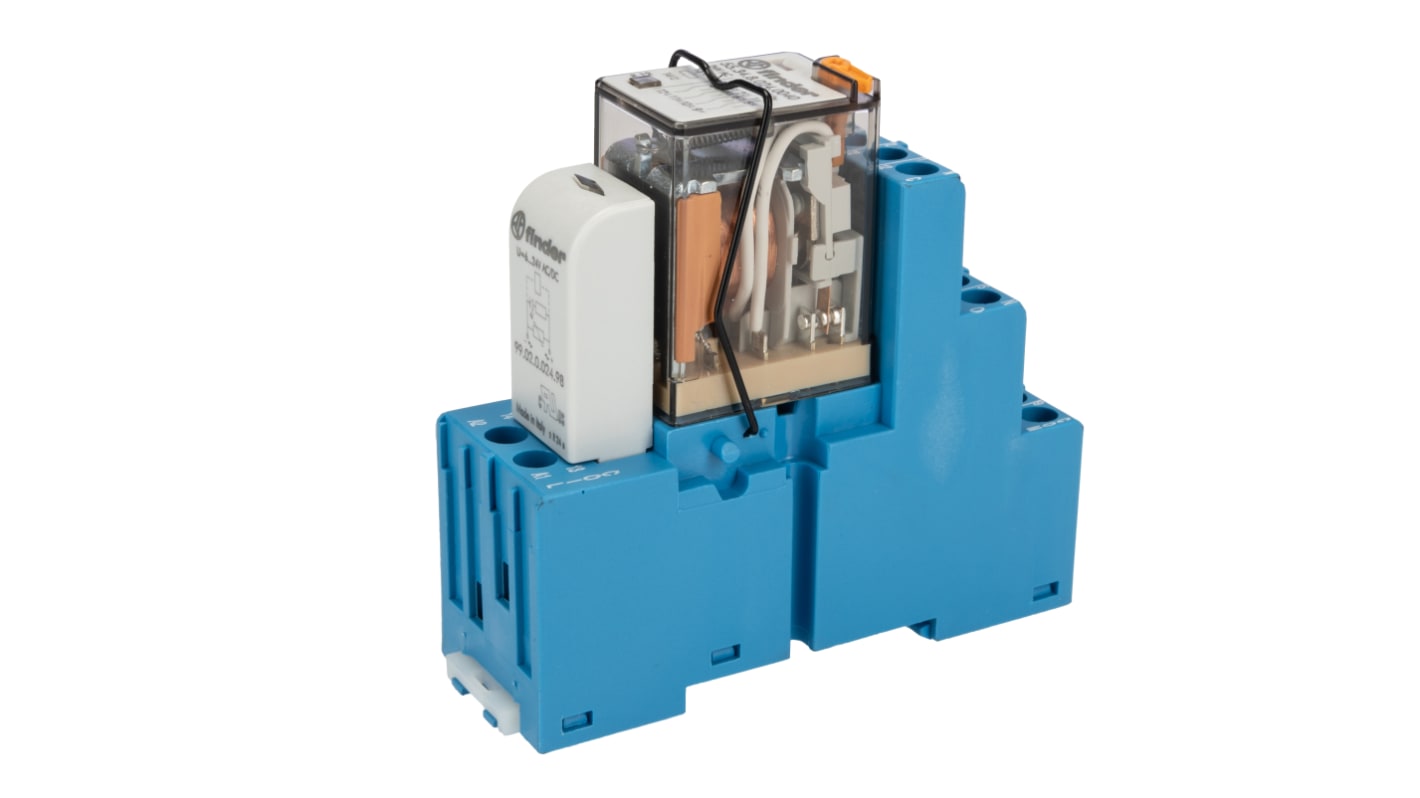

Finder 58 Series Interface Relay, DIN Rail Mount, 24V ac Coil, 4PDT, 4-Pole

RS 제품 번호:: 623-7315
제조사 부품 번호:: 58.34.8.024.0060SMA
제조업체:: Finder

Finder 58 Series Interface Relay, DIN Rail Mount, 24V ac Coil, 4PDT, 4-Pole

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩47,188.00

재고있음

99 개 단위 배송 준비 완료
추가로 2026년 1월 30일 부터 40 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 5	₩47,188.00
6 - 11	₩45,308.00
12 +	₩43,409.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 623-7315
제조사 부품 번호:: 58.34.8.024.0060SMA
제조업체:: Finder

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Finder
	Coil Voltage	24V ac
	Contact Configuration	4PDT
	Mounting Type	DIN Rail
	Number of Poles	4
	Series	58 Series
	Maximum Input Voltage	26.4V
	Minimum Input Voltage	19.2V
	Switching Voltage	250V
	Terminal Type	Screw
	Depth	86.9mm
	Height	78.4mm
	Length	27mm
	Contact Material	Silver Alloy
	Input Current	53mA
	Turn On Time	10ms
	Input Resistance	190Ω
	Maximum Operating Temperature	+70°C
	Standards Met	CE, EAC
	Relay Switching Classification	Interface Relay
	Relay Type	Interface Relay
	Accessory Type	Interface
	Dimensions	27 x 73 x 78.4mm
	Turn Off Time	10ms
	Operating Temperature Range	-40 → +70°C
	Life	20000000 Cycles
	Minimum Operating Temperature	-40°C

	모두 선택
	브랜드 Finder
	Coil Voltage 24V ac
	Contact Configuration 4PDT
	Mounting Type DIN Rail
	Number of Poles 4
	Series 58 Series
	Maximum Input Voltage 26.4V
	Minimum Input Voltage 19.2V
	Switching Voltage 250V
	Terminal Type Screw
	Depth 86.9mm
	Height 78.4mm
	Length 27mm
	Contact Material Silver Alloy
	Input Current 53mA
	Turn On Time 10ms
	Input Resistance 190Ω
	Maximum Operating Temperature +70°C
	Standards Met CE, EAC
	Relay Switching Classification Interface Relay
	Relay Type Interface Relay
	Accessory Type Interface
	Dimensions 27 x 73 x 78.4mm
	Turn Off Time 10ms
	Operating Temperature Range -40 → +70°C
	Life 20000000 Cycles
	Minimum Operating Temperature -40°C

COO (Country of Origin):: IT

Finder Series 58 Interface Relay, 24V AC Coil Voltage, 4PDT Contact Configuration - 58.34.8.024.0060SMA

This interface relay provides control in various automation and mechanical applications. With a coil voltage of 24V AC, it assures reliability in industrial relay tasks. Its robust construction enables it to withstand diverse environmental conditions.

Features & Benefits

• Silver alloy contacts enhance conductivity
• Wide input voltage range from 19.2V to 26.4V
• Quick switching with 10ms turn-on and turn-off times
• Designed for DIN rail mounting for convenient installation
• Handles high voltage switching up to 250V
• Incorporates advanced EMC suppression for improved safety

Applications

• Integrated into control panels for automated systems
• Used in packaging machinery for precise operations
• Suitable for textile machines requiring dependable switching
• Applied in hoists and cranes for efficient load handling
• Utilised in carousel warehouses for streamlined inventory management

What is the maximum operating temperature for this device?

It can operate reliably in temperatures up to +70°C.

Can this relay be used with both AC and DC systems?

Yes, it is compatible with both AC and DC coil configurations.

How does the relay manage voltage fluctuations?

The broad input voltage range allows effective management of fluctuations.

Is there a specific mounting requirement for installation?

It is designed for standard DIN rail mounting.

What maintenance is needed for optimum performance?

Regular inspection and ensuring clean connections will maintain functionality.

Approvals

BBJ; BEAB; CSA; DEMKO; FIMKO; GOST; IMQ; NEMKO; RINA; SEMKO; SEV; UL recognised component for Canada and US; UTE; VDE
