- RS 제품 번호:
- 494-0558
- 제조사 부품 번호:
- RT3S5LC4 7-1415073-1
- 제조업체:
- TE Connectivity
74 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩25,907.998
수량 | 한팩당 |
1 - 9 | ₩25,907.998 |
10 - 19 | ₩24,873.058 |
20 + | ₩23,838.118 |
- RS 제품 번호:
- 494-0558
- 제조사 부품 번호:
- RT3S5LC4 7-1415073-1
- 제조업체:
- TE Connectivity
참조 문서
제정법과 컴플라이언스
제품 세부 사항

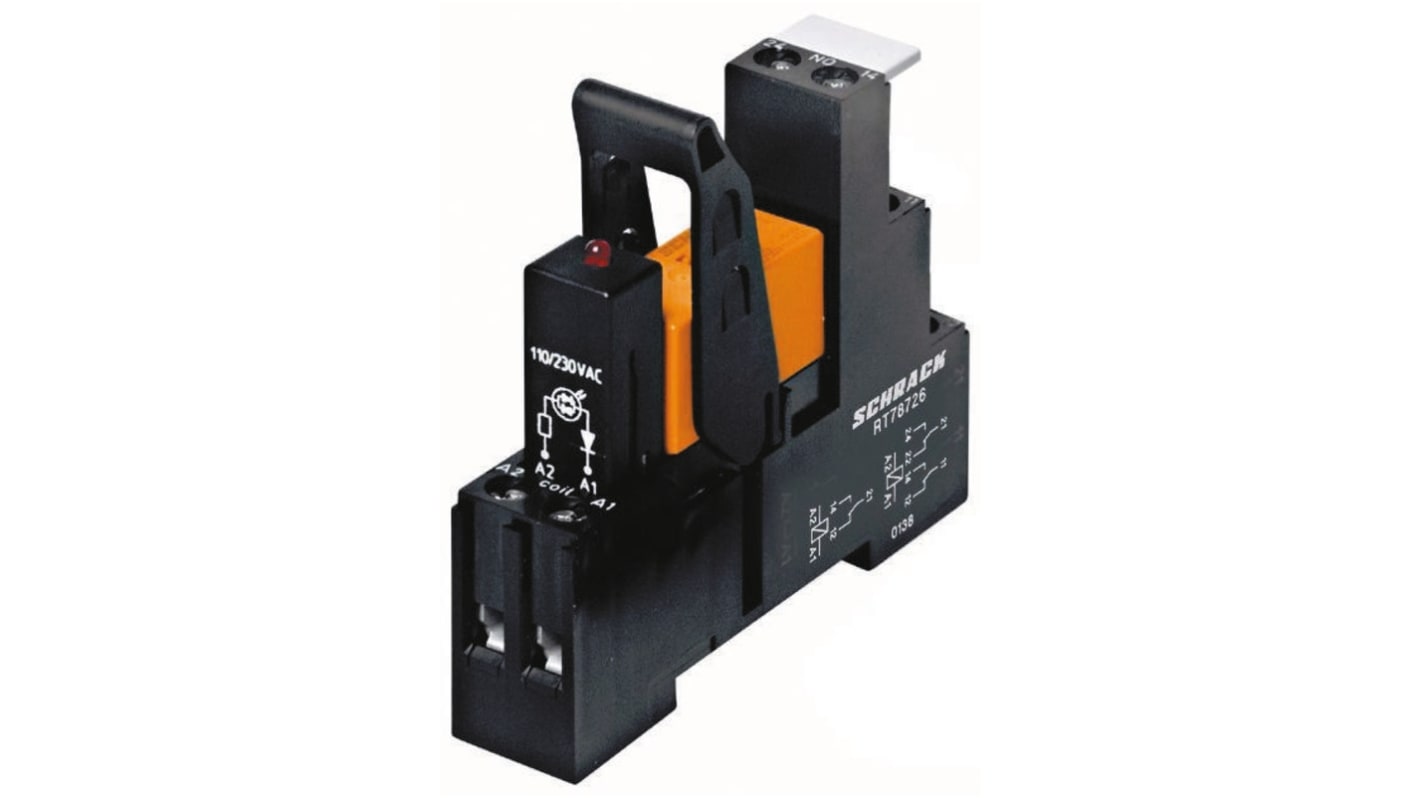

RT Series Relay Module
Sensitive DC or AC coil
Module width 15.5 mm
DIN rail assembly
Relay module consists of RT relay, DIN rail socket, plastic retention bracket, module and labels
Red LED display
Module width 15.5 mm
DIN rail assembly
Relay module consists of RT relay, DIN rail socket, plastic retention bracket, module and labels
Red LED display
Approvals
VDE, UL
사양
속성 | 값 |
---|---|
Coil Voltage | 24V dc |
Contact Configuration | SPDT |
Mounting Type | DIN Rail |
Number of Poles | 1 |
Terminal Type | Screw |
Switching Voltage | 240 → 400V ac |
Depth | 15.8mm |
Height | 69mm |
Length | 77mm |
Series | RT |
Contact Material | Gold Plated |
Input Current | 16.7mA |
Dimensions | 77 x 15.8 x 69mm |
Special Features | Degree of protection IP20 |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +85°C |
Input Resistance | 1.44kΩ |
Turn Off Time | 3ms |
Turn On Time | 7ms |
Operating Temperature Range | -20 → +85°C |
