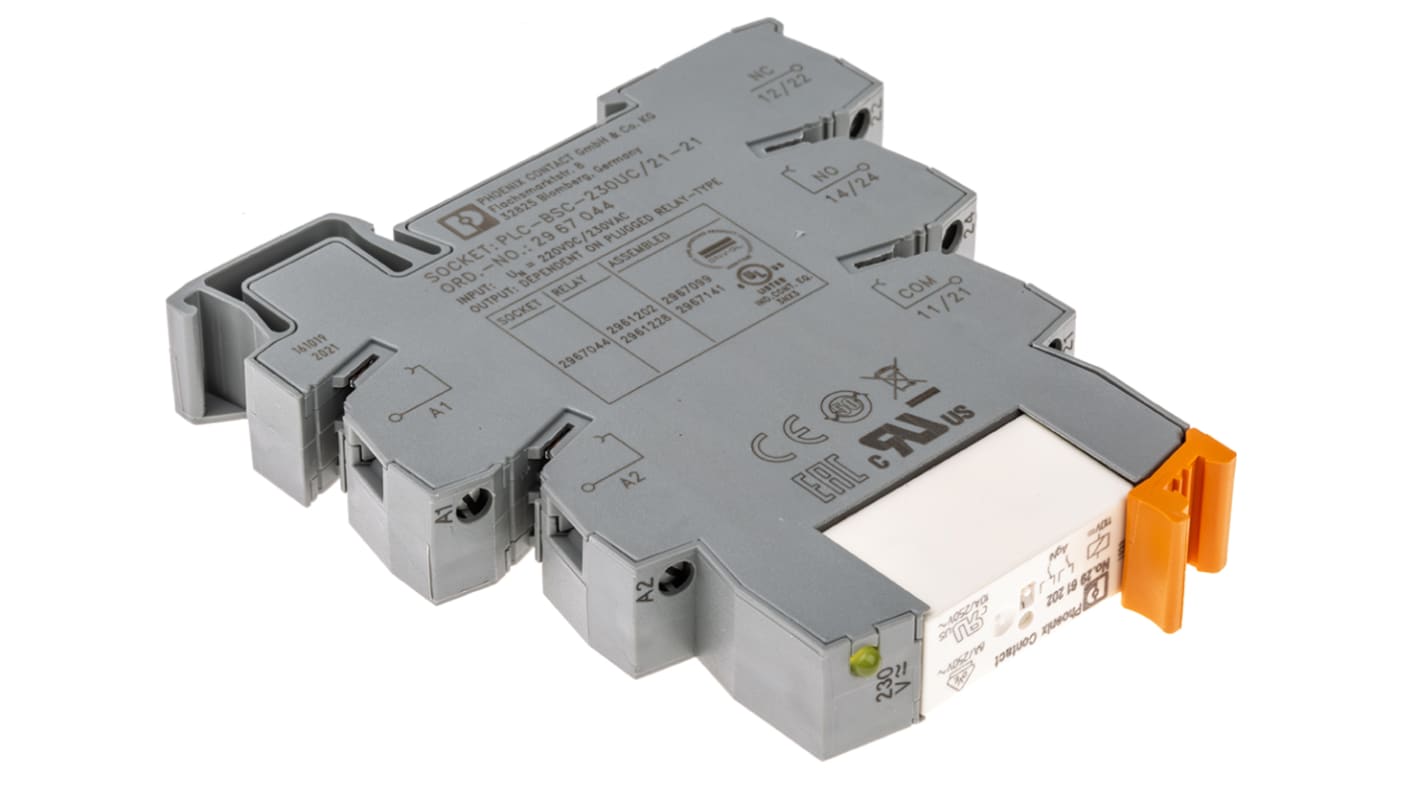

Phoenix Contact PLC-RSC-230UC/21-21 Series Interface Relay, DIN Rail Mount, 230V ac Coil, DPDT, 2-Pole

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩49,030.40

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 11 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 11₩49,030.40
12 - 24₩47,075.20
25 +₩45,120.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
434-1361
제조사 부품 번호:
2967099
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Coil Voltage

230V ac

Contact Configuration

DPDT

Mounting Type

DIN Rail

Number of Poles

2

Series

PLC-RSC-230UC/21-21

Maximum Input Voltage

220 V dc, 230V ac

Minimum Input Voltage

179.4V ac

Load Voltage Rating

250V

Switching Voltage

250V ac/dc

Terminal Type

Screw

Depth

14mm

Height

94mm

Length

80mm

Contact Material

Silver Alloy

Input Current

(dc) 4.3 mA, (ac) 4.5mA

Minimum Operating Temperature

-40°C

Relay Switching Classification

Miniature Relay

Relay Type

Solid State Relay

Accessory Type

Relay Module

Maximum Operating Temperature

+55°C

Operating Temperature Range

-40 → +55°C

Life

3 x 10^7 Cycles

Turn On Time

7ms

Input Voltage Range

220 V dc, 230V ac

Dimensions

80 x 14 x 94mm

Turn Off Time

10ms

COO (Country of Origin):
DE
A 6.2 mm PLC interface relay module designed to be mountable on DIN rail NS 35/7.5. Featuring a basic terminal block with screw connection and a plug-in miniature power relay.

Phoenix Contact PLC-RCS Relays Series


This range of compact PLC relays from Phoenix Contact gives you a great choice of easy connection technology. The electromechanical relays act as the interface between your automation equipment and system peripherals.

Features and Benefits:


• Saves space on the DIN rail
• Cost-effective
• Use the same electromechanical relay module design for both AC and DC switching voltage
• DIN rail mounting
• SPNO and SPDT models available
• Yellow LED operating voltage display
• Free-wheeling diode Damping diode
• Dimensions 94 x 80 x 6.2 mm

Typical Applications:


The PLC relays are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

PLC-RSC-230UC/21-21 2967099


Looking for a DIN-rail-mounting interface relay module to connect automation equipment to system peripherals? Turn to this compact PLC (programmable logic controller) relay from Phoenix Contact. It has a space-saving design that uses the same electromechanical relay module for switching both AC and DC voltage, which uses less room on your DIN rail. It features a basic terminal block with a plug-in miniature power relay.
The DPDT (double pole, double throw) configuration makes this a versatile device that can connect two inputs to four outputs. Screw terminals let you quickly make secure connections, while its operating temperature range of -25°C to +55°Cmakes it suitable for a range of work environments.
A freewheeling damping diode protects the circuit from sudden current losses, while the LED (light-emitting diode) operating voltage display makes it easy to monitor performance. PLC relays such as this are used to control automated industrial processes.

• Coil voltage of 230 V AC
• DPDT contact configuration
• Silver alloy contact material
• Dimensions of 80 (length) x 94 (height) x 14 mm (depth)
• Input current of 4.3 (DC) mA, 4.5 (AC) mA
• Input voltage range of 220 V DC to 230 V AC
• Load voltage rating of 250 V
• Switching current of 10 mA
