Wieland Flare Series Interface Relay, DIN Rail, 24V dc Coil, SPDT, 14mA
- RS 제품 번호:
- 341-4812
- Distrelec 제품 번호:
- 304-23-932
- 제조사 부품 번호:
- 80.010.4100.0
- 제조업체:
- Wieland
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩56,100.00
마지막 RS 재고
- 280 개 단위 배송 준비 완료
- 추가로 2026년 10월 09일 부터 1,600 개 단위 배송
- 2026년 10월 29일 부터 최종 500 개 단위 배송
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩56,100.00 |
| 10 - 19 | ₩53,840.00 |
| 20 + | ₩51,640.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 341-4812
- Distrelec 제품 번호:
- 304-23-932
- 제조사 부품 번호:
- 80.010.4100.0
- 제조업체:
- Wieland
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Wieland | |
| Coil Voltage | 24V dc | |
| Product Type | Interface Relay | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | Flare | |
| Terminal Type | Cage Clamp | |
| Switching Current | 6A | |
| Switching DC Voltage | 24V dc | |
| Coil Current | 14mA | |
| Minimum Operating Temperature | 0°C | |
| Coil Type | Latching | |
| Maximum Operating Temperature | 60°C | |
| Contact Material | Silver Alloy | |
| Width | 6.2mm | |
| Length | 70mm | |
| Height | 98mm | |
| Standards/Approvals | CSA, UL | |
| 모두 선택 | ||
|---|---|---|
브랜드 Wieland | ||
Coil Voltage 24V dc | ||
Product Type Interface Relay | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series Flare | ||
Terminal Type Cage Clamp | ||
Switching Current 6A | ||
Switching DC Voltage 24V dc | ||
Coil Current 14mA | ||
Minimum Operating Temperature 0°C | ||
Coil Type Latching | ||
Maximum Operating Temperature 60°C | ||
Contact Material Silver Alloy | ||
Width 6.2mm | ||
Length 70mm | ||
Height 98mm | ||
Standards/Approvals CSA, UL | ||
제외
- COO (Country of Origin):
- DE

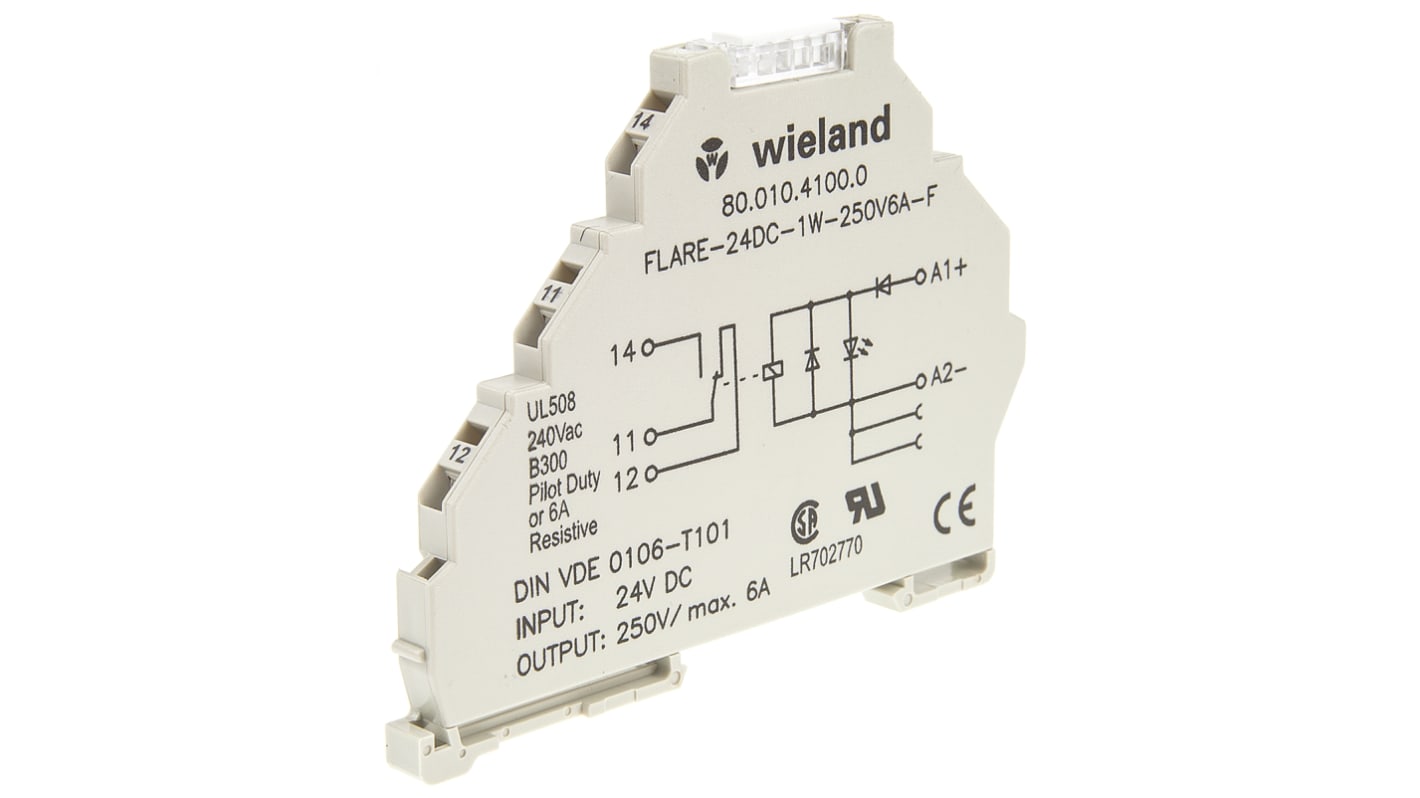

Relay Module Flare -24DC-1W-250V6A-F
From the Flare Series this compact coupling relay features a number of functions and can be mounted to any DIN rail for use in a number of industrial applications.
Features and Benefits
• Spring clamp connection
• Operating Voltage 24 V DC
• DIN rail mounting
• 1 change-over contact
• Voltage range of 19.2 to 30 V DC
• Mechanical relay has a mounting width of 6.2 mm
• Wide operating temperature of between 0 to +60 °C
Terminal Block Relay
DIN rail mounting, hermetically sealed
Plug in jumpers to link common potentials
Status LED and marking label
Integrated diodes for coil suppression and polarity protection
Contact rating 6A/250V ac
Switching voltage 250 Vac
Operating temperature range 0 to +50°C
Approvals
CSA; UL recognised
