Phoenix Contact PLC-RSC- 24DC/ 1ICT/ACT Series Relay Module, DIN Rail, 24V dc Coil, SPST

Subtotal (1 pack of 10 units)*

₩399,800.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 10 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
10 +₩39,980.00₩399,800.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
226-0487
제조사 부품 번호:
1078680
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Coil Voltage

24V dc

Product Type

Relay Module

Contact Configuration

SPST

Mount Type

DIN Rail

Series

PLC-RSC- 24DC/ 1ICT/ACT

Terminal Type

Screw

Switching Current

100mA

Switching DC Voltage

250V dc

Switching AC Voltage

250V ac

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

60°C

Contact Material

Silver Tin Oxide

Width

14mm

Height

80mm

Standards/Approvals

RoHS

Length

94mm

COO (Country of Origin):
DE

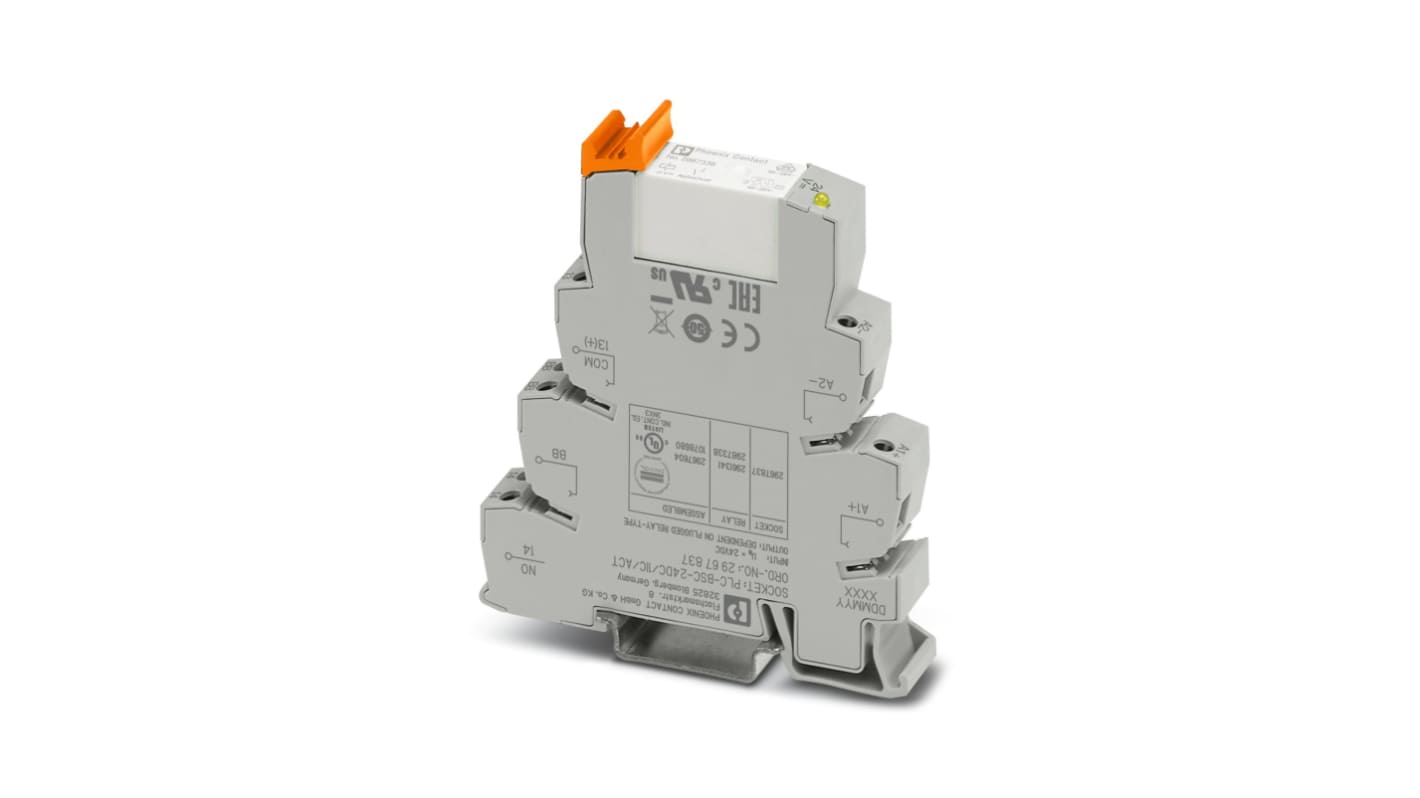

The Phoenix Contact PLC-RSC- 24DC/ 1ICT/ACT series relay module has 24VDC coil voltage and 1 N/O contact configuration. This PLC interface for high inrush current consists of basic terminal block with screw connection and pluggable miniature relay. The relay module is particularly suitable for switching strong capacitive loads, such as LED lights. The ballasts installed in the LED lights often have extremely high switch-on peaks which cause standard relay contacts to fuse. The leading tungsten pre-contact ensures that switch-on currents of up to 800 A can be switched safely.

Efficient connection to system cabling using V8 adapter

Direct connection of load return line thanks to actuator version

Functional plug-in bridges

DIN rail mounting

Operating temperature range between -40°C and 60°C
