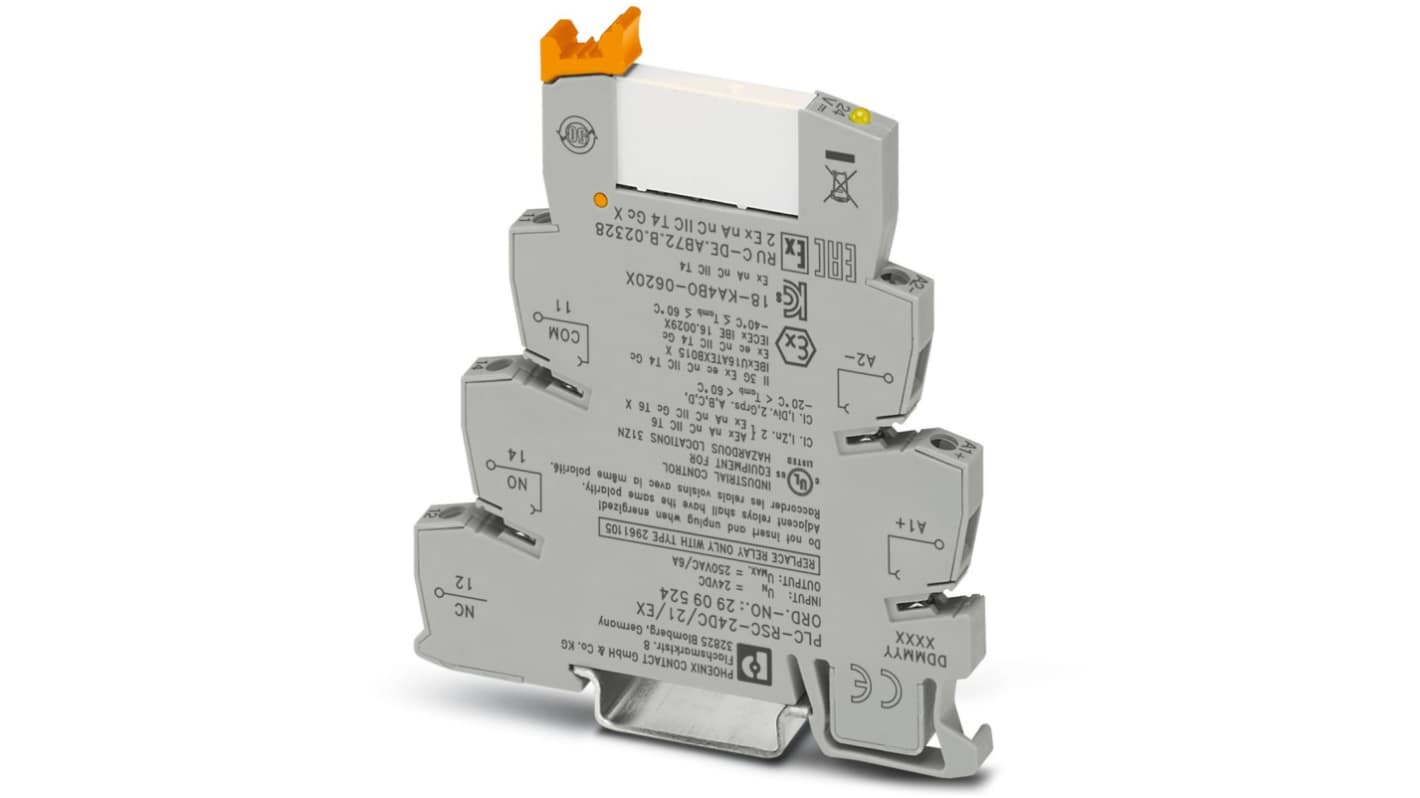

Phoenix Contact PLC-RSC-24DC/21/EX Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole

본 제품군 열람하기

Subtotal (1 unit)*

₩24,270.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 14 개 단위 배송 준비 완료
  • 추가로 2026년 1월 07일 부터 70 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩24,270.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
175-0509
제조사 부품 번호:
2909524
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Coil Voltage

24V dc

Contact Configuration

SPDT

Mounting Type

DIN Rail

Series

PLC-RSC-24DC/21/EX

Number of Poles

1

Minimum Input Voltage

24V dc

Maximum Input Voltage

24V dc

Switching Voltage

250V ac/dc

Terminal Type

Screw

Depth

94mm

Height

80mm

Length

6.2mm

Contact Material

Silver Alloy

Input Current

9mA

Input Voltage Range

18.5 → 33.6V dc

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

-40 °C, -20°C

Turn Off Time

8ms

Operating Temperature Range

-20 → +60 °C, -40 → +60°C

Life

2 x 10^7 (Mechanical) Cycles

Turn On Time

5ms

Dimensions

6.2 x 94 x 80mm

Accessory Type

Relay Module

Relay Switching Classification

Interface Relay Module

Relay Type

Solid State Relay

Standards Met

CE Compliant, EN 50178, EN 60079-0, -7, -15, IEC 60664, UL Listed, USA Certified

Special Features

IP20 Relay Base

COO (Country of Origin):
DE
A 6.2 mm PLC interface relay module designed to be mountable on DIN rail NS 35/7.5. Featuring a basic terminal block with screw connection and a plug-in miniature power relay.

Phoenix Contact PLC-RCS Relays Series


This range of compact PLC relays from Phoenix Contact gives you a great choice of easy connection technology. The electromechanical relays act as the interface between your automation equipment and system peripherals.

Features and Benefits:


• Saves space on the DIN rail
• Cost-effective
• Use the same electromechanical relay module design for both AC and DC switching voltage
• DIN rail mounting
• SPNO and SPDT models available
• Yellow LED operating voltage display
• Free-wheeling diode Damping diode
• Dimensions 94 x 80 x 6.2 mm

Typical Applications:


The PLC relays are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

Phoenix Contact Interface Relay Module, Screw Terminal, SPDT - PLC-RSC-24DC/21/EX - 2909524


This high-performance relay from Phoenix Contact isolates and switches signals between a controller and field devices. It's safe to use in gaseous environments where explosions might occur. You'll find it used anywhere from medical equipment to chemical plants.
The relay's slim design allows for maximum packing efficiency on your DIN rail. Its classic screw terminals accept a wide range of wire diameters and hold conductors firmly in place without the risk of damage. Thanks to contacts made from silver alloy material, electrical conductivity is reliable and ensures a stable connection. The unit's base has an IP20 (ingress protection) rating, meaning it's protected against large dirt particles and other solid objects that could interfere with its function.

• Coil voltage of 24 V DC
• Input current of 9 mA
• Life of 2 x 10^7 mechanical cycles
• Switching current of 10 mA
• Switching voltage of 250 V AC/DC
• SPDT (single pole, double throw) contact configuration
• 1 pole
• Dimensions of 6.2 (length) x 94 (depth) x 80 mm (height)
• Operating temperature range of -40°C to +60°C
