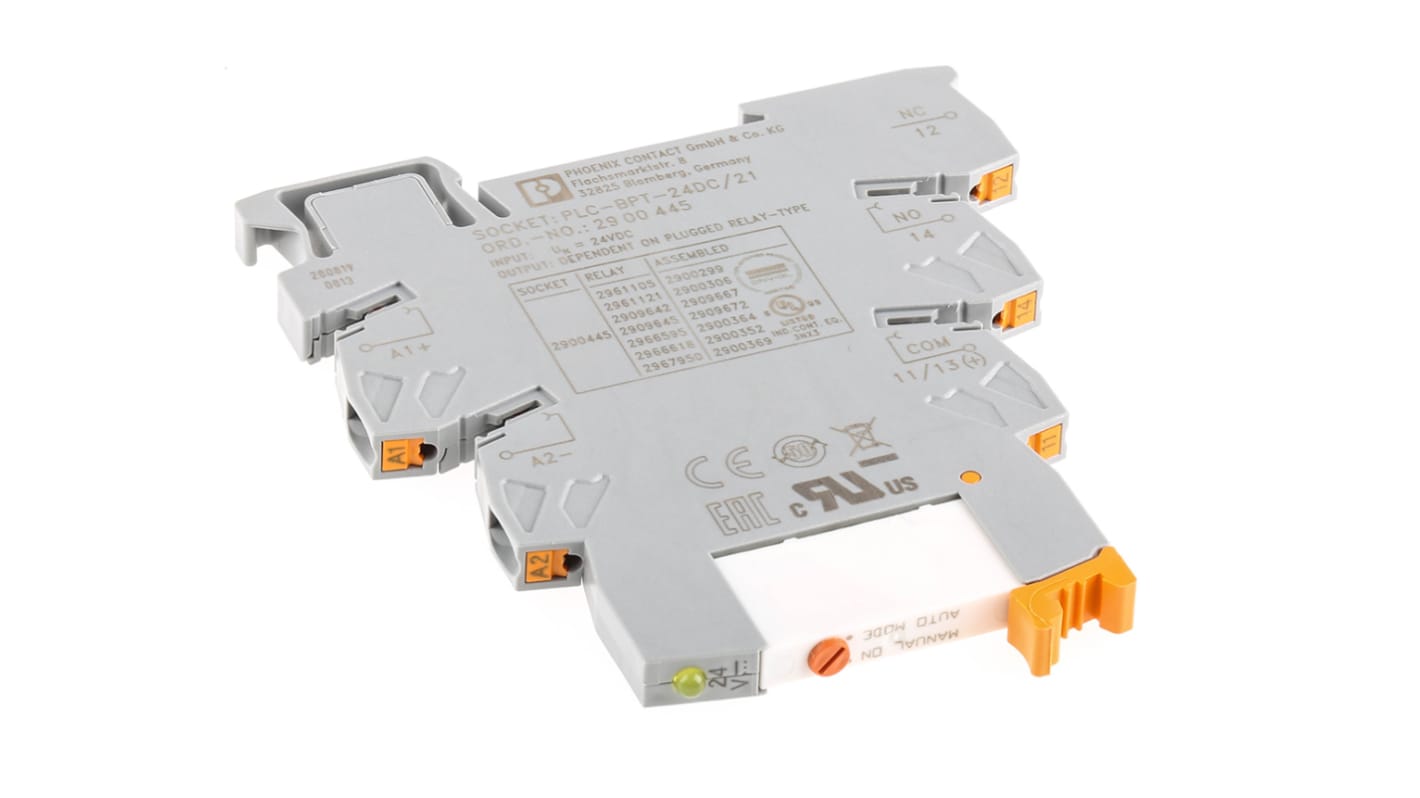

Phoenix Contact PLC-RPT- 24DC/21AU/MS Series Interface Relay, DIN Rail, 24 V dc Coil, SPDT, 15.3 mA

본 제품군 열람하기

Subtotal (1 unit)*

₩42,394.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 21 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩42,394.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
134-8724
제조사 부품 번호:
2909672
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Product Type

Interface Relay

Coil Voltage

24 V dc

Contact Configuration

SPDT

Mount Type

DIN Rail

Series

PLC-RPT- 24DC/21AU/MS

Terminal Type

Push-in

Switching Current

100 mA

Switching AC Voltage

250 V ac

Switching DC Voltage

250 V dc

Minimum Operating Temperature

-40°C

Coil Current

15.3 mA

Contact Material

Gold Plated

Maximum Operating Temperature

60°C

Height

80mm

Standards/Approvals

DIN EN 50178

Width

6.2 mm

Length

94mm

COO (Country of Origin):
DE

PLC-RPT- 24DC/21AU/MS 2909672


  • The product is a miniature relay featuring multi-layer gold contact and manual operation

  • Single changeover contact

  • Input voltage of 24 V DC

  • RT III sealed relay degree of protection

    • Phoenix PLC-RPT Series Push In Contact


    The Phoenix PLC-RPT Series of relay modules features terminal blocks with push-in connection and plug-in miniature relay, suitable for DIN-rail mounting.

    Features and Benefits


  • With the use of a v8 adapter, this relay module offers efficient connection to system cabling

  • The module offers safe isolation between the coil and contact

  • Functional plug-in bridges

  • Operating temperature range of -40 ºC to 60 ºC

    • What is a relay module used for?


    A relay is a switch that can be turned on and off, determining whether the current can pass through. Relay modules are used to control and protect against emergency conditions in applications such as modern power, large radio-electronic, electrophysical and X-ray installations.
