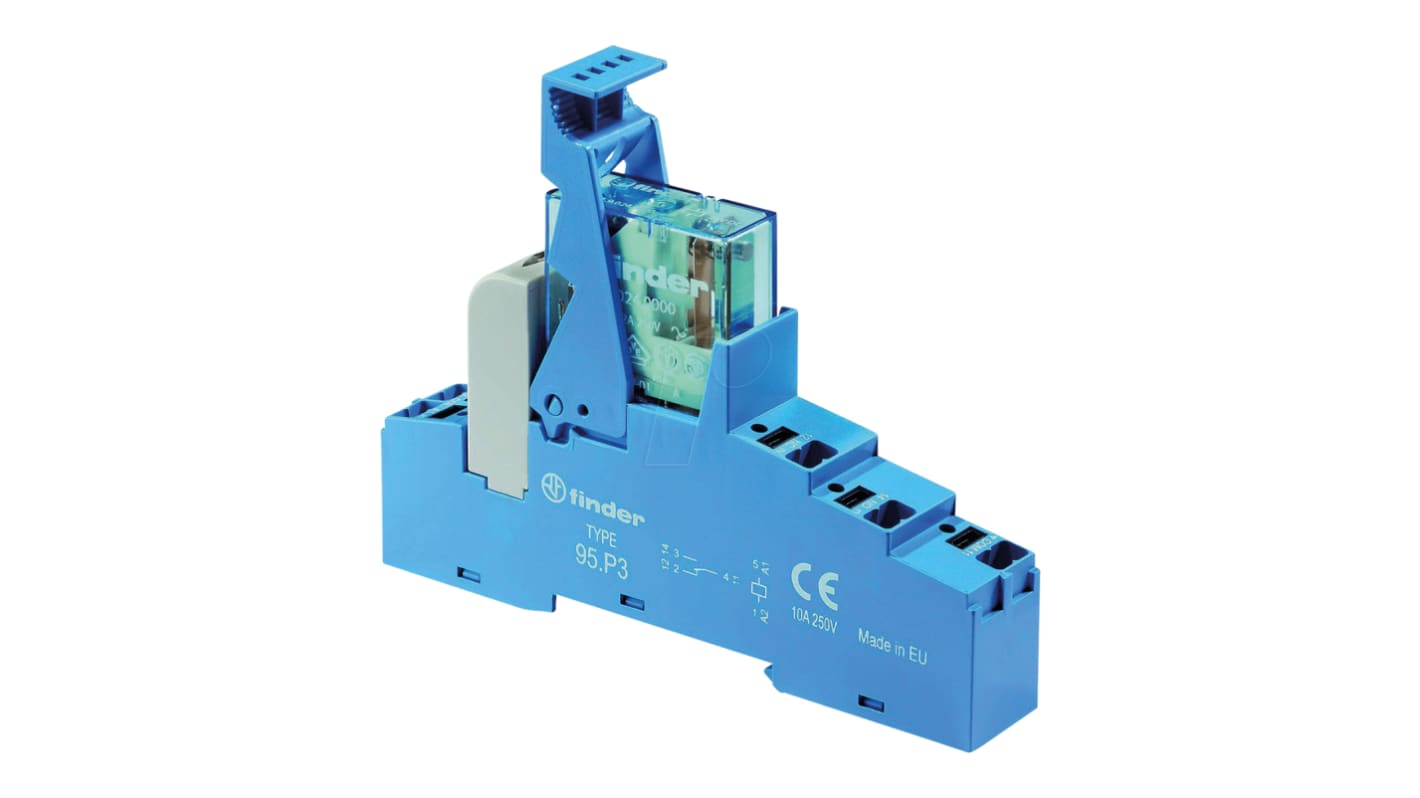

Finder 48 Series Interface Relay, DIN Rail, 12 V ac Coil, SPDT, 90.5 mA

본 제품군 열람하기

Subtotal (1 unit)*

₩34,103.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩34,103.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
123-2805
제조사 부품 번호:
48.P3.8.012.0060SPA
제조업체:
Finder
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Finder

Product Type

Interface Relay

Coil Voltage

12 V ac

Contact Configuration

SPDT

Mount Type

DIN Rail

Series

48

Terminal Type

Push-in

Switching Current

10 A

Coil Current

90.5 mA

Switching AC Voltage

400 V ac

Minimum Operating Temperature

-40°C

Switching DC Voltage

30 V dc

Contact Material

Silver Alloy

Maximum Operating Temperature

70°C

Standards/Approvals

RoHS

Length

15.8mm

Height

95.5mm

Width

75.3 mm

COO (Country of Origin):
IT

48 Series


Finder 48 series relay interface modules are an ideal interface for PLC and electronic systems.

Features and Benefits


Contact resistance: 50mΩ

Mechanical life: AC versions; 10 x 106 operations, DC versions; 20 x 106 operations

Dimensions: H78.6mm, W15.8mm, D76mm

Instant ejection of relay using plastic retaining clip

Supply status indication and EMC coil suppression module

Push-in and screw terminals

Replacement relays stock no. 351-572 etc are available (Finder 40 Series), and should be selected such that the coil voltage, contact configuration and rating match the original type

Approvals

BBJ; BEAB; CSA; DEMKO; FIMKO; GOST; NEMKO; RINA; SEMKO; SEV; UL recognised component for Canada; VDE
