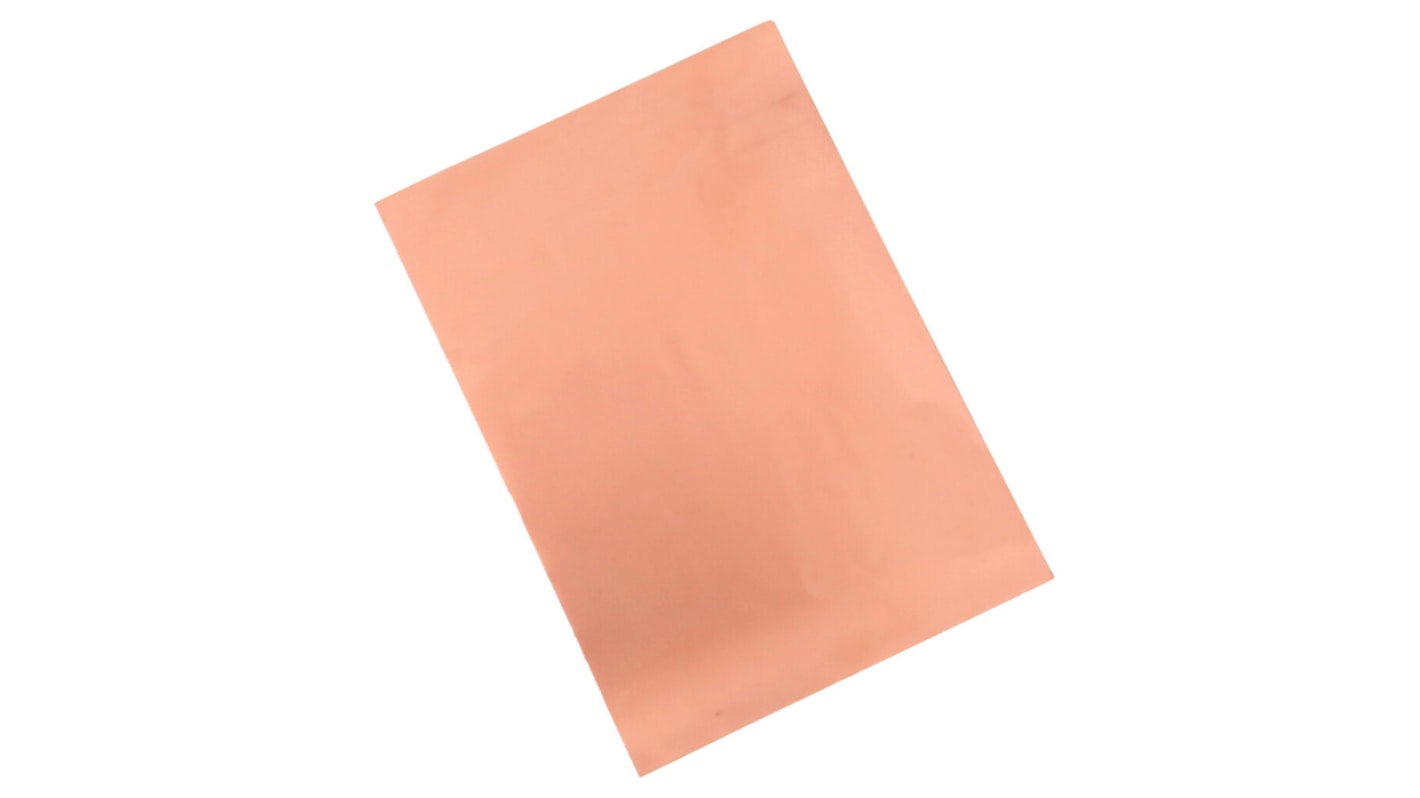

3M 3M Gold Copper Foil Electrical Tape, 100mm x 10 m
- RS 제품 번호:
- 430-009
- 제조사 부품 번호:
- 7100313409
- 제조업체:
- 3M
Subtotal (1 unit)*
₩152,665.50
재고있음
- 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩152,665.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 430-009
- 제조사 부품 번호:
- 7100313409
- 제조업체:
- 3M
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | 3M | |
| Colour | Gold | |
| Product Type | Electrical Tape | |
| Width | 100mm | |
| Length | 10m | |
| Backing Material | Copper Foil | |
| Thickness | 0.023mm | |
| Maximum Operating Temperature | +121°C | |
| Trade Name | 3M | |
| Adhesive Material | Acrylic | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | RoHS Compliant | |
| 모두 선택 | ||
|---|---|---|
브랜드 3M | ||
Colour Gold | ||
Product Type Electrical Tape | ||
Width 100mm | ||
Length 10m | ||
Backing Material Copper Foil | ||
Thickness 0.023mm | ||
Maximum Operating Temperature +121°C | ||
Trade Name 3M | ||
Adhesive Material Acrylic | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals RoHS Compliant | ||
제외
- COO (Country of Origin):
- KR
3M Electrical Tape, 100mm Width, Gold - 7100313409
This electrical tape is a thin copper foil product designed for conductive shielding, earthing and bonding tasks in electrical and electronic assemblies. It combines a metallic backing with an acrylic adhesive to provide a conformable conductive layer for EMI/RFI control and mechanical earthing in environments that demand a metallic tape solution.
Features & Benefits
• Copper backing delivers conductive shielding and earthing performance
• Acrylic adhesive provides reliable bond to varied substrates
• Operates at temperatures up to +121°C for high‑temp environments
• Remains functional down to -40°C for low‑temperature stability
• 0.023mm thickness permits tight conformity to complex surfaces
• Acrylic adhesive provides reliable bond to varied substrates
• Operates at temperatures up to +121°C for high‑temp environments
• Remains functional down to -40°C for low‑temperature stability
• 0.023mm thickness permits tight conformity to complex surfaces
**Applications**
• Suitable for EMI/RFI shielding on enclosures and panels
• Ideal for earthing straps and bonding joints in assemblies
• Used for repair and continuity restoration on conductive paths
• Can be used for automotive high‑temperature harness routing
• Used with PCB layouts requiring localised copper shielding
• Ideal for earthing straps and bonding joints in assemblies
• Used for repair and continuity restoration on conductive paths
• Can be used for automotive high‑temperature harness routing
• Used with PCB layouts requiring localised copper shielding
How does the adhesive handle different substrate materials?
The acrylic adhesive offers good adhesion to metals, plastics and painted surfaces, enabling secure contact for electrical continuity and shielding without aggressive solvent‑based bonding.
What performance can be expected at elevated temperatures?
The tape retains adhesive and conductive properties at temperatures up to +121°C, allowing use near heat sources or in high‑temperature system components.
How thin is the conductive layer for fitting into tight assemblies?
The combined foil thickness is 0.023mm, allowing it to conform into narrow seams and around small components without adding significant bulk.
