Microchip 24LC04BT-E/SN, 4 kB Serial EEPROM, 900 ns 8-Pin SOIC Serial-I2C (2 Wire)

RS 제품 번호:: 239-5560
제조사 부품 번호:: 24LC04BT-E/SN
제조업체:: Microchip

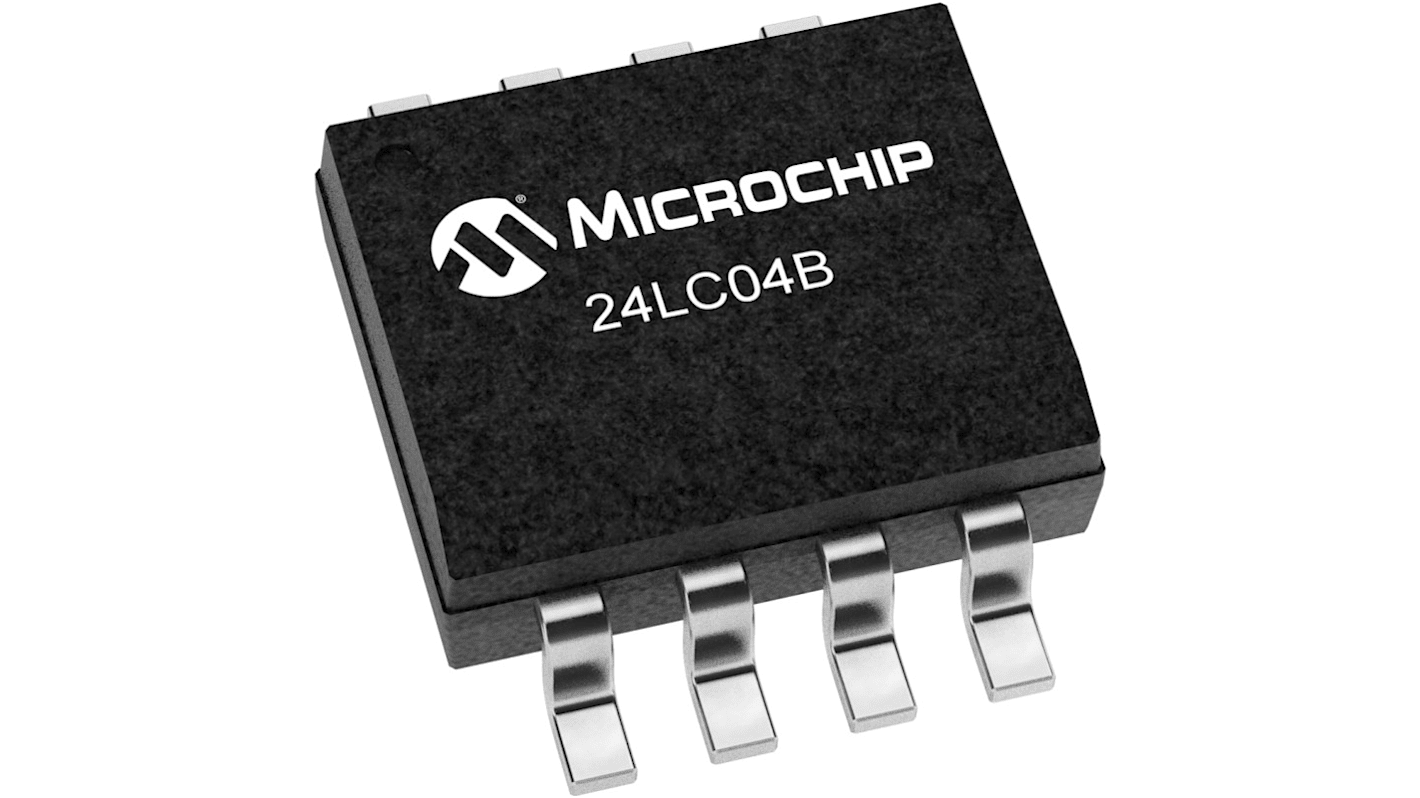

Microchip 24LC04BT-E/SN, 4 kB Serial EEPROM, 900 ns 8-Pin SOIC Serial-I2C (2 Wire)

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 25 units)*

₩14,805.00

재고있음

추가로 2025년 12월 29일 부터 3,275 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
25 - 25	₩592.20	₩14,814.40
50 - 75	₩580.92	₩14,513.60
100 - 225	₩569.64	₩14,231.60
250 - 975	₩558.36	₩13,949.60
1000 +	₩541.44	₩13,536.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 239-5560
제조사 부품 번호:: 24LC04BT-E/SN
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Memory Size	4kB
	Product Type	Serial EEPROM
	Interface Type	Serial-I2C (2 Wire)
	Package Type	SOIC
	Mount Type	Surface
	Pin Count	8
	Maximum Clock Frequency	1000kHz
	Organisation	512 x 8 bit
	Minimum Supply Voltage	2.5V
	Number of Bits per Word	8
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	125°C
	Length	4.9mm
	Width	3.9 mm
	Standards/Approvals	RoHS
	Height	0.75mm
	Maximum Random Access Time	900ns
	Number of Words	512
	Automotive Standard	AEC-Q100
	Data Retention	200year

	모두 선택
	브랜드 Microchip
	Memory Size 4kB
	Product Type Serial EEPROM
	Interface Type Serial-I2C (2 Wire)
	Package Type SOIC
	Mount Type Surface
	Pin Count 8
	Maximum Clock Frequency 1000kHz
	Organisation 512 x 8 bit
	Minimum Supply Voltage 2.5V
	Number of Bits per Word 8
	Maximum Supply Voltage 5.5V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 125°C
	Length 4.9mm
	Width 3.9 mm
	Standards/Approvals RoHS
	Height 0.75mm
	Maximum Random Access Time 900ns
	Number of Words 512
	Automotive Standard AEC-Q100
	Data Retention 200year

Datasheet - 24LC04BT-E/SN

The Microchip 24LC04B series of 4 Kbit EEPROM are low-power CMOS Technology device is organized as two blocks of 256 x 8-bit memory with a two-wire serial interface. The device is organized as two blocks of 256 x 8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7 V with standby and active currents of only 1 μA and 1 mA, respectively. Along with more than 1 million read/write cycles it provides Data retention of over 200 years. Also, ESD Protection of more than 4000 V. The device provides 100 kHz and 400 kHz clock compatibility and self-timed erase/write cycle.

Single supply with operation down to 1.7 V

Maximum read current is 1 mA

Maximum standby current is 1 μA

Industrial temperature ranges from -40°C to +85°C

Microchip 24LC04BT-E/SN, 4 kB Serial EEPROM, 900 ns 8-Pin SOIC Serial-I2C (2 Wire)
