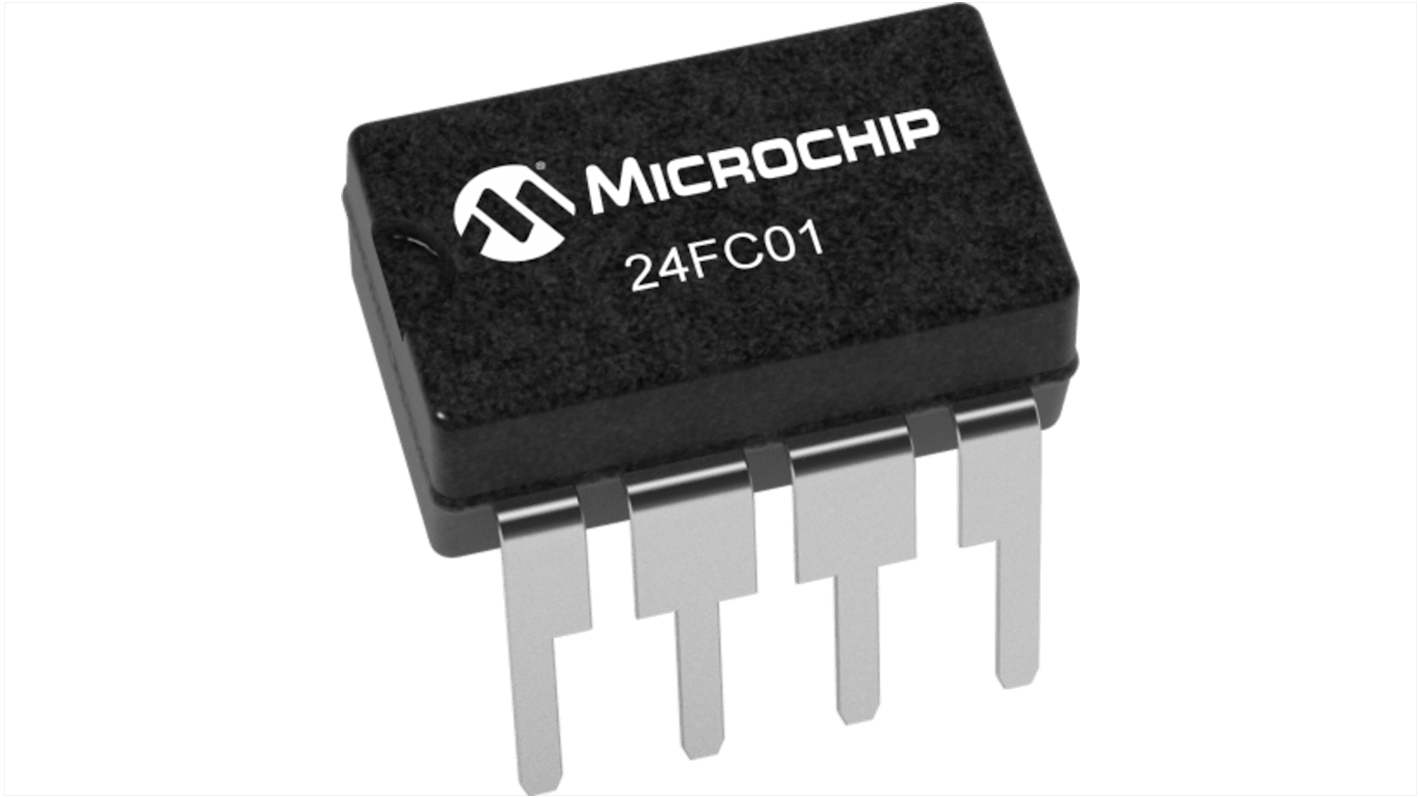

Microchip 24FC01-I/P, 1 kB EEPROM, 3500 ns 8-Pin PDIP Serial-2 Wire

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 EEPROM 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
188-0158
제조사 부품 번호:
24FC01-I/P
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Memory Size

1kB

Product Type

EEPROM

Interface Type

Serial-2 Wire

Package Type

PDIP

Mount Type

Through Hole

Pin Count

8

Organisation

1K x 8 bit

Maximum Clock Frequency

1MHz

Minimum Supply Voltage

1.7V

Maximum Supply Voltage

5.5V

Number of Bits per Word

8

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Series

24FC01

Width

6.35 mm

Height

3.3mm

Length

9.4mm

Standards/Approvals

No

Maximum Random Access Time

3500ns

Supply Current

3mA

Data Retention

200year

Automotive Standard

AEC-Q100

Number of Words

128

The Microchip Technology Inc. 24FC01 is a 1Kb Serial EEPROM capable of speeds up to 1MHz. The device is organized as one block of 128 x 8-bit memory with a 2-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24FC01 also has a page write capability for up to 8 bytes of data. The 24FC01 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 UDFN and MSOP packages, and is also available in the 5-lead SOT-23 package.

Single supply with operation down to 1.7V

Low-power CMOS technology - Read current 1 mA max, Standby current 1 mA max (I-temp.)

2-wire serial interface, I2C compatible

Schmitt Trigger inputs for noise suppression

Output slope control to eliminate ground bounce

100 kHz, 400 kHz, and 1MHz compatibility

Page write time 5 ms max

More than 1 million erase/write cycles

Data retention >200 years

Factory programmable available
