Microchip, 2 kB Serial EEPROM, 900 ns 5-Pin SOT-23 Serial-2 Wire
- RS 제품 번호:
- 178-5311
- 제조사 부품 번호:
- 24AA02E64T-I/OT
- 제조업체:
- Microchip

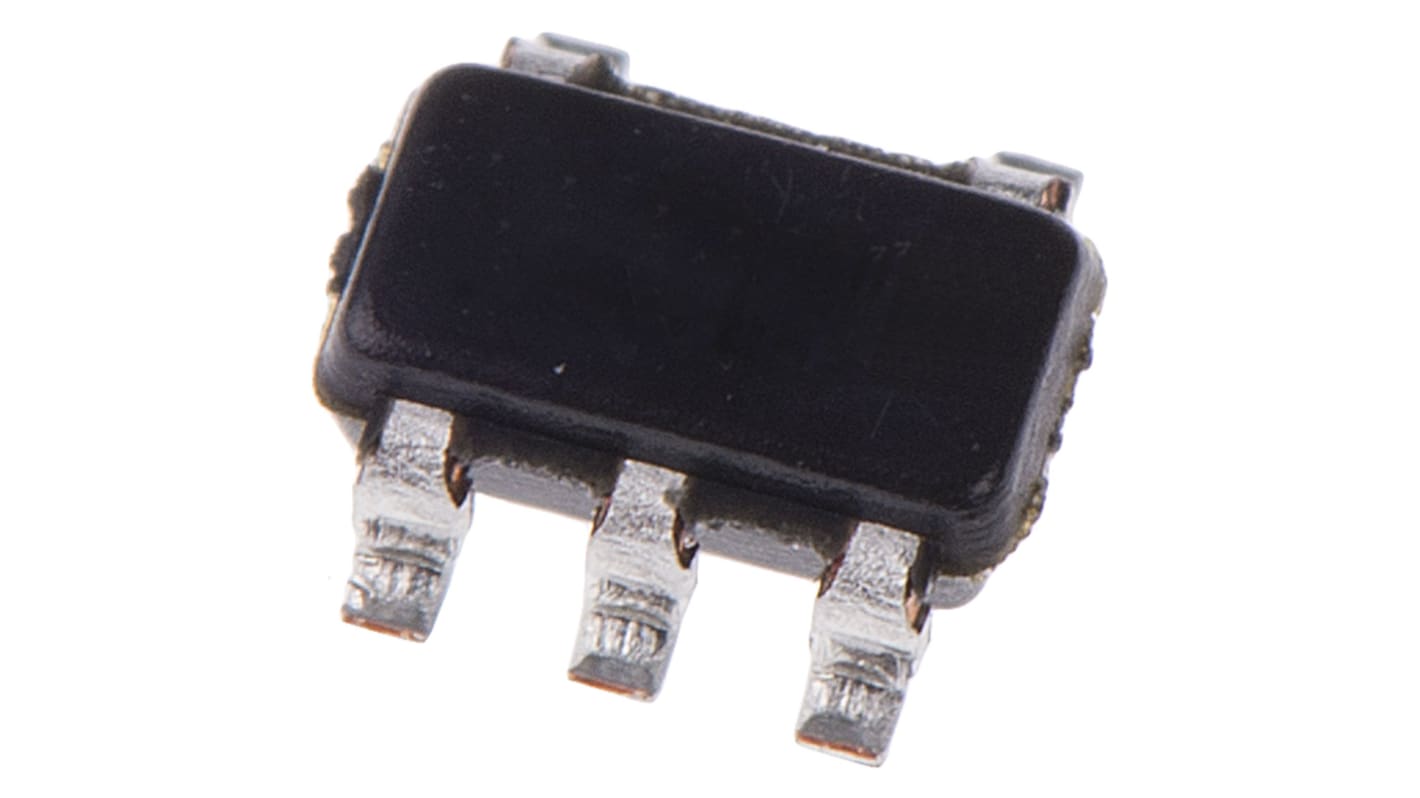

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 178-5311
- 제조사 부품 번호:
- 24AA02E64T-I/OT
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | Serial EEPROM | |
| Memory Size | 2kB | |
| Interface Type | Serial-2 Wire | |
| Package Type | SOT-23 | |
| Mount Type | Surface | |
| Pin Count | 5 | |
| Organisation | 2K x 8 bit | |
| Maximum Clock Frequency | 10MHz | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 5.5V | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.45mm | |
| Standards/Approvals | No | |
| Series | 24AA02E64 | |
| Width | 0.51mm | |
| Length | 2.9mm | |
| Maximum Random Access Time | 900ns | |
| Supply Current | 5mA | |
| Data Retention | 200year | |
| Automotive Standard | No | |
| Number of Words | 256 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type Serial EEPROM | ||
Memory Size 2kB | ||
Interface Type Serial-2 Wire | ||
Package Type SOT-23 | ||
Mount Type Surface | ||
Pin Count 5 | ||
Organisation 2K x 8 bit | ||
Maximum Clock Frequency 10MHz | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 5.5V | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.45mm | ||
Standards/Approvals No | ||
Series 24AA02E64 | ||
Width 0.51mm | ||
Length 2.9mm | ||
Maximum Random Access Time 900ns | ||
Supply Current 5mA | ||
Data Retention 200year | ||
Automotive Standard No | ||
Number of Words 256 | ||
24AA02Exx/24AA025Exx I²C™ Serial EEPROM
EEPROM Serial Access - Microchip
