Microchip 24LC00T-I/OT, 128 bit Serial EEPROM, 900 ns 5-Pin SOT-23 Serial-I2C

RS 제품 번호:: 454-107
제조사 부품 번호:: 24LC00T-I/OT
제조업체:: Microchip

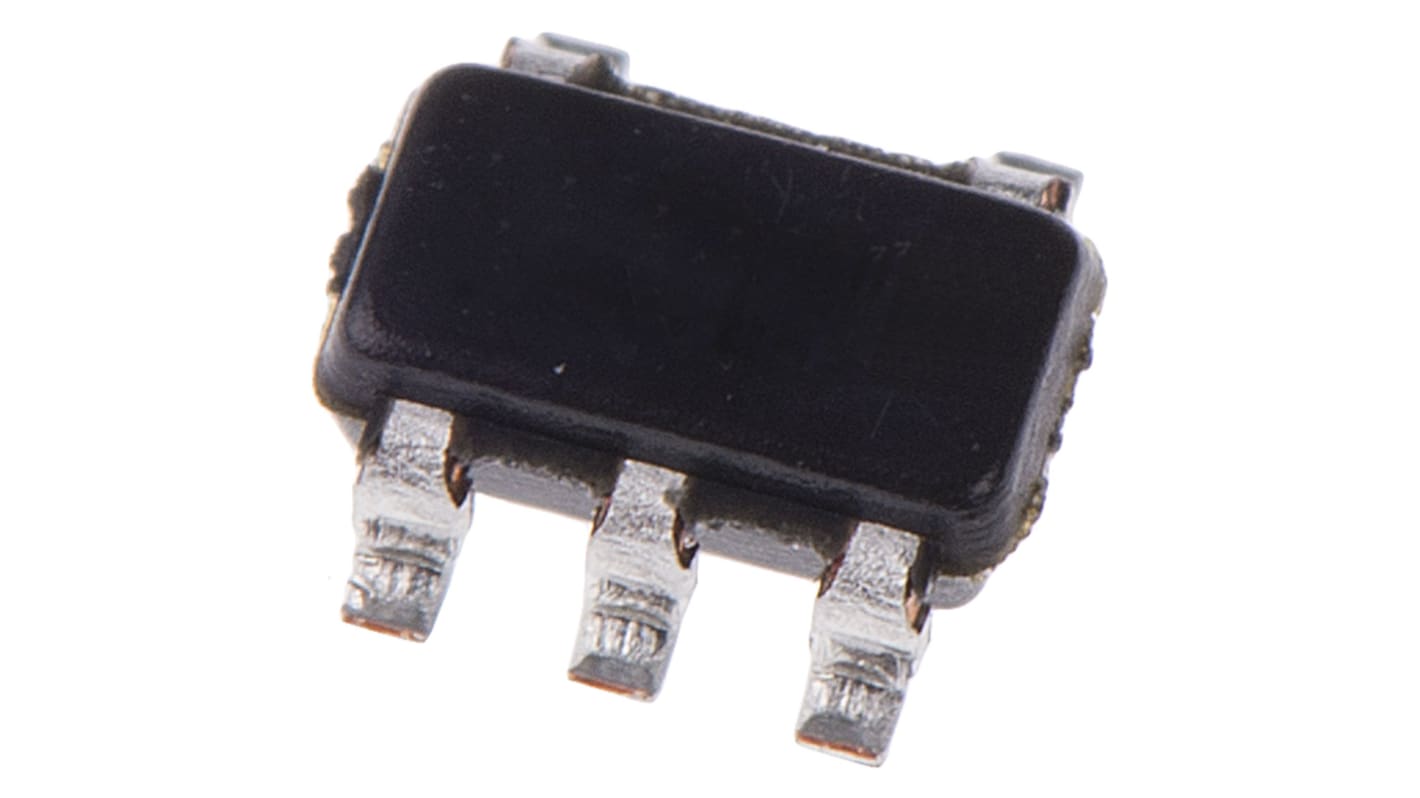

Microchip 24LC00T-I/OT, 128 bit Serial EEPROM, 900 ns 5-Pin SOT-23 Serial-I2C

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 reel of 500 units)*

₩202,100.00

재고있음

500 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	릴당*
500 - 2000	₩404.20	₩202,476.00
2500 +	₩396.68	₩198,434.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 454-107
제조사 부품 번호:: 24LC00T-I/OT
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Product Type	Serial EEPROM
	Memory Size	128bit
	Interface Type	Serial-I2C
	Package Type	SOT-23
	Mount Type	Surface
	Pin Count	5
	Organisation	16k x 8 Bit
	Maximum Clock Frequency	400kHz
	Minimum Supply Voltage	2.5V
	Maximum Supply Voltage	5.5V
	Number of Bits per Word	8
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Length	3.1mm
	Standards/Approvals	No
	Width	3.2 mm
	Automotive Standard	No
	Data Retention	200year
	Supply Current	2mA
	Maximum Random Access Time	900ns

	모두 선택
	브랜드 Microchip
	Product Type Serial EEPROM
	Memory Size 128bit
	Interface Type Serial-I2C
	Package Type SOT-23
	Mount Type Surface
	Pin Count 5
	Organisation 16k x 8 Bit
	Maximum Clock Frequency 400kHz
	Minimum Supply Voltage 2.5V
	Maximum Supply Voltage 5.5V
	Number of Bits per Word 8
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Length 3.1mm
	Standards/Approvals No
	Width 3.2 mm
	Automotive Standard No
	Data Retention 200year
	Supply Current 2mA
	Maximum Random Access Time 900ns

24AA00/24C00/24LC00 I²C™ Serial EEPROM

Microchip’s 24AA00/24C00/24LC00 family of devices are 128-bit I²C™ Serial EEPROMs available in a variety of package, temperature and power supply variants.

Features

Single Supply with Operation down to 1.8V for 24AA00 Devices, 2.5V for 24LC00 Devices

Low-Power CMOS Technology: Read current 500 μA (typical), Standby current 100 nA (typical)

2-Wire Serial Interface, I2C™ Compatible

Schmitt Trigger Inputs for Noise Suppression

Output Slope Control to Eliminate Ground Bounce

100 kHz and 400 kHz Clock Compatibility

Page Write Time 3 ms, Typical

Self-Timed Erase/Write Cycle

ESD Protection >4000V

More than 1 Million Erase/Write Cycles

Data Retention >200 Years
