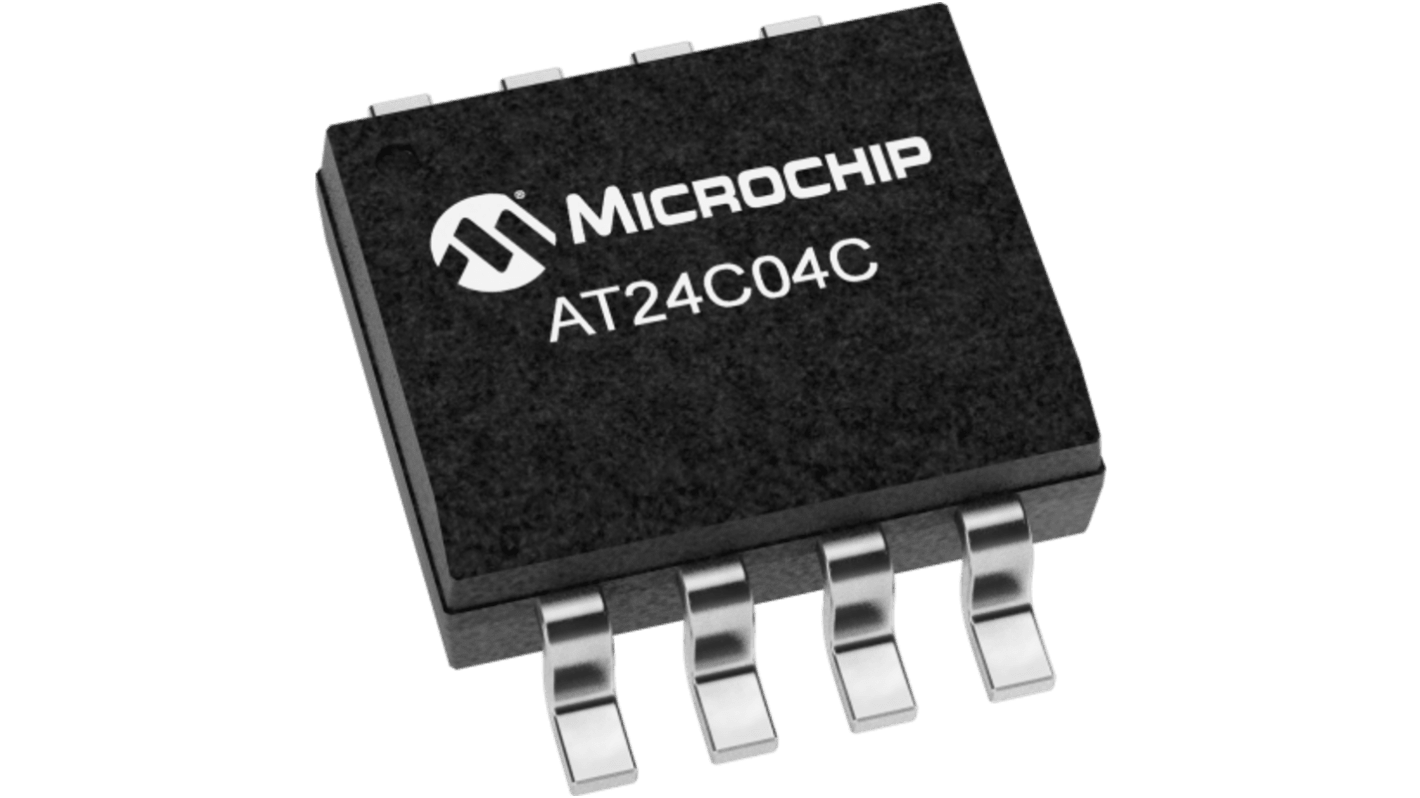

Microchip AT24C04C-SSHM-B, 4 kB EEPROM 8-Pin SOIC 2 Wire I2C

모든 EEPROM 열람하기

Subtotal (1 Bag of 10 units)*

₩5,658.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 1,260 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Bag*
10 +₩565.88₩5,662.56

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
352-267
제조사 부품 번호:
AT24C04C-SSHM-B
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Memory Size

4kB

Product Type

EEPROM

Interface Type

2 Wire I2C

Package Type

SOIC

Mount Type

Surface

Pin Count

8

Maximum Clock Frequency

1MHz

Minimum Supply Voltage

1.7V

Number of Bits per Word

8

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

No

Series

AT24C04C/AT24C08C

Data Retention

100year

Number of Words

5121024

Automotive Standard

No

Supply Current

3mA

The Microchip 4 Kb Serial EEPROM utilizing an I2C (2-wire) serial interface. The device is organized as one block of 512 x 8 and is optimized for use in consumer, industrial, and automotive applications where reliable and dependable non-volatile memory storage is essential. The EEPROM is available in a variety of space-saving packaging options.

Self-timed erase and write cycles 5 ms max

Read current 0.4 mA typical 1 mA max

Write current 2 mA typical 3 mA max

Standby current 6 μA max

Hardware write-protect pin

More than 1 million erase or write cycles
