Phoenix Contact 2-Way DIN Rail Non-Fuse DIN Rail Terminal, 0.2mm², 6 mm², 24AWG Wire, Push-in, Polyamide Housing
- RS 제품 번호:
- 201-6407
- Distrelec 제품 번호:
- 304-32-371
- 제조사 부품 번호:
- 3213964
- 제조업체:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
₩438,700.00
제조사가 재고 비축중
- 2026년 9월 24일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 50 + | ₩8,774.00 | ₩438,720.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 201-6407
- Distrelec 제품 번호:
- 304-32-371
- 제조사 부품 번호:
- 3213964
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Earth Block Type | DIN Rail | |
| Product Type | Non-Fuse DIN Rail Terminal | |
| Wire Size | 24AWG | |
| Cable CSA | 0.2mm², 6mm² | |
| Colour | Green, Yellow | |
| Number of Ways | 2 | |
| Housing Material | Polyamide | |
| Voltage | 6kV | |
| Termination Type | Push-in | |
| Length | 69.3mm | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | 105°C | |
| Width | 6.2mm | |
| Standards/Approvals | No | |
| Series | PTI | |
| Height | 50.3mm | |
| Hazardous Area Certification | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Earth Block Type DIN Rail | ||
Product Type Non-Fuse DIN Rail Terminal | ||
Wire Size 24AWG | ||
Cable CSA 0.2mm², 6mm² | ||
Colour Green, Yellow | ||
Number of Ways 2 | ||
Housing Material Polyamide | ||
Voltage 6kV | ||
Termination Type Push-in | ||
Length 69.3mm | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature 105°C | ||
Width 6.2mm | ||
Standards/Approvals No | ||
Series PTI | ||
Height 50.3mm | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- DE

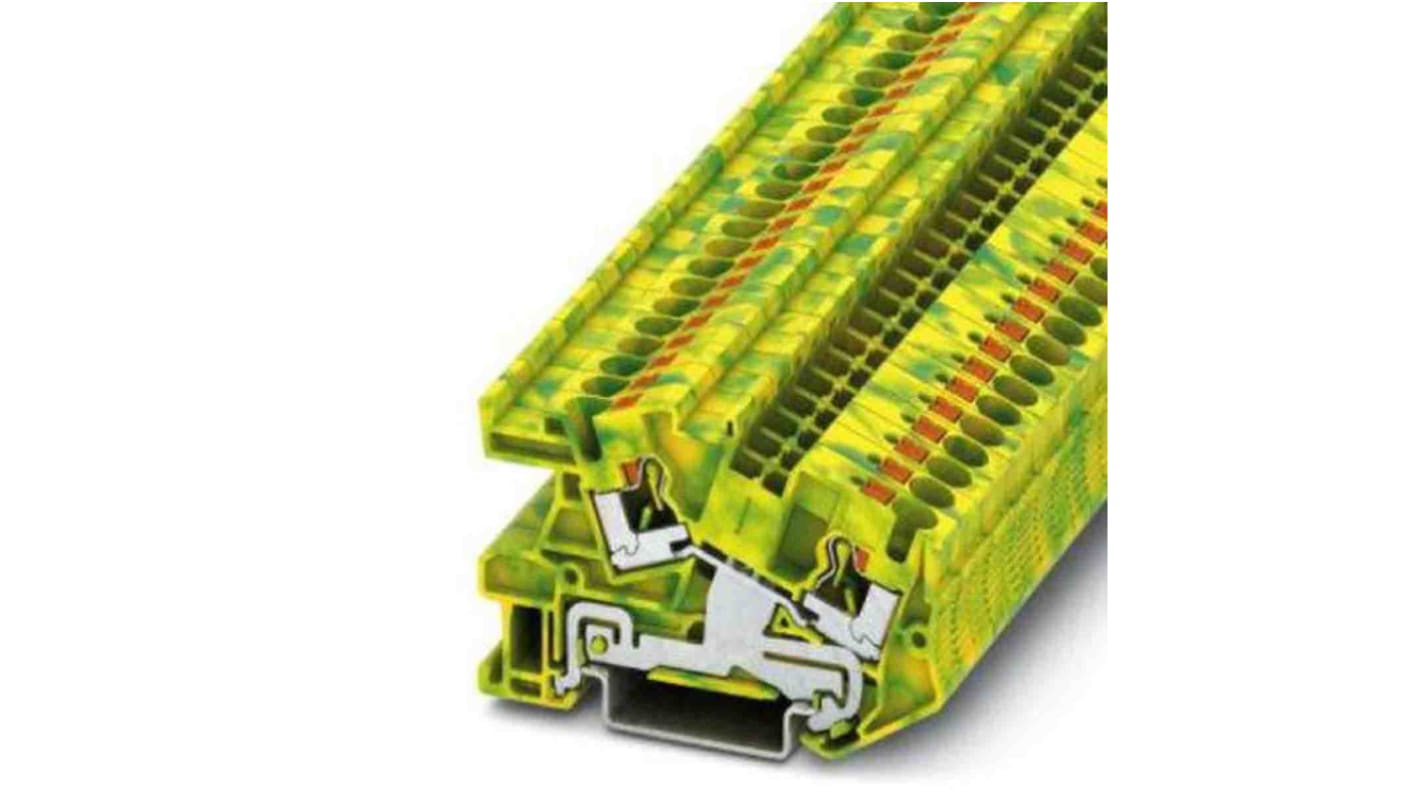

The Phoenix installation ground terminal block has the same shape and pitch as the feed-through terminal blocks and contact is made free from mechanical and electrical errors. The terminal block has various mounting type such as NS 35/7,5, NS 35/15. It can work in ambient temperature from -60 °C to 85 °C.
Time and space saving
Degree of pollution 3
Overvoltage category III
Insulating material group I
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
