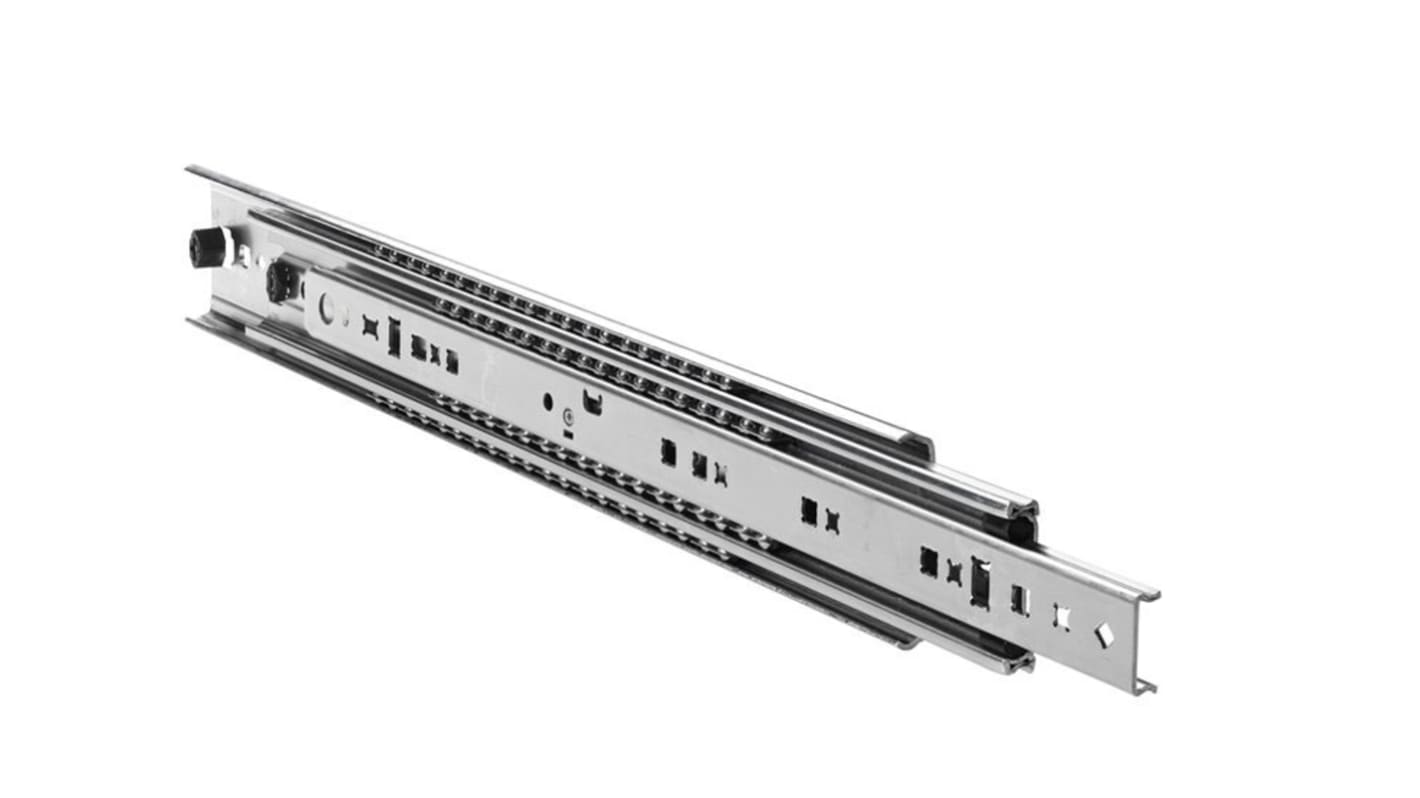

Accuride Steel Drawer Runner, 140kg Load 304.8 mm

모든 Drawer Runners 열람하기

Subtotal (1 pair)*

₩100,327.50

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
Pair(s)
Per Pair
1 +₩100,327.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
190-4170
제조사 부품 번호:
DZ7957-0012-2
제조업체:
Accuride
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Accuride

Material

Steel

Product Type

Drawer Runner

Closed Length

304.8mm

Series

DZ7957-0012

Finish

Zinc Plated

Travel Length

304.8mm

Extension

100 %

Overall Height

19mm

Maximum Load

140kg

Standards/Approvals

No

COO (Country of Origin):
MX
With optional bracketing options providing versatile mounting options, including side- and flat-mounting, the 7957 lends itself to a full range of applications within residential, industrial and commercial locations. The lever operated front-disconnect allows the inner member to be removed for easy disassembly and reinsertion. Capable of supporting loads of up to 160kg in side-mounted applications and 40kg in flat-mounted applications, the 7957 can be deployed in shelving for cookware or dry goods, toolboxes and even under-stairs storage solutions. Drawers and applications up to 1000mm wide will benefit from the unfailing movement and extra strength of the 7957.

Load rating up to 160kg

100% extension

19.1mm slide thickness

Suitable for drawers up to 1000mm wide

Front disconnect

Optional bracket accessory kits for various mounting options
