4D Systems Universal Programmer Adapter

모든 Display Interface Kits 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩18,876.00

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량
한팩당
1 - 4₩18,876.00
5 +₩18,115.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
164-7081
제조사 부품 번호:
4D-UPA
제조업체:
4D Systems
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

4D Systems

For Use With

Gen4 Display Module, uLCD, IoD-09TH Display Module, uOLED Display Module, Gen4-IoD Display Module

Product Type

Display Interface Kit

Interface Type

USB, UART

Kit Contents

FFC Cable

Standards/Approvals

No

Kit Name

Universal Programmer Adapter

Series

4D

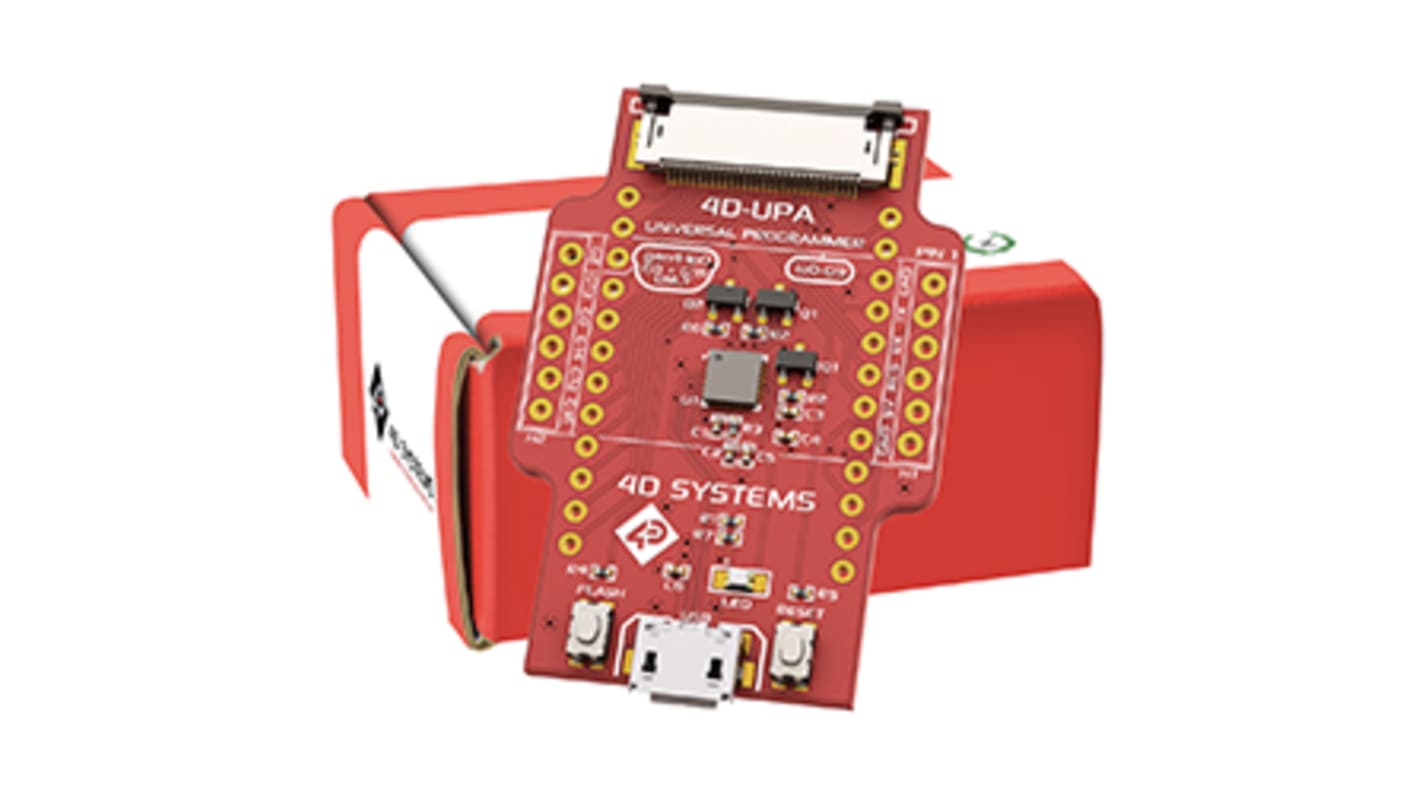

The 4D-UPA (Universal Programmer Adaptor) is a universal programmer designed to work with multiple 4D Systems display modules. It has a 30 way FFC connector at the top of the module, for connecting to gen4-uLCD-xx display modules. On the opposite side is a 10 way FFC connector, for connecting to gen4-IoD-xx display modules. Located centrally in the larger rectangular outline, are pads associated with the gen4-uLCD-xx modules. These break out all the signals which come to/from the gen4-uLCD-xx modules.

USB 2.0 compliant Full Speed 12Mbps maximum speed, Suspend supported.

Hardware or Xon/Xoff handshaking supported, 300bps to 2Mbps

Power on reset circuit

Virtual COM port drivers allow operation with existing COM port PC applications

USB powered

Traffic/Operation LED indicates board status

Breakout pads of all the signals found in 2.54mm (0.1") spacing
