HARWIN, H31 Discrete Socket, Rated At 2A
- RS 제품 번호:
- 173-0871
- 제조사 부품 번호:
- H3192-01
- 제조업체:
- HARWIN
2000 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(1000개가 1팩안에)
₩376.028
| 수량 | 한팩당 | 한팩당* |
| 1000 - 4000 | ₩376.028 | ₩375,510.73 |
| 5000 + | ₩338.08 | ₩337,907.91 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 173-0871
- 제조사 부품 번호:
- H3192-01
- 제조업체:
- HARWIN
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항

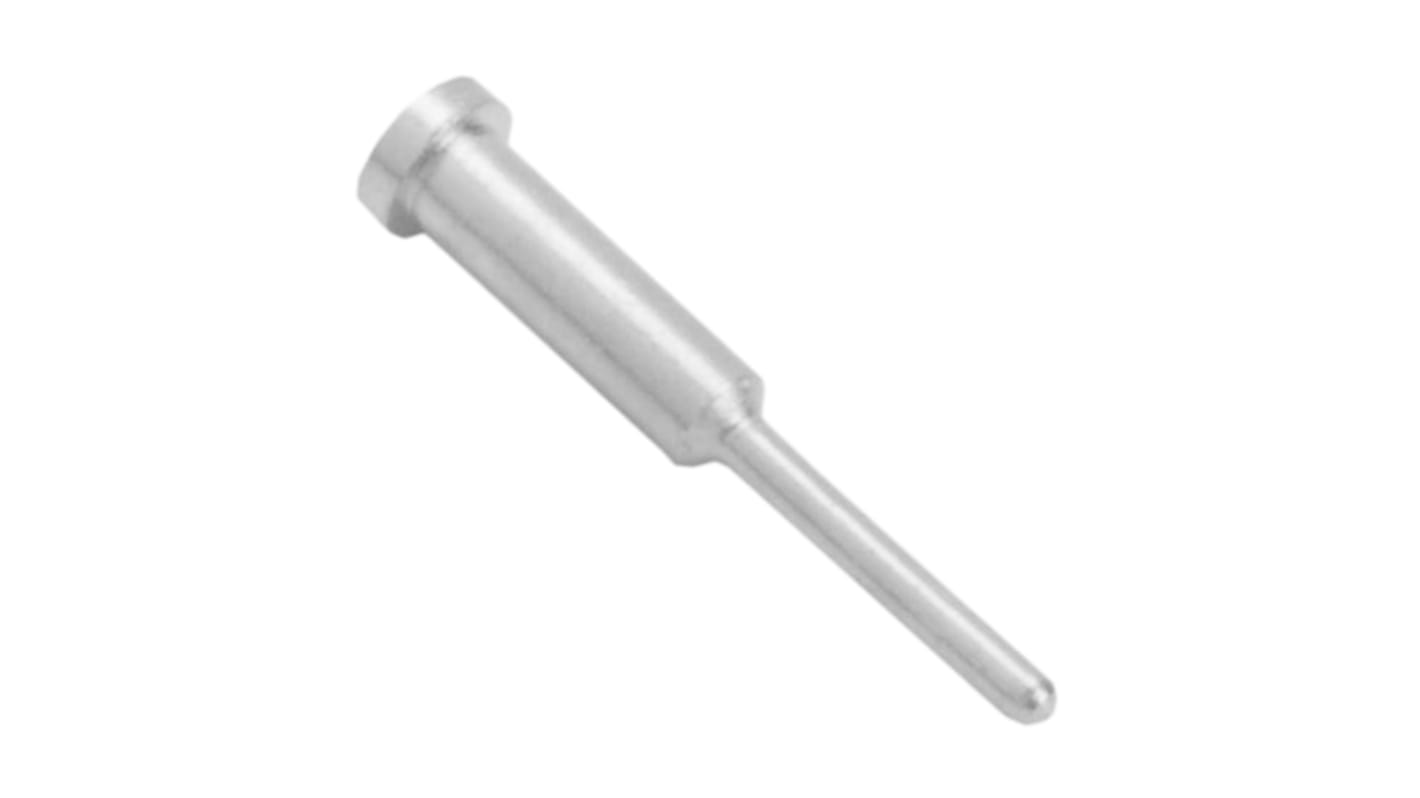

Harwin PCB Sockets for 0.5mm Mating Pin
Subminiature PCB through hole mounting sockets for mating with a 0.5mm diameter PCB pin. These PCB socket terminals use a 4 finger beryllium copper contact clip that offer resistance against high vibration and shock.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Harwin PCB Terminals
사양
속성 | 값 |
|---|---|
| Gender | Female |
| Series | H31 |
| Length | 7.54mm |
| Body Orientation | Straight |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Current Rating | 2A |
| Termination Method | Solder |
| Housing Material | Brass |
| Number of Contacts | 1 |
