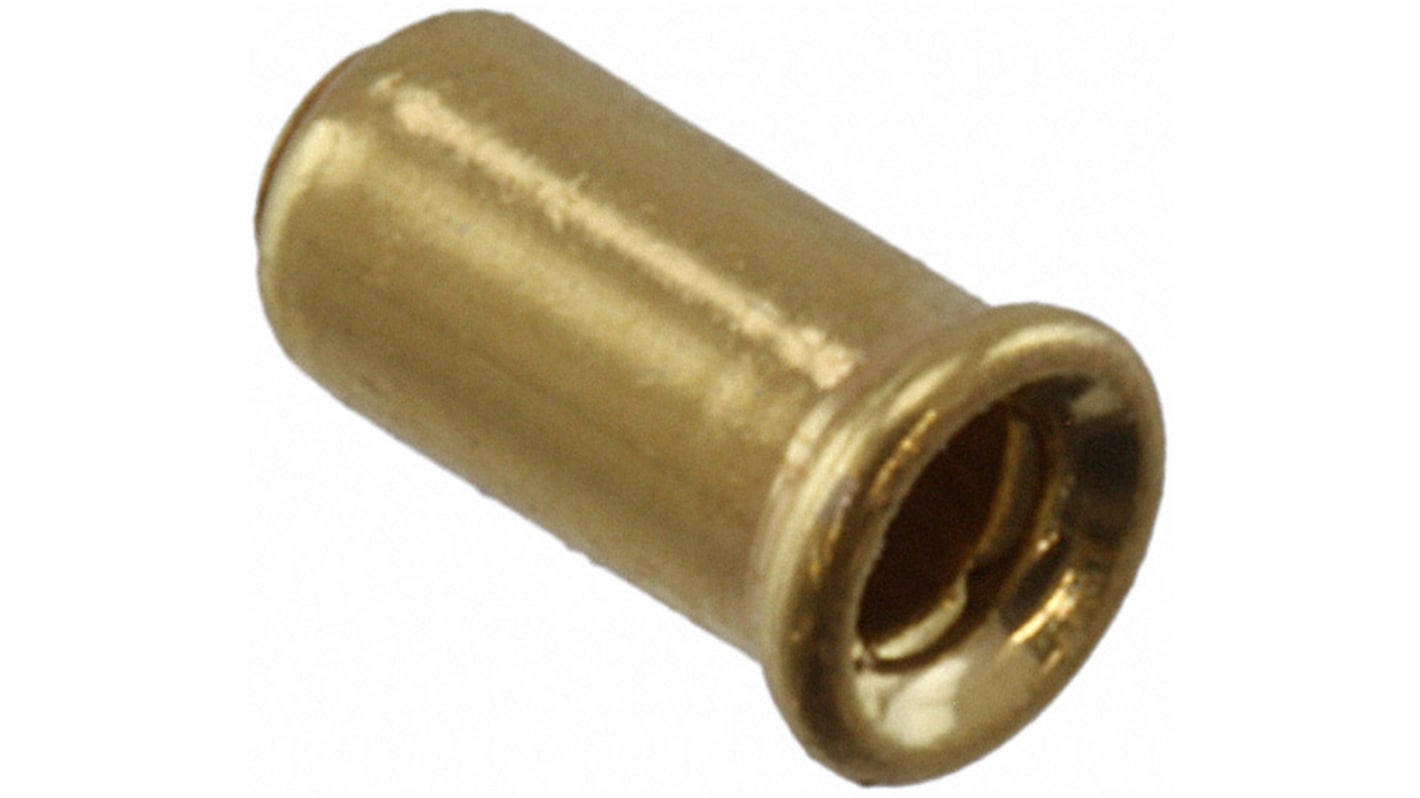

TE Connectivity, 4 PCB Socket, 7.5A 19 AWG
- RS 제품 번호:
- 164-2215
- Distrelec 제품 번호:
- 304-63-313
- 제조사 부품 번호:
- 2-5332070-9
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 Bag of 2000 units)*
₩2,643,280.00
현재 액세스할 수 없는 재고 정보
수량 | 한팩당 | Per Bag* |
|---|---|---|
| 2000 - 2000 | ₩1,321.64 | ₩2,643,656.00 |
| 4000 - 6000 | ₩1,295.32 | ₩2,590,640.00 |
| 8000 + | ₩1,269.00 | ₩2,538,752.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 164-2215
- Distrelec 제품 번호:
- 304-63-313
- 제조사 부품 번호:
- 2-5332070-9
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Gender | Female | |
| Product Type | PCB Socket | |
| Series | 4 | |
| Current | 7.5A | |
| Length | 3.63mm | |
| Maximum Wire Size AWG | 19 AWG | |
| Orientation | Straight | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Termination Type | Solder | |
| Housing Material | Beryllium Copper Alloy | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Gender Female | ||
Product Type PCB Socket | ||
Series 4 | ||
Current 7.5A | ||
Length 3.63mm | ||
Maximum Wire Size AWG 19 AWG | ||
Orientation Straight | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Termination Type Solder | ||
Housing Material Beryllium Copper Alloy | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- US
TE Connectivity Discrete PCB Minature Spring Sockets
A range of discrete PCB through hole press-fit miniature spring sockets for discrete wire. These discrete sockets are available with a closed bottom or open bottom sleeve style and a variety of lengths and plating options. Please see additional data table for details.
TE Connectivity Discrete PCB Connections
