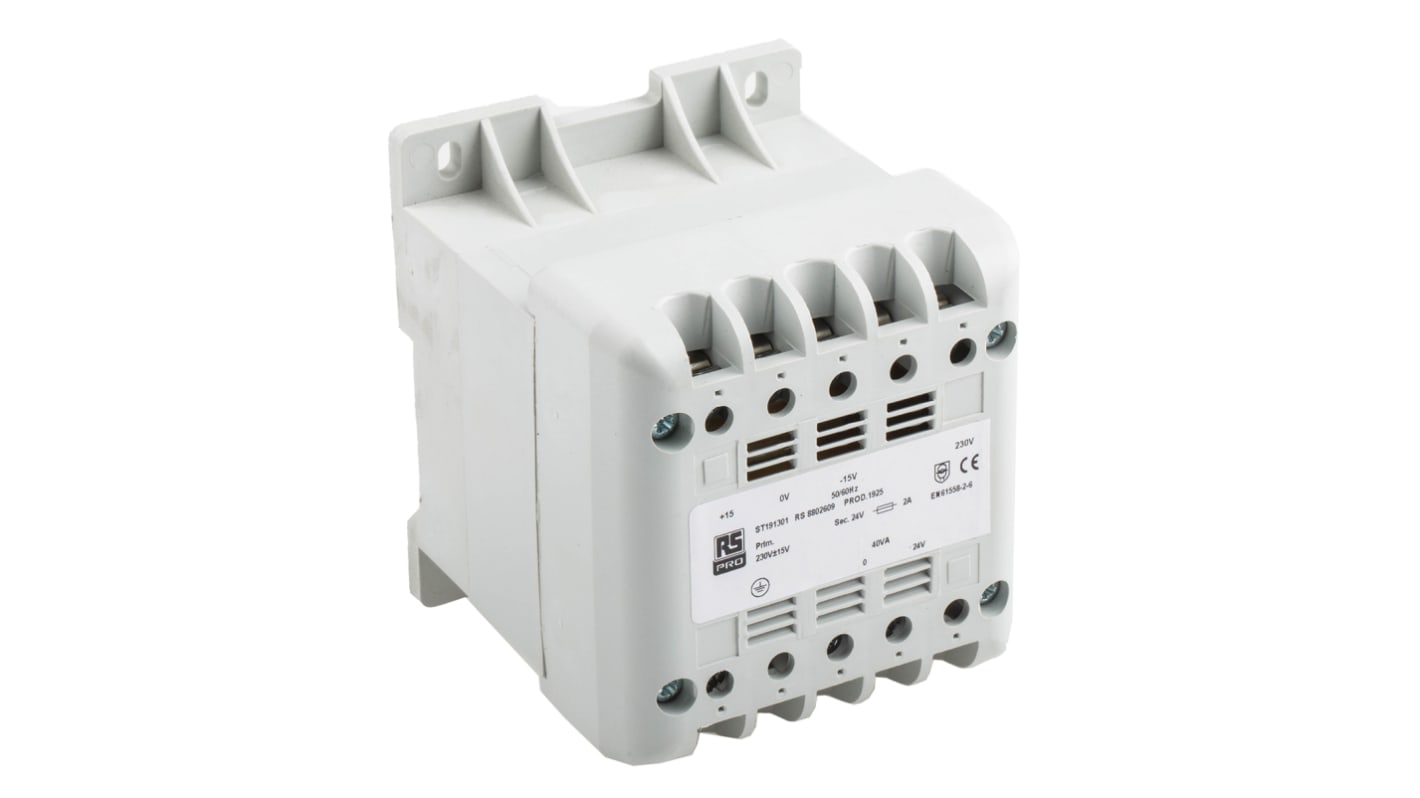

RS PRO 400 VA DIN Rail Transformer, 230 V, 400 V ac Primary, 24 V, 115 V ac, 12 V Secondary, IECBSEN 615581, ASNZS

모든 DIN Rail Transformers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩177,586.50

Add to Basket
수량 선택 또는 입력
재고있음
  • 71 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 9₩177,586.50
10 - 49₩170,488.50
50 +₩140,322.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
880-2609
Distrelec 제품 번호:
304-05-074
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Primary Voltage

230 V, 400 V ac

Product Type

DIN Rail Transformer

Secondary Voltage

24 V, 115 V ac, 12 V

Mount Type

DIN Rail

Number of Outputs

2

Length

136mm

Width

90mm

Power

400VA

Depth

95mm

Minimum Operating Frequency

50Hz

Maximum Operating Frequency

60Hz

Weight

1.5kg

Standards/Approvals

IECBSEN 615581, ASNZS 61558.1, RoHS, ASNZS 61558..6, CE, IECBSEN 615586, ASNZS 61558..4, IECBSEN 615584

Maximum Operating Temperature

130°C

COO (Country of Origin):
PL

RS PRO 40 VA Panel Mount Transformer, 230 V AC Primary, 24 V AC Secondary


Use this panel mount transformer from RS PRO to isolate electrical appliances from the mains power supply. Transformers are used in a wide range of industrial environments, from factories to building sites, to protect against electrical overload and reduce the risk of electric shocks.

With a weight of only 1.5 kg, this transformer is lightweight and compact enough to be transported around worksites. The sturdy housing is IP21 rated for protection against condensation and objects larger than 12 mm. Panel mounted, you can fix it to an equipment panel or external enclosure with the minimum of effort.

As part of the quality RS PRO series, this product has been stringently tested for safety and consistency. It also conforms to the EN 61558-1 standard for safe power transformers and power supplies.

Features and Benefits


• Panel mount transformer

• Primary voltage rating of 230 V AC

• Secondary voltage rating of 24 V AC

• Power rating of 40 VA

• Mounted by DIN rail

• Dimensions of 106 mm (L) x 90 mm (W) x 95 mm (D)

• Minimum operating frequency of 50 Hz

• Maximum operating frequency of 60 Hz

• Maximum temperature of +130°C

• Weight of 1.5 kg

• IP21 rated for protection against condensation, objects over 12 mm

• Meets standard EN 61558-1 for safe power transformers and power supplies

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
