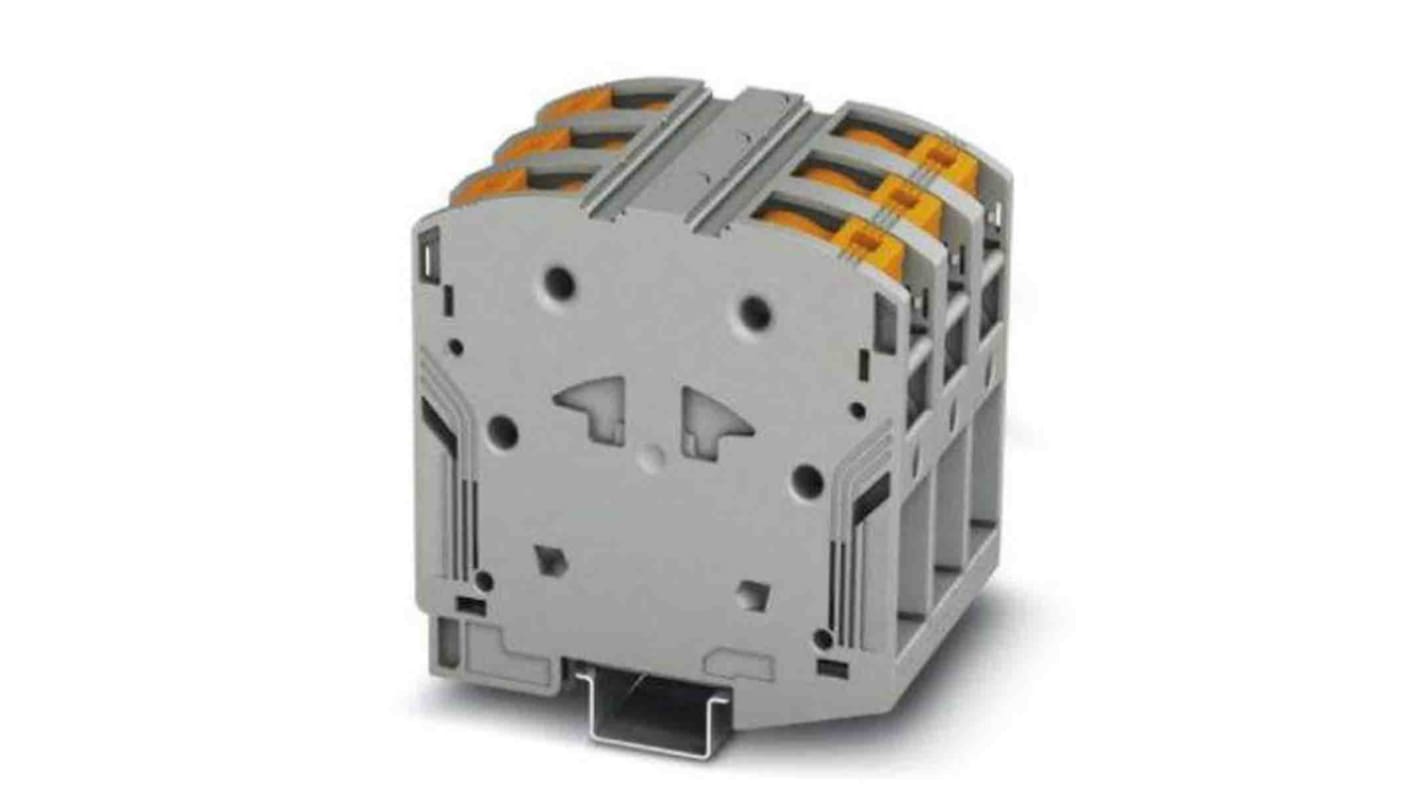

Phoenix Contact 3260109 PTPOWER 95 Series Non-Fuse DIN Rail Terminal Grey, 25mm², 95 mm², 1-Level, Screw
- RS 제품 번호:
- 201-6503
- 제조사 부품 번호:
- 3260109
- 제조업체:
- Phoenix Contact
Subtotal (3 units, in packs of 3)*
₩513,540.00
제조사가 재고 비축중
- 2026년 10월 05일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 3 + | ₩171,180.00 | ₩513,540.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 201-6503
- 제조사 부품 번호:
- 3260109
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Colour | Grey | |
| Product Type | Non-Fuse DIN Rail Terminal | |
| Sub Type | High Current | |
| Number of Positions | 3 | |
| Number of Levels | 1 | |
| Voltage | 1500V ac | |
| Series | PTPOWER 95 | |
| Minimum Wire Size AWG | 4AWG | |
| Cable CSA | 25mm², 95mm² | |
| Maximum Wire Size AWG | 4AWG | |
| Fused | No | |
| Terminal Block Current | 232A | |
| Minimum Operating Temperature | -60°C | |
| Termination Type | Screw | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | Bureau Veritas, CSA, cUL, cULus, DNV GL, EAC, IEC 60947-7-1, UL | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Colour Grey | ||
Product Type Non-Fuse DIN Rail Terminal | ||
Sub Type High Current | ||
Number of Positions 3 | ||
Number of Levels 1 | ||
Voltage 1500V ac | ||
Series PTPOWER 95 | ||
Minimum Wire Size AWG 4AWG | ||
Cable CSA 25mm², 95mm² | ||
Maximum Wire Size AWG 4AWG | ||
Fused No | ||
Terminal Block Current 232A | ||
Minimum Operating Temperature -60°C | ||
Termination Type Screw | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals Bureau Veritas, CSA, cUL, cULus, DNV GL, EAC, IEC 60947-7-1, UL | ||
The Phoenix high current terminal block has quick and easy connection which is possible through large conductors. The terminal block is characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors.
Compact design
Time saving
Degree of pollution 3
Overvoltage category III
Insulating material group I
Ambient temperature -60 °C to 85 °C.
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
