FTDI Chip, VPROG Straight 48 Way, Through Hole Closed DIL Socket, 45mA

모든 DIL Sockets 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
552-627
제조사 부품 번호:
VPROG-1-S-LQFP48
제조업체:
FTDI Chip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

FTDI Chip

Product Type

DIL Socket

Number of Contacts

48

Mount Type

Through Hole

Current

45mA

Voltage

5 V

Frame Type

Closed

Orientation

Straight

Minimum Operating Temperature

-40°C

Termination Type

Solder

Maximum Operating Temperature

85°C

Standards/Approvals

No

Series

VPROG

COO (Country of Origin):
CN

VPROG-1 Vinculum Host Controller Programmer


The VPROG-1 can be used to program either individual Vinculum Host Controller devices or Vinculum Host Controller devices on Vinculum VNC1L- 1A evaluation boards.

USB controlled and powered

Quick and easy programming of individual Vinculum host controller devices

Quick and easy programming of VDIP host controller prototyping modules

Quick and easy programming of ganged VPROG-1 (up to 10) programmers

Easy to use VNC_PROG software

Visual indication of programming progress and status using LEDs

The VPROG-1 programmer requires either a VPROG-1-S-LQFP48 or a VPROG-1-S-ZIF40 adaptor connected to it to allow programming of the Vinculum host controller devices.

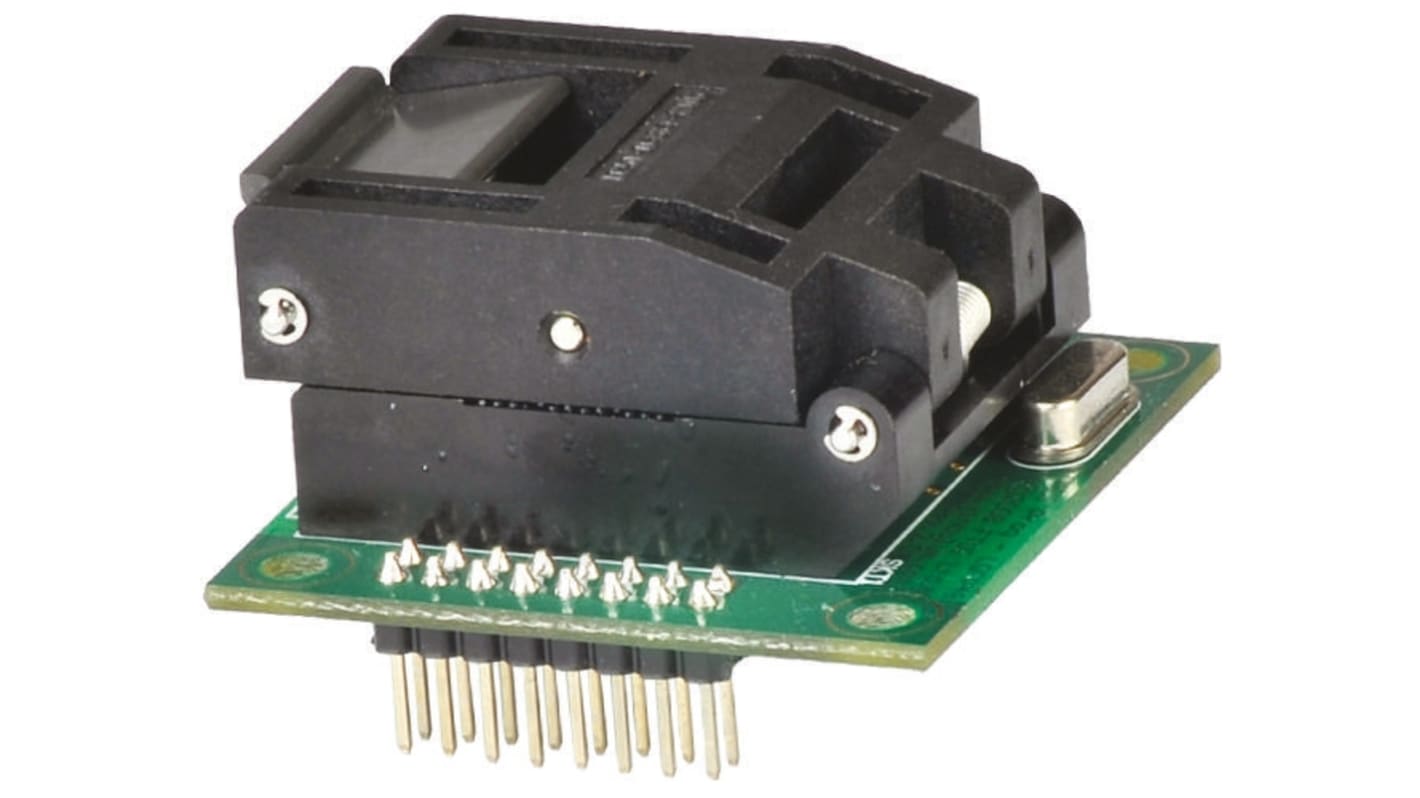

VPROG-1-S-LQFP48s Adaptor


This is used to program individual Vinculum host controller devices.

VPROG-1-S-ZIF40 Adaptor


This is used to program Vinculum host controller devices used on the VDIP1 and VDIP2 modules.
