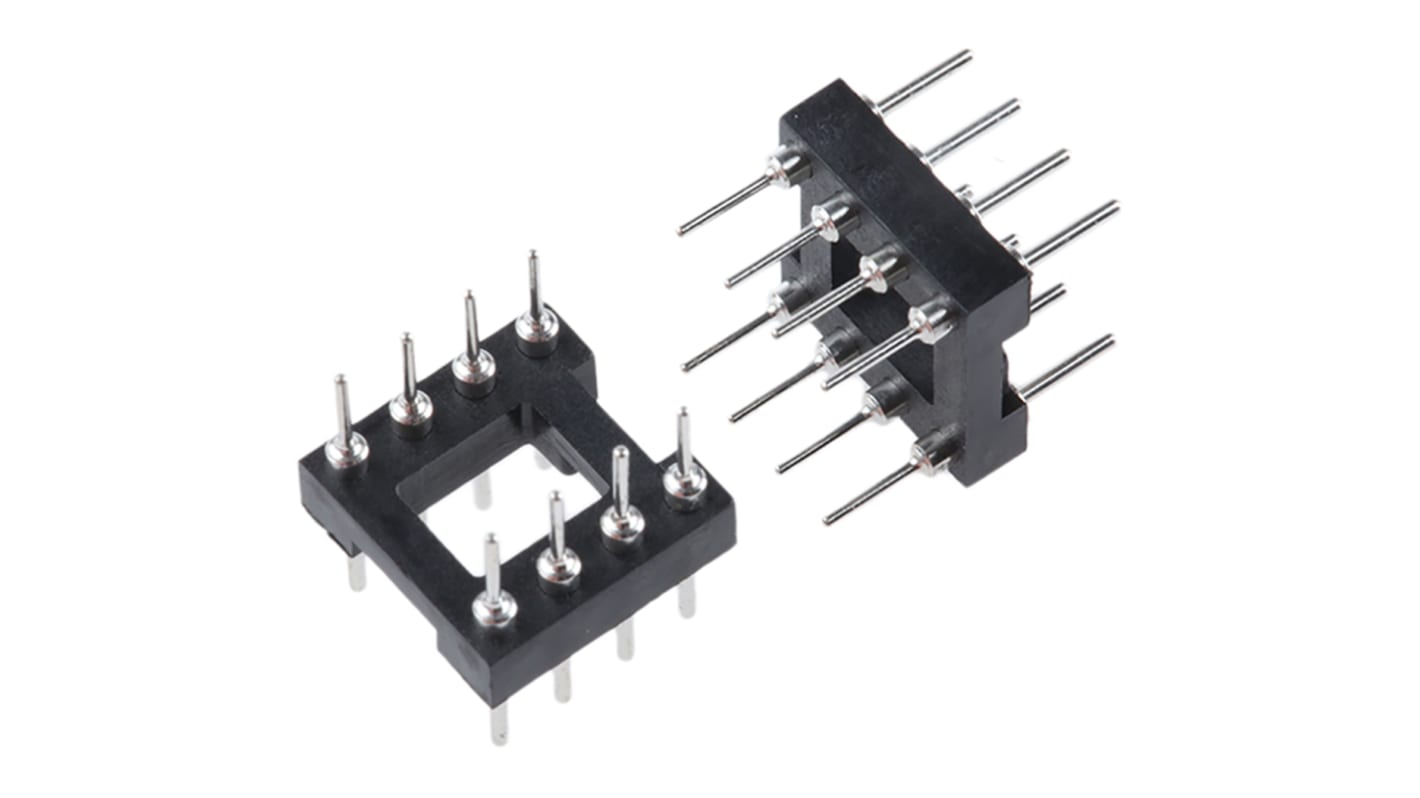

E-TEC, POS/POO/PCL 2.54 mm Pitch,Through Hole Mount DIL Header
- RS 제품 번호:
- 615-5320
- 제조사 부품 번호:
- POS-308-S037-99
- 제조업체:
- E-TEC
대량 구매 할인 기용 가능
Subtotal (1 tube of 50 units)*
₩74,139.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
Tube(s) | Per Tube | 한팩당* |
|---|---|---|
| 1 - 24 | ₩74,139.00 | ₩1,482.00 |
| 25 - 99 | ₩71,175.00 | ₩1,423.50 |
| 100 + | ₩68,211.00 | ₩1,365.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 615-5320
- 제조사 부품 번호:
- POS-308-S037-99
- 제조업체:
- E-TEC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | E-TEC | |
| Product Type | DIL Header | |
| Pitch | 2.54mm | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Through Hole | |
| Housing Material | Polybutylene Terephthalate, Plastic | |
| Row Pitch | 7.62mm | |
| Minimum Operating Temperature | 2°C | |
| Pin Type | Standard | |
| Number of Rows | 2 | |
| Length | 10.1mm | |
| Standards/Approvals | No | |
| Width | 8.15mm | |
| Series | POS/POO/PCL | |
| 모두 선택 | ||
|---|---|---|
브랜드 E-TEC | ||
Product Type DIL Header | ||
Pitch 2.54mm | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Through Hole | ||
Housing Material Polybutylene Terephthalate, Plastic | ||
Row Pitch 7.62mm | ||
Minimum Operating Temperature 2°C | ||
Pin Type Standard | ||
Number of Rows 2 | ||
Length 10.1mm | ||
Standards/Approvals No | ||
Width 8.15mm | ||
Series POS/POO/PCL | ||
- COO (Country of Origin):
- CH
Through Headers
Tin plated through headers, suitable for interconnecting two PCBs. They can be used with appropriate DIL socket to form a plug and socket pair, or can be directly soldered to the PCB.
Inner contact material: Tin plated beryllium copper
Outer pin material: Tin plated brass
Current rating 3A
100 Cycles (Contact Life)
Insulation Resistance: 5 x 109Ω (at 500Vdc)
Operating Temperature -65°C to +175°C
Flammability UL 94 V-0
