Si8621BB-B-IS Skyworks Solutions Inc, 2-Channel Digital Isolator 150 Mbps, 2.5 kVrms, 2.5/5.5 V, 8-Pin SOIC
- RS 제품 번호:
- 823-2198
- 제조사 부품 번호:
- Si8621BB-B-IS
- 제조업체:
- Skyworks Solutions Inc

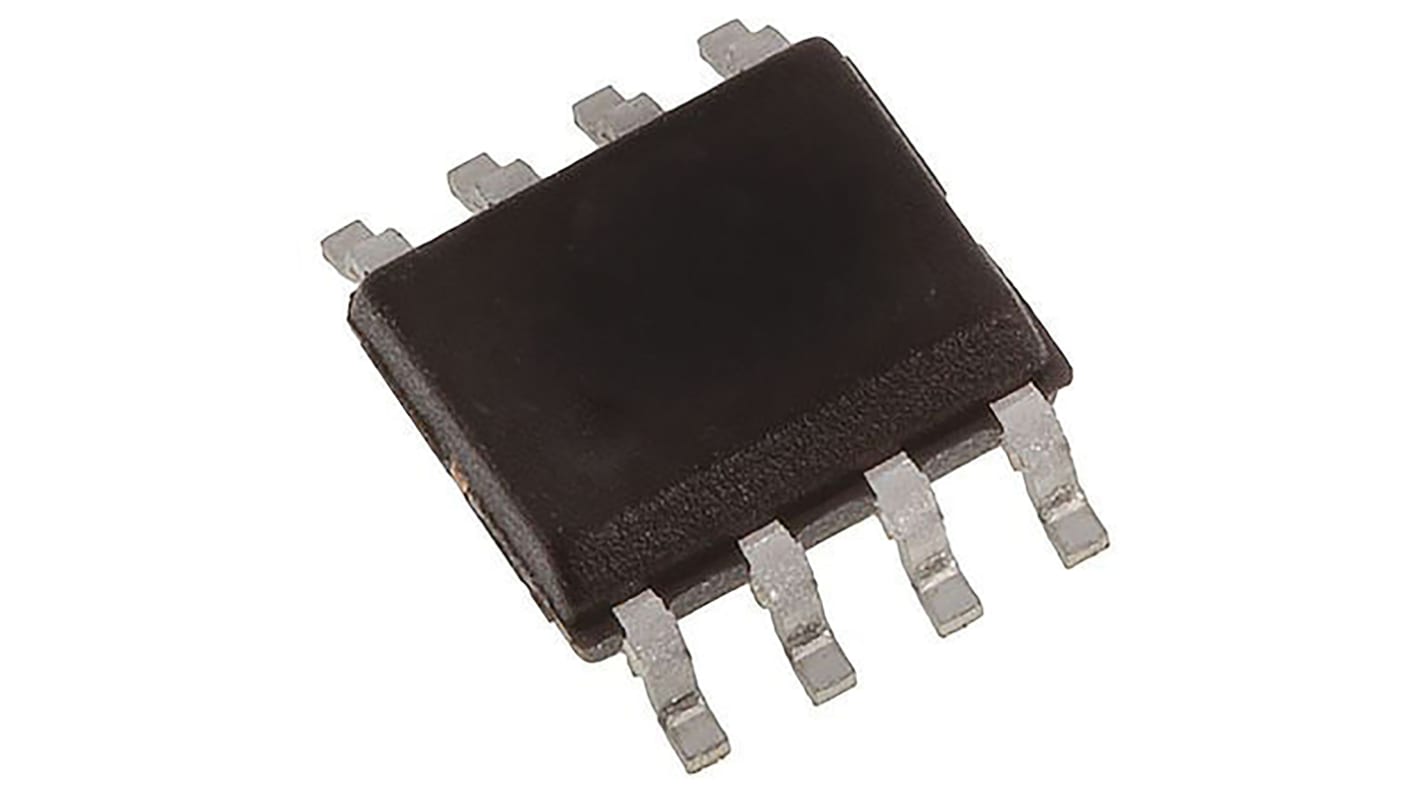

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩17,728.40
일시적 품절
- 2026년 2월 09일 부터 1,425 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 20 | ₩3,545.68 | ₩17,728.40 |
| 25 - 45 | ₩3,455.44 | ₩17,277.20 |
| 50 + | ₩3,402.80 | ₩17,014.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 823-2198
- 제조사 부품 번호:
- Si8621BB-B-IS
- 제조업체:
- Skyworks Solutions Inc
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Skyworks Solutions Inc | |
| Maximum Data Rate | 150Mbps | |
| Number of Channels | 2 | |
| Product Type | Digital Isolator | |
| Package Type | SOIC | |
| Power Dissipation | 150mW | |
| Data Rate | 150Mbps | |
| Maximum Input Current | 3.8mA dc | |
| Propagation Delay Time | 14ns | |
| Isolation Voltage | 2.5kVrms | |
| Rise Time | 4ns | |
| Number of Pins | 8 | |
| Mount Type | Surface | |
| Supply Voltage | 2.5/5.5 V | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Depth | 1.55mm | |
| Width | 4 mm | |
| Length | 5mm | |
| Standards/Approvals | IEC 61010-1, VDE IEC 60747-5-2, CQC GB4943.1, IEC 60601-1, CSA Notice 5A, UL 1577, EN60950-1, IEC 60950-1 | |
| Series | Si8610/20/21/22 | |
| Automotive Standard | AEC-Q100 | |
| Package Style | SOIC | |
| 모두 선택 | ||
|---|---|---|
브랜드 Skyworks Solutions Inc | ||
Maximum Data Rate 150Mbps | ||
Number of Channels 2 | ||
Product Type Digital Isolator | ||
Package Type SOIC | ||
Power Dissipation 150mW | ||
Data Rate 150Mbps | ||
Maximum Input Current 3.8mA dc | ||
Propagation Delay Time 14ns | ||
Isolation Voltage 2.5kVrms | ||
Rise Time 4ns | ||
Number of Pins 8 | ||
Mount Type Surface | ||
Supply Voltage 2.5/5.5 V | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Depth 1.55mm | ||
Width 4 mm | ||
Length 5mm | ||
Standards/Approvals IEC 61010-1, VDE IEC 60747-5-2, CQC GB4943.1, IEC 60601-1, CSA Notice 5A, UL 1577, EN60950-1, IEC 60950-1 | ||
Series Si8610/20/21/22 | ||
Automotive Standard AEC-Q100 | ||
Package Style SOIC | ||
Si862x Series 2-channel Digital Isolators
The Si862x Series of two-channel digital isolators, based on the proprietary capacitive isolation technology, enable low propagation delay and skew, low emissions, high noise immunity and high reliability for a long lifecycle.
Digital Isolators, Silicon Laboratories
The Silicon Labs broad range of Digital Isolation products offers significant improvements over older isolation technologies such as opto-couplers. They demonstrate lower power consumption, greater reliability and higher performance, and are generally smaller in size and lower in cost. These CMOS-based devices exhibit stable operating characteristics over a wide temperature range and do not suffer from the lifespan limitations of opto-coupled devices.
