Si8641AB-B-IS Skyworks Solutions Inc, 4-Channel Digital Isolator 1 Mbps, 2.5 kVrms, 5.5 V, 16-Pin SOIC

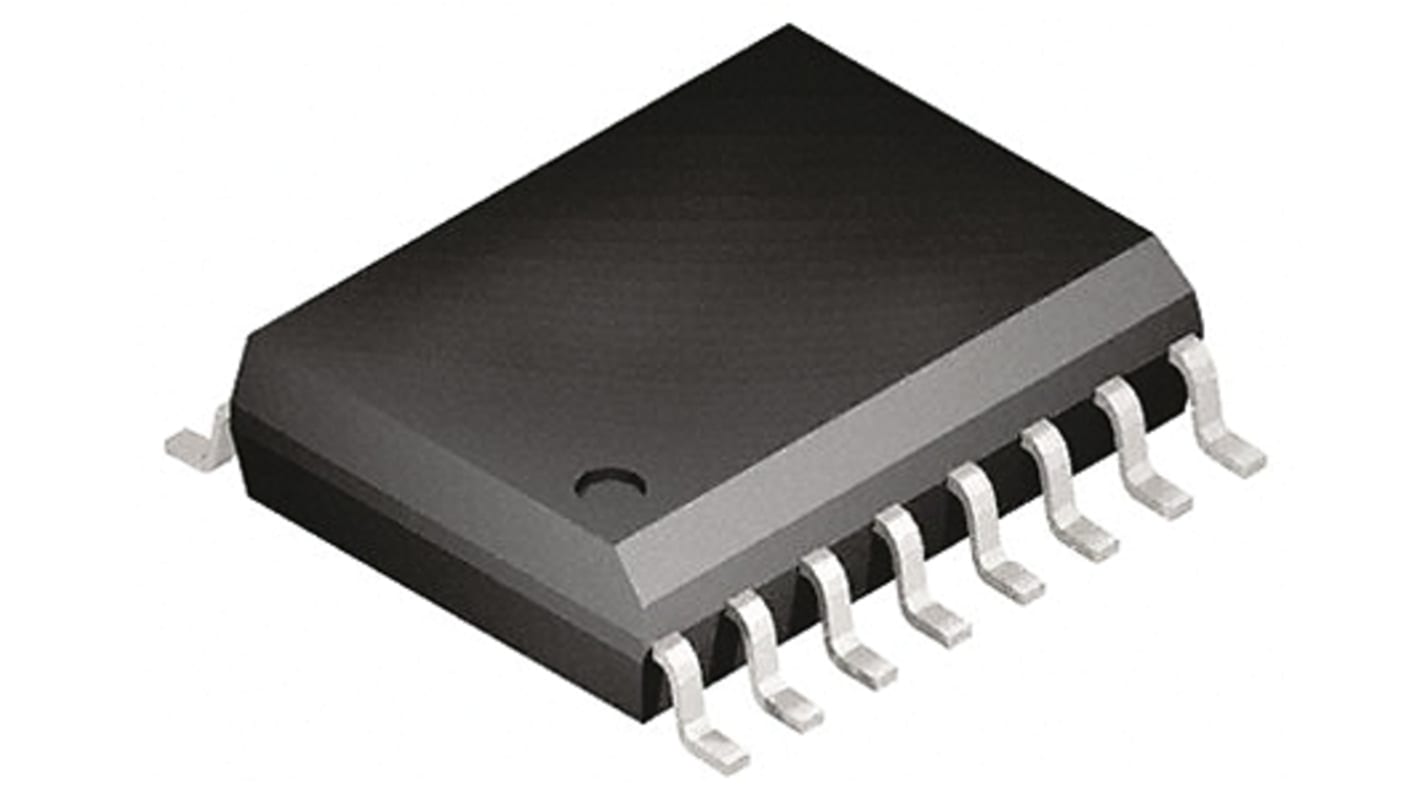

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Digital Isolator ICs 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩30,681.60

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 20 개 unit(s)이 배송 준비 됨
수량
한팩당
한팩당*
5 - 10₩6,136.32₩30,681.60
15 - 20₩5,982.16₩29,910.80
25 +₩5,888.16₩29,440.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

포장 옵션
RS 제품 번호:
823-2016
제조사 부품 번호:
Si8641AB-B-IS
제조업체:
Skyworks Solutions Inc
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Skyworks Solutions Inc

Number of Channels

4

Maximum Data Rate

1Mbps

Product Type

Digital Isolator

Package Type

SOIC

Data Rate

1Mbps

Power Dissipation

415mW

Propagation Delay Time

35ns

Maximum Input Current

7.8mA dc

Isolation Voltage

2.5kVrms

Rise Time

4ns

Number of Pins

16

Mount Type

Surface

Supply Voltage

5.5 V

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Depth

1.25mm

Series

Si86

Length

9.9mm

Width

3.9 mm

Standards/Approvals

IEC, UL, CSA

Package Style

SOIC

Automotive Standard

AEC-Q100

Si864x Series 4-channel Digital Isolators


The Si864x Series of four-channel digital isolators, based on the proprietary capacitive isolation technology, enable low propagation delay and skew, low emissions, high noise immunity and high reliability for a long lifecycle.

High Speed

Low Power

Up to 5000 Vrms Isolation

High Electromagnetic Immunity

Digital Isolators, Silicon Laboratories


The Silicon Labs broad range of Digital Isolation products offers significant improvements over older isolation technologies such as opto-couplers. They demonstrate lower power consumption, greater reliability and higher performance, and are generally smaller in size and lower in cost. These CMOS-based devices exhibit stable operating characteristics over a wide temperature range and do not suffer from the lifespan limitations of opto-coupled devices.
