SI8380S-IU Skyworks Solutions Inc, 8-Channel Digital Isolator 2 Mbps, 2500 Vrms, 2.25/5.5 V, 20-Pin QSOP

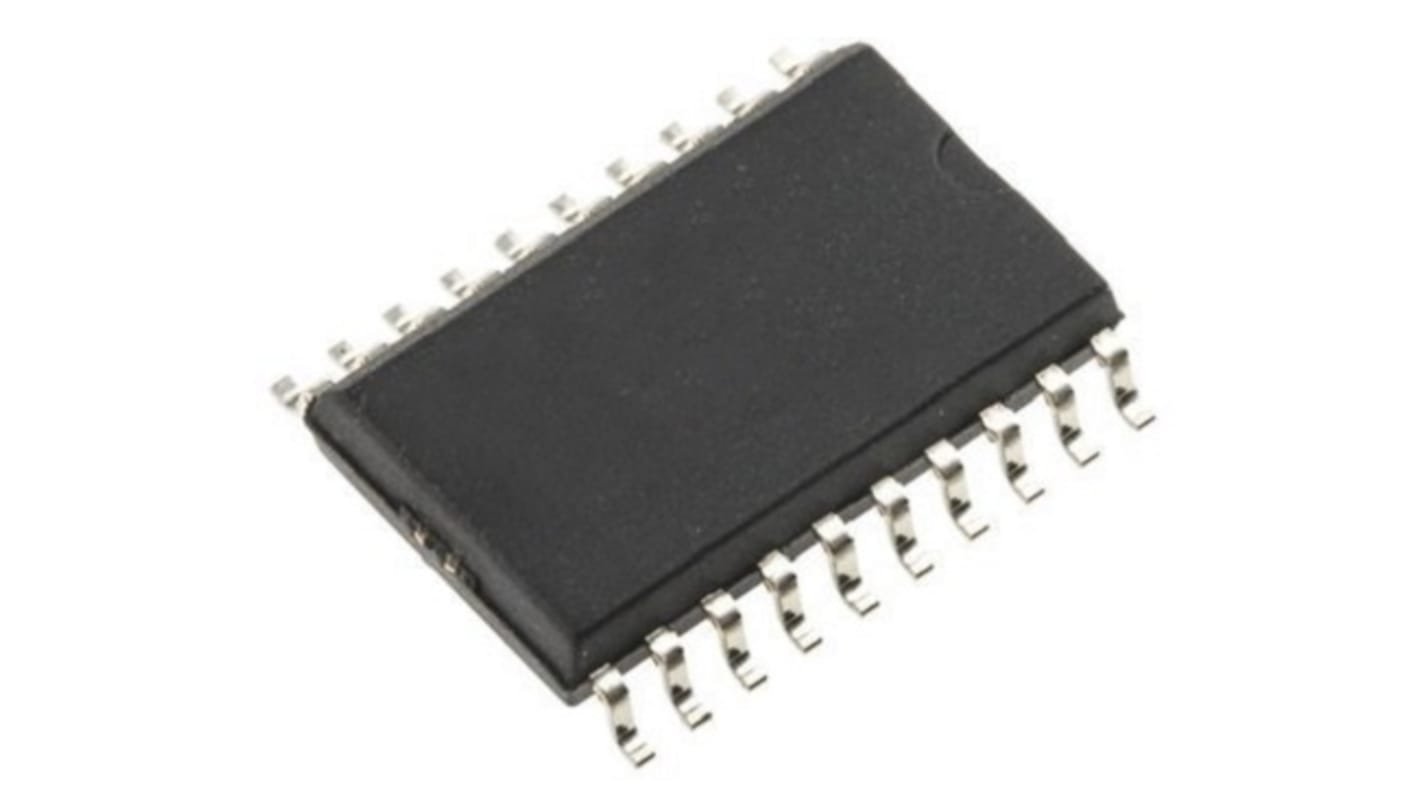

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Digital Isolator ICs 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 tube of 56 units)*

₩348,675.60

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 6월 22일 부터 448 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
Per Tube*
56 - 56₩6,226.35₩348,663.90
112 - 224₩5,976.75₩334,719.45
280 - 448₩5,797.35₩324,673.05
504 +₩5,682.30₩318,187.35

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
273-2010
제조사 부품 번호:
SI8380S-IU
제조업체:
Skyworks Solutions Inc
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Skyworks Solutions Inc

Maximum Data Rate

2Mbps

Product Type

Digital Isolator

Number of Channels

8

Package Type

QSOP

Data Rate

2Mbps

Maximum Input Current

1mA

Isolation Voltage

2500Vrms

Number of Pins

20

Supply Voltage

2.25/5.5 V

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Standards/Approvals

CSA 5A, IEC 62368-1, IEC 60950-1, CQC, UL 1577, GB4943.1, VDE 0884-10

Series

Si838X

Automotive Standard

No

Package Style

QSOP

COO (Country of Origin):
TH
The Skyworks Solutions Inc Si838x provides eight input channels Ideal for 24 V digital logic commonly used for industrial applications. These channels can either sink or source current and feature integrated safety rated isolation. In combination with a few external components, this provides compliance to IEC 61131-2 switch types 1, 2, or 3. The input Interface is based on skyworks ground breaking CMOS based LED emulator technology which enables the bipolar capability with no VDD required on the field side. The output Interface from the Si838x device allows for low power operation with 2.25 V compliance.

Bipolar digital Interface with 24 V sinking or sourcing inputs

Eight total inputs in one package

High data rates of up to 2 Mbps

Safety rated integrated isolation of 2.5 kVRMS

Low input current of 1 mA typical

No VDD required on field side

High electromag
