SEGGER J-Trace PRO for Cortex M

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩3,566,811.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 5 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩3,566,811.20
5 +₩3,210,137.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
131-1324
제조사 부품 번호:
8.18.00 J-Trace PRO for Cortex M
제조업체:
SEGGER
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

SEGGER

For Use With

Flash microcontrollers

Product Type

Programmer

Kit Name

J-Trace PRO for Cortex M

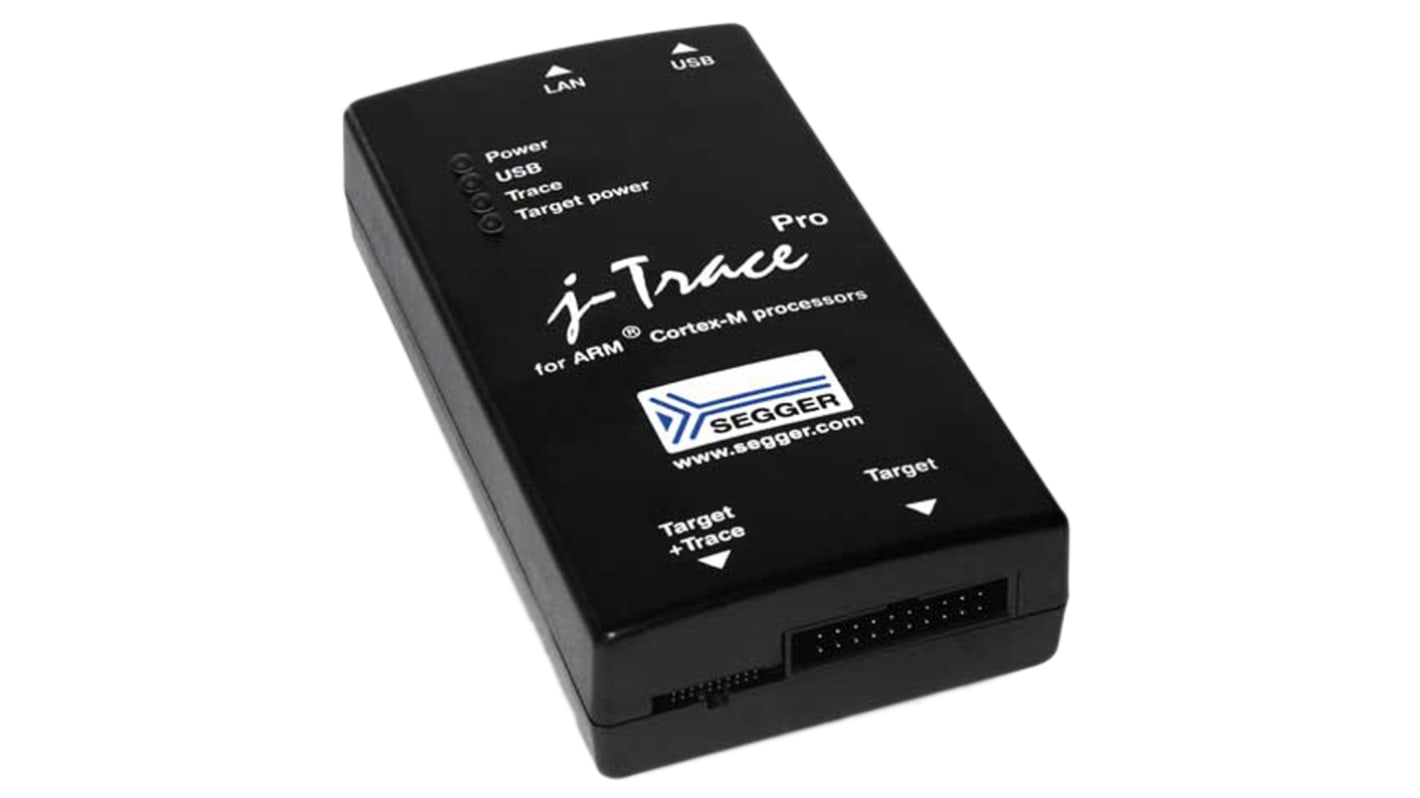

J-Trace PRO Probe


J-Trace PRO for Cortex-M enables continuous streaming trace via its Gigabit Ethernet interface, lifting the limitations of internal buffers and slow data transmission. J-Trace PRO can capture complete traces over long periods - thereby enabling the recording of infrequent, hard-to-reproduce bugs. It also offers extended trace features, such as code coverage and execution profiling.

Supported Processors


• ARM Cortex-M0/M0+/M1/M3/M4/M7

Features


• Supports Streaming Trace (trace data sent to PC/debugger in real time, unlimited trace buffer)
• Full J-Link functionality
• Gigabit Ethernet interface via RJ45 socket
• USB 2.0 HS interface (480MBit/s)
• Target interface: JTAG/SWD 20-pin, JTAG/SWD + Trace 19-pin
• JTAG speed: 50MHz
• Supports Cortex-M devices up to 150MHz ETM trace clock (300MHz CPU clock)
• Supports ARM Embedded Trace Macrocell (ETM)
• Supports ARM Embedded Trace Buffer (ETB)
• Supports ARM Micro Trace Buffer (MTB)
• 64MB on-board trace buffer for legacy one-shot tracing mode
• Dimensions: 123 x 68 x 30mm
• Free software updates, 2 years of support

Supplied with

Ethernet cable, USB cable, 0.05in 20-pin ribbon trace cable, 0.1in 20-pin ribbon cable
